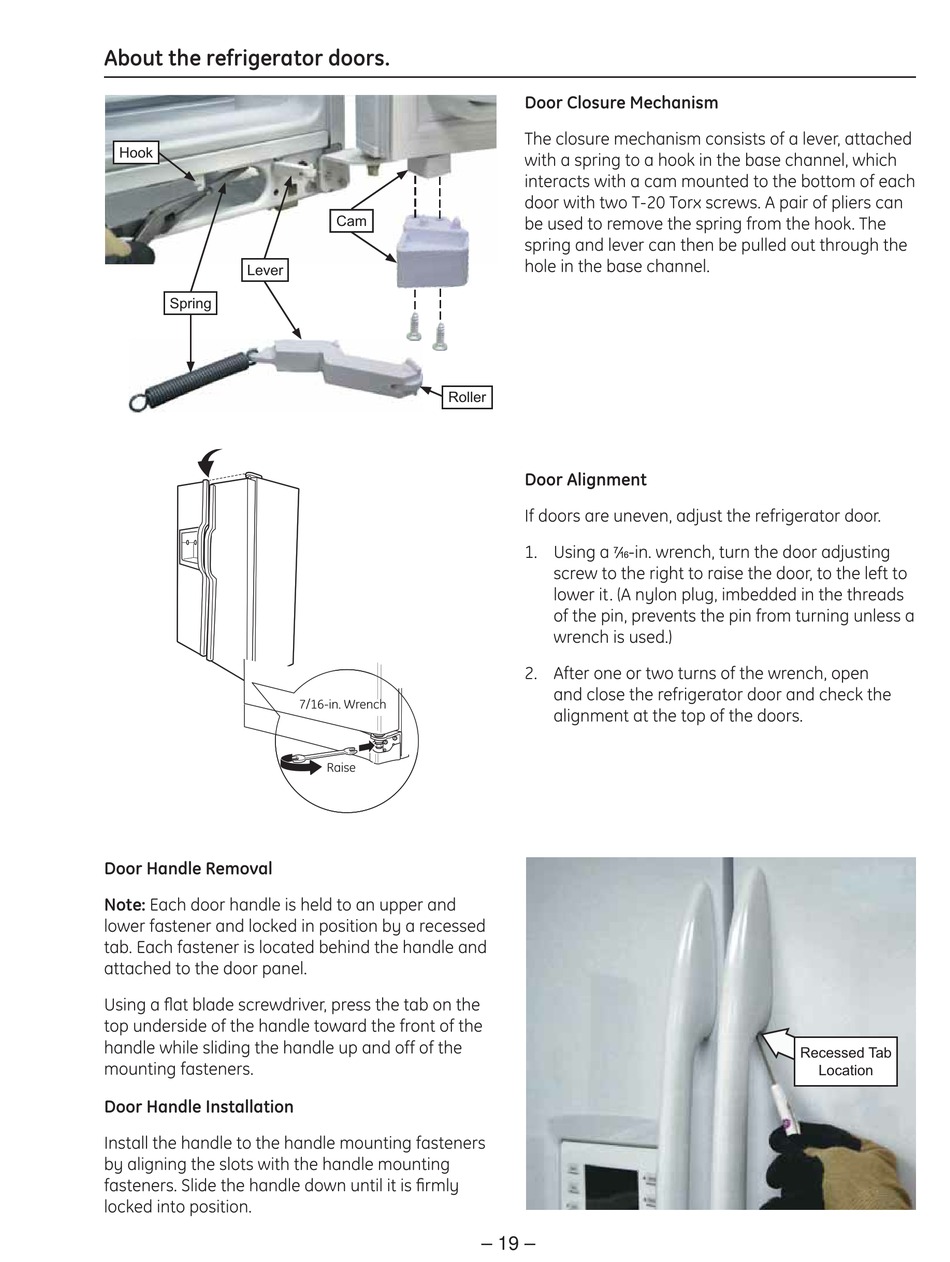

About the refrigerator doors.
Hook
Lever
Spring
Door Handle Removal
Note: Each door handle is held to an upper and
lower fastener and locked in position by a recessed
tab. Each fastener is located behind the handle and
attached to the door panel.
Using a fl at blade screwdriver, press the tab on the
top underside of the handle toward the front of the
handle while sliding the handle up and off of the
mounting fasteners.
Door Handle Installation
Install the handle to the handle mounting fasteners
by aligning the slots with the handle mounting
fasteners. Slide the handle down until it is fi rmly
locked into position.
Cam
Roller
7/16-in. Wrench
7/16Wrench
Raise Raise
Door Closure Mechanism
The closure mechanism consists of a lever, attached
with a spring to a hook in the base channel, which
interacts with a cam mounted to the bottom of each
door with two T-20 Torx screws. A pair of pliers can
be used to remove the spring from the hook. The
spring and lever can then be pulled out through the
hole in the base channel.
Door Alignment
If doors are uneven, adjust the refrigerator door.
1. Using a -in. wrench, turn the door adjusting
7 /
16
screw to the right to raise the door, to the left to
lower it. (A nylon plug, imbedded in the threads
of the pin, prevents the pin from turning unless a
wrench is used.)
2. After one or two turns of the wrench, open
and close the refrigerator door and check the
alignment at the top of the doors.
