Installation
Before installing the wireless communications equipment, the AXR-NWS GROUP ADDRESS and
GROUP ID DIP switches must be set.
The AXR-NWS can be installed on any flat surface. Avoid installations that place the AXR-NWS
inside an equipment rack where the transmission/reception is hindered. Placing the AXR-NWS
above equipment, with no obstructions to the antenna, is best for peak performance.
Each AXR-NWS is capable of distributing a maximum of 16 Device Addresses, in any
combination, to communicating ViewPoint touch panels.

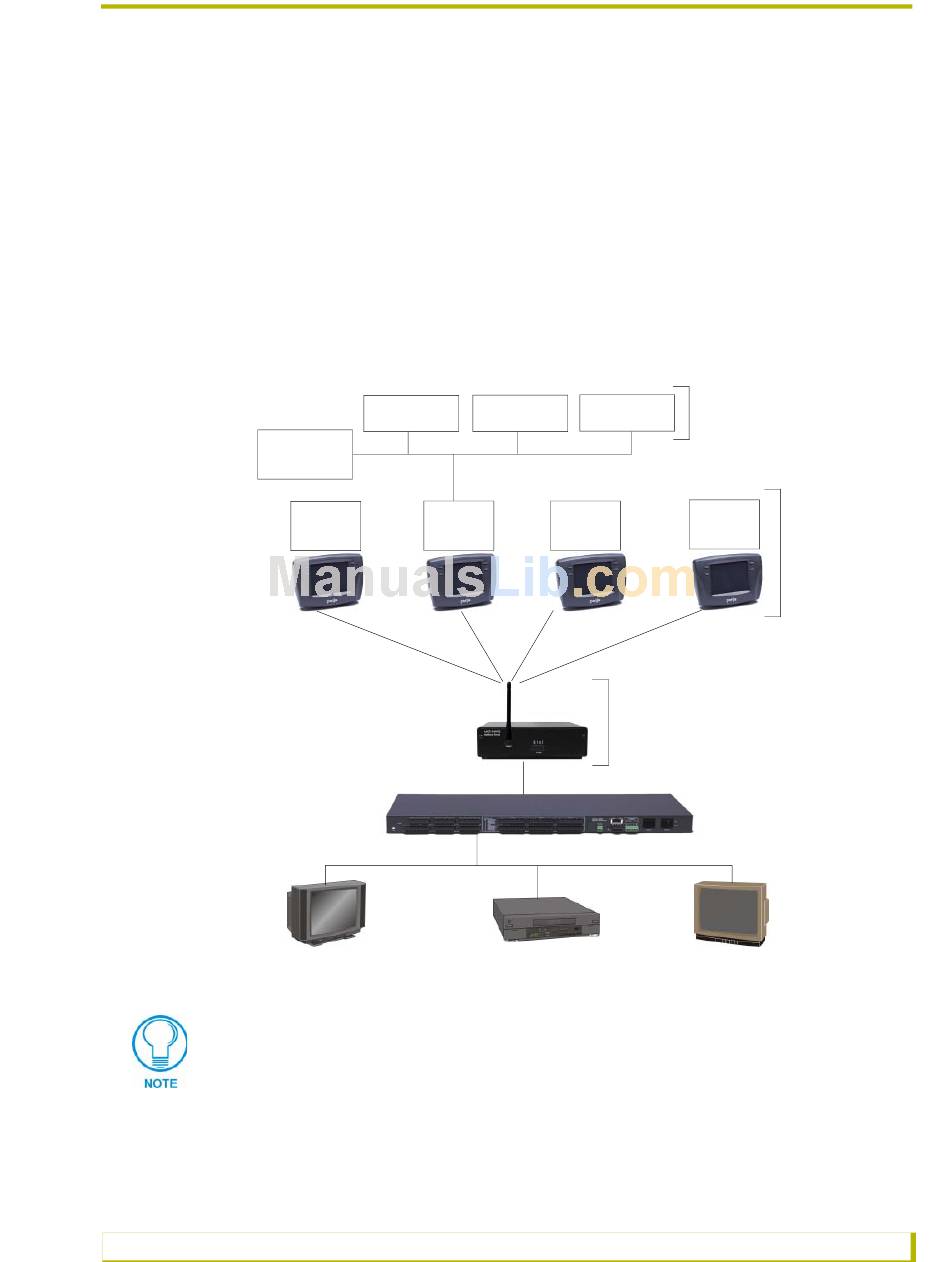

The AXR-NWS allows a maximum control of 1020 channels. An example is shown in FIG. 1.
ViewPoint
(Device #1)
255 channels
ViewPoint
Touch Panels
*16 possible Device Addresses
available to communicating
ViewPoints.
NXI Integrated
Controller
(rear view)
FIG. 1 AXR-NWS control compatibility
The AXR-NWS only appears on the bus when communication with a ViewPoint;
otherwise, it is never visible.
AXR-NWS NetWave Server
Device #2
255 channels
Device
Device
Address
Address
128-131
132-135
Television
Device #3
Device #4
255 channels
255 channels
Device
Address
136-139
GROUP ADDRESS
(1 - 255)
VCR
Installation
255 channels per device
for a max. of 1020 per
touch panel
Device
Address
140-143
GROUP ID
(0 - 15)
Television
3
