Controller
(rear view)

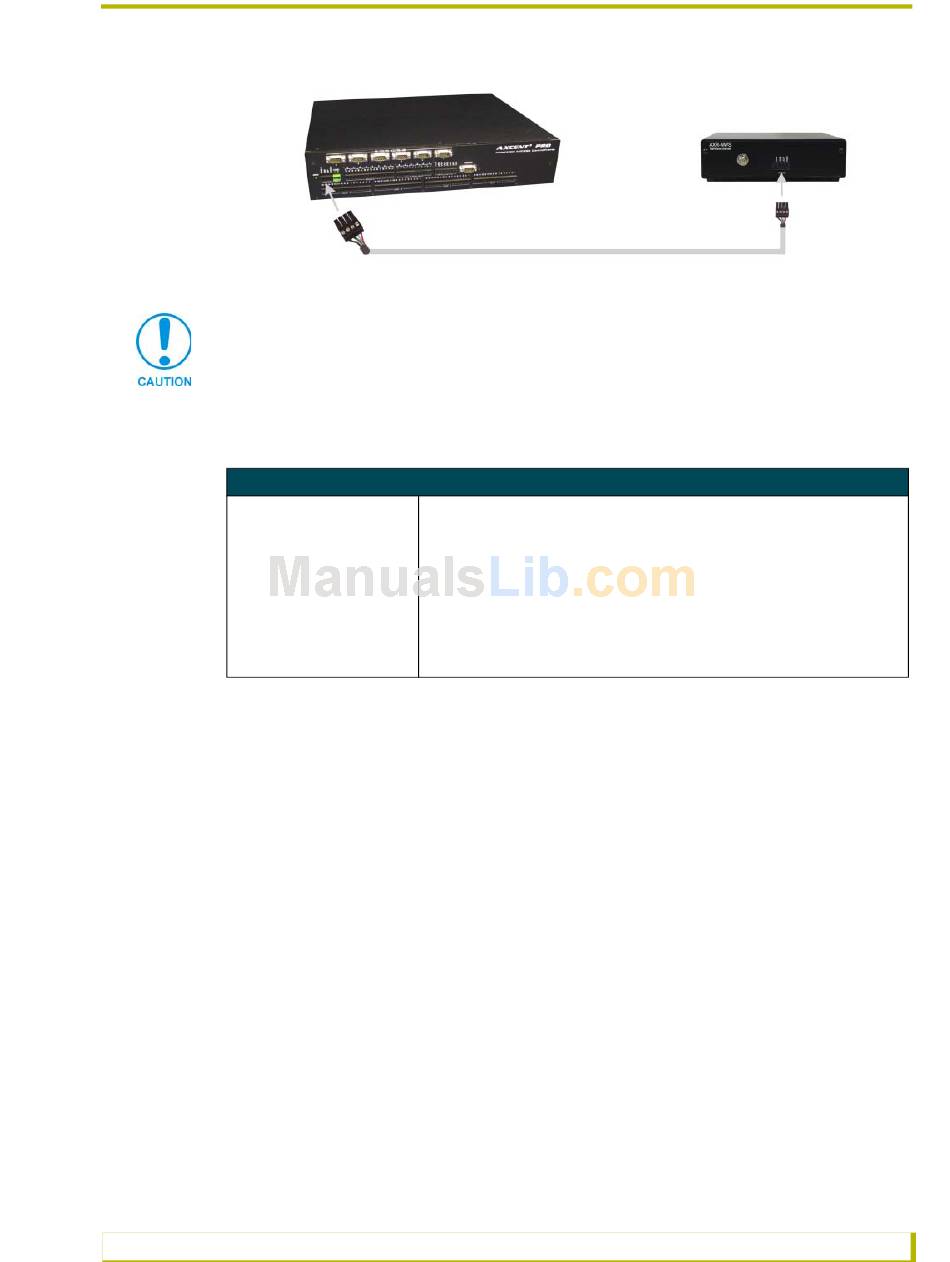

FIG. 7 AXR-NWS connection to a Controller
The AXR-NWS does not support devices which previously used the AXR-WAVES
server. AXR-NWS uses a 2.4 GHz digital spread spectrum to avoid common
problems associated with RF control. However, avoid placing the AXR-NWS
components next to microwave ovens, spread-spectrum, consumer microwave video
link transceivers, projectors using Halide/Xenon lamps, or AXR-WAVES Server
(at least 10 ft. away).
Specifications for the Optional NWA-EXT
NWA-EXT
(External Netware Antenna)
Installing the Optional NWA-EXT External Extended Range
Antenna
1. Unscrew the extended range antenna (that comes shipped with the AXR-NWS) from the rear
coaxial connector on the NWS unit by twisitng the connector is a counter-clockwise direction.
2. Connect the NWA-EXT antenna to the rear of the NWS by inserting the terminal coaxial
connector and twisting it in a clockwise direction.
Verify that the antenna is not being obstructed by any other device or receiving interference
form anothersource.
AXR-NWS NetWave Server
Mini AXlink connector (3.5 mm)
• 6 ft coax with various connectors allow maximum flexibility in placement
• 1/2 wave coaxial dipole
• Frequency: 2.4-2.5 GHz
• Polarization: Vertical
• Nominal Impedence: 50 ohms
• VSWR 1.5:1 max at resonance
• RF Power Handling: 50 watts
• Temperature Range: -40ºC to +85ºC
Installation
AXR-NWS
(rear view)
9
