Outer Bezel Assembly (continued)
4. Depending on the size of your screen, you will have one or two
frame brackets.
a. For screens under 104" wide viewable, attach (1) frame bracket
to the bottom of the screen with (2) #10 x 3/8" pointed BLACK
screws (Figure 6).
(4) #10 X 3/8" Pointed
Black Screws
(2) #10 X 3/8" Pointed
Black Screws
Frame Bracket

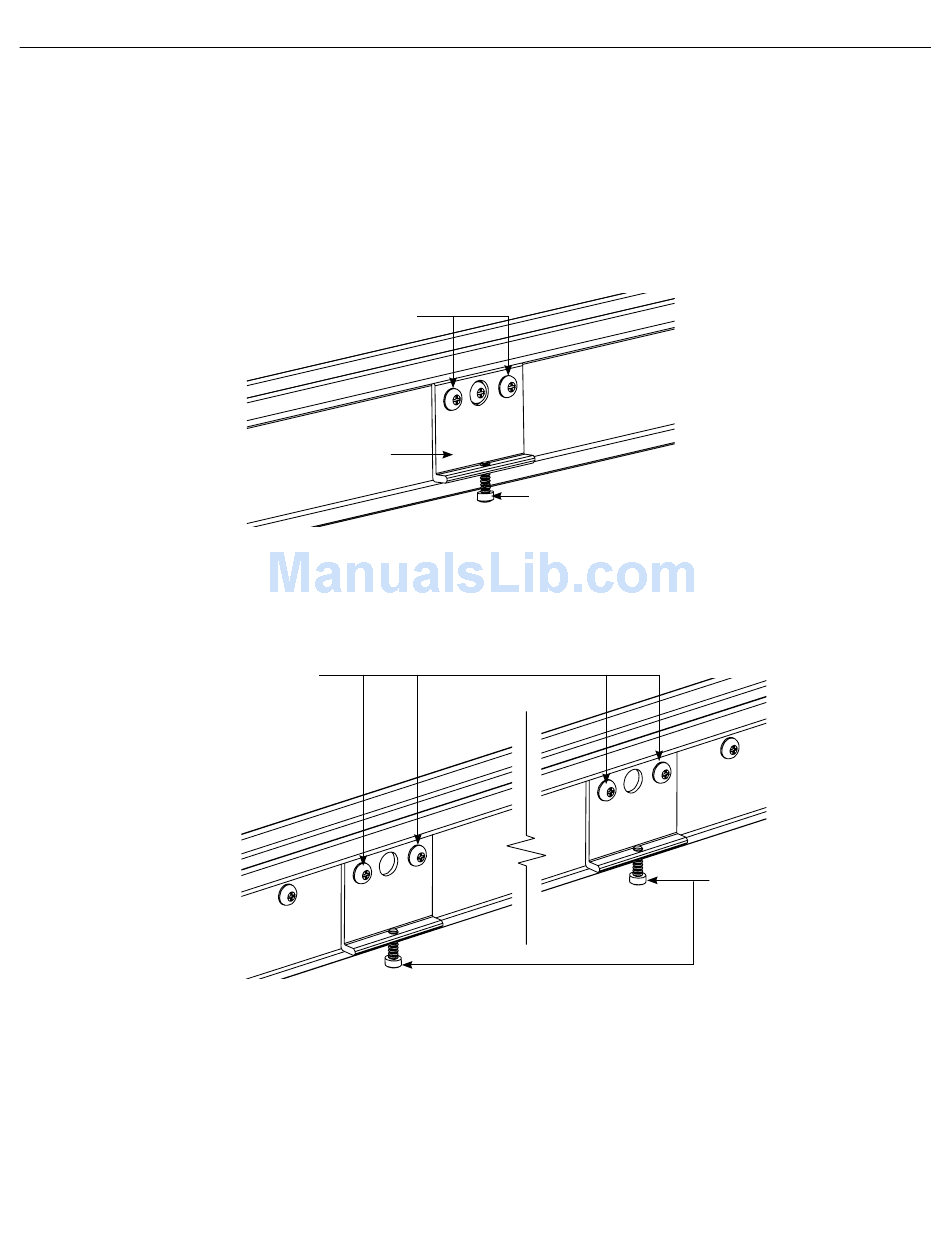

Figure 6 — Screens Under 104" in Viewing Width
Figure 7 — Screens 104" and Over in Viewing Width
b. For screens 104" wide viewable and over, attach (2) frame
brackets If your screen is 104" or over in viewing area width
(Figure 7).
5. Insert 8-32 x 1/2" zinc plated fillister screw into frame bracket(s)
(Figure 6 or 7). Rotate four or five turns only.
8–32 X 1/2" Fillister Screw
8–32 X 1/2" Fillister Screw
