The Da-Lite Difference.
DA-LITE SCREEN COMPANY, INC.
Instruction Book for
3100 North Detroit Street
Post Office Box 137
TensIoned ConTour® eleCTrol®
Warsaw, Indiana 46581-0137
Phone: 574-267-8101
800-622-3737
Fax: 574-267-7804
Toll Free Fax: 877-325-4832
www.da-lite.com
e-mail: info@da-lite.com

Advertisement

Table of Contents
loading

Related Manuals for Da-Lite TENSIONED CONTOUR ELECTROL

Summary of Contents for Da-Lite TENSIONED CONTOUR ELECTROL

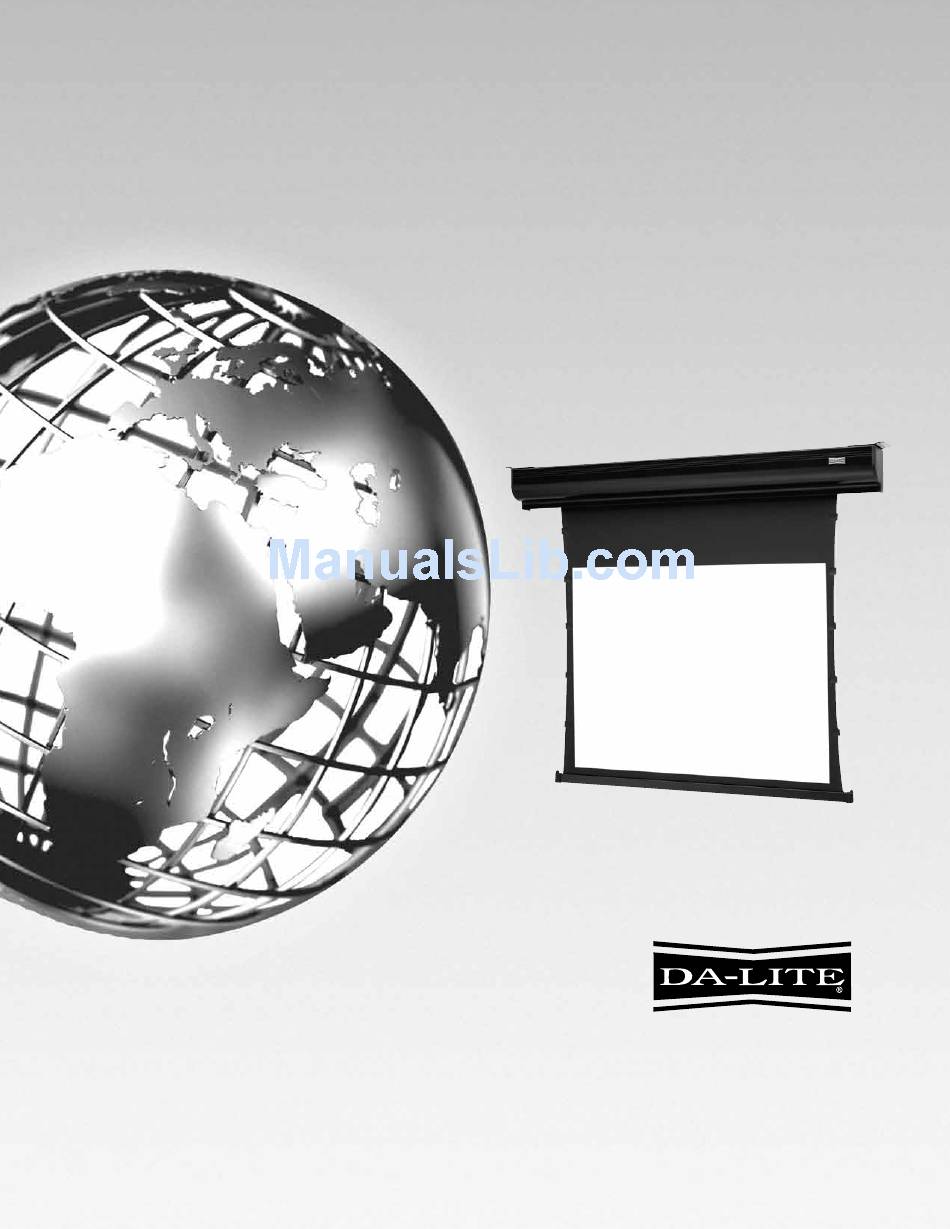

  • Page 1 The Da-Lite Difference. DA-LITE SCREEN COMPANY, INC. Instruction Book for 3100 North Detroit Street Post Office Box 137 TensIoned ConTour® eleCTrol® Warsaw, Indiana 46581-0137 Phone: 574-267-8101 800-622-3737 Fax: 574-267-7804 Toll Free Fax: 877-325-4832 www.da-lite.com e-mail: info@da-lite.com...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your video equipment, basic safety precautions should always be followed, including the following: 1. Read and understand all instructions before using. 2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.

  • Page 3: Installation

    INSTALLATION Carefully unpack screen and remove outer wrapping from 5-11/16" case. Remove the retaining screws (through back of case) from the slat bar before the case is installed. There are three ways to install the Tensioned Contour ® 2-5/16" electrol : Wall mount, Ceiling mount, or Ceiling hook.

  • Page 4: Electrical Installation

    ELECTRICAL INSTALLATION Internal wiring has been completed at the factory. Installer must route power to the wall switch and to the junction box located on the left end of the screen case. standard installation is for a single 120VaC or 240VaC wall switch to control the screen. optional Control units may have been ordered.
  • Page 5 SCREEN AdjUSTMENT FOR 120v SCREENS WITH A BUILT-IN LOW vOLTAGE CONTROL OR vPI 1. locate the wall switch and remove the cover plate from the 3-button wall switch and remove the switch from the junction box. 2. locate the two tactile buttons on the back of the switch. They are square silver with black round buttons. see figure 8 (VPI) or figure 10 (lVC) for diagram.

  • Page 6: Wall Switch

    240 VOLT WIRING DIAGRAM FOR STANDARD blaCk moToR WALL SWITCH: gReen gRound To Case da-lite offers two styles of 240 volt wall switches for standard operation. Please see wiring diagram included in wall switch box gRound–musT be ConneCTed included with screen. To buIldIng gRound...

  • Page 7: Low Voltage Control

    TENSIONEd CONTOUR ELECTROL INSTALLATION ® ® RJ-14 PIN-OUTS RJ-22 PIN-OUTS 120V WIRING DIAGRAM (TAB IS FACING UP) (TAB IS FACING UP) WITH OPTIONAL BUILT-IN +12V BLUE BUS (RP DATA) WHITE BUS (RP DATA) YELLOW LOW VOLTAGE CONTROL RQ DATA GREEN RQ DATA GREEN BLACK...

  • Page 8: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION 1. screen will not operate. (a) Incorrect line voltage. (a) Verify 115-125V (or 220-240V). If insufficient voltage, rewire motor does not hum. incoming electric line. (b) blown fuse. (b) Replace fuse. (c) Tripped circuit breaker. (c) Reset circuit breaker. (d) no power to operating switch (d) Check above.
