OWNER'S MANUAL & OPERATING INSTRUCTIONS
2 INCH
SEMI-TRASH PUMP
1
YEAR
MODEL NUMBER
65525
LIMITED WARRANTY
10006 Santa Fe Springs Road
SAVE THESE INSTRUCTIONS
Santa Fe Springs CA 90670
Important Safety Instructions
USA / 1-877-338-0999
MADE IN CHINA
are included in this manual.
REV 65525-20110516
www.championpowerequipment.com
Advertisement
Table of Contents
Related Manuals for Champion 65525
Summary of Contents for Champion 65525

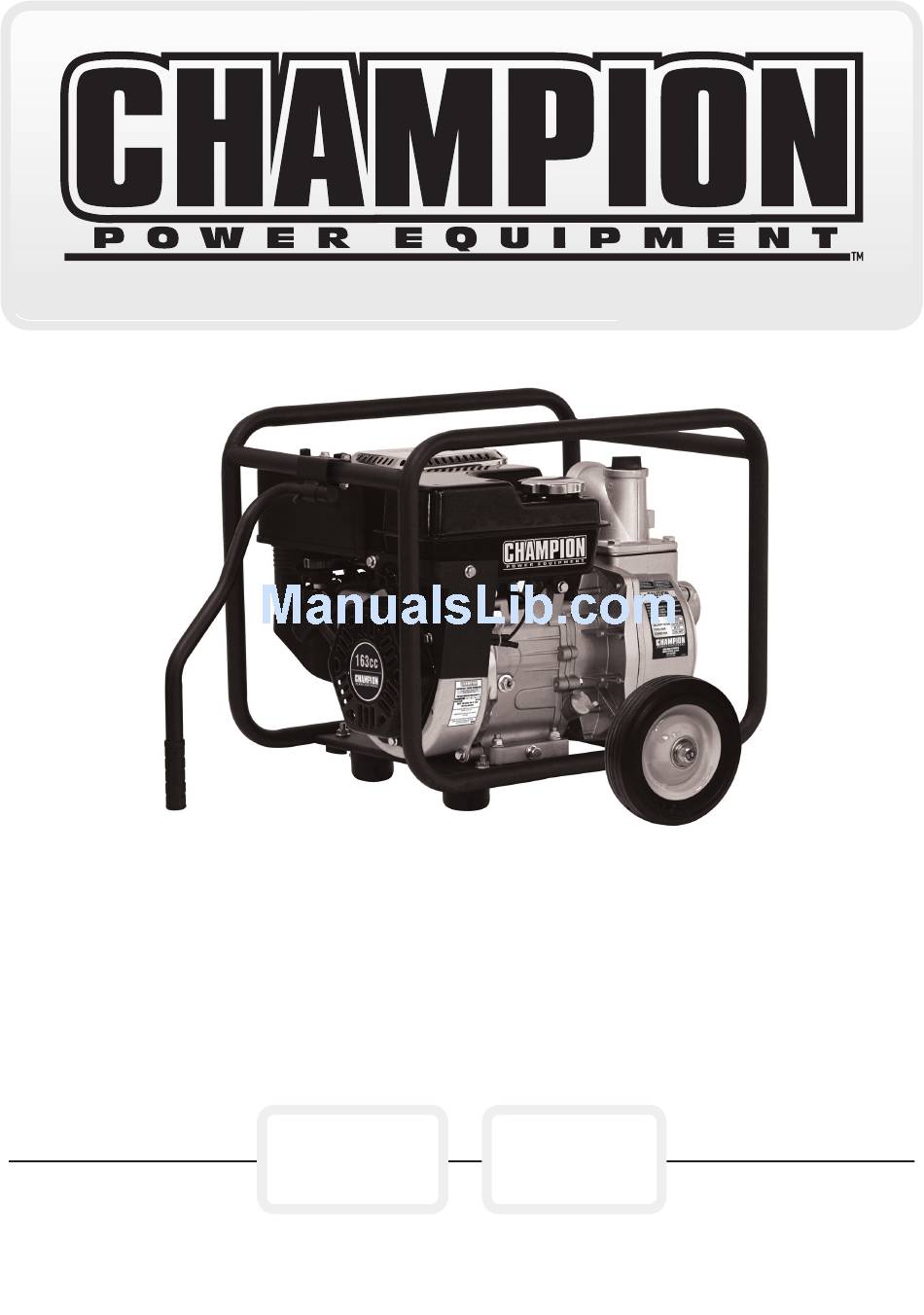

- Page 1 2 INCH SEMI-TRASH PUMP YEAR MODEL NUMBER 65525 LIMITED WARRANTY 10006 Santa Fe Springs Road SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 65525-20110516 www.championpowerequipment.com...
- Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
-
Page 3: Table Of Contents
65525 2 INCH SEMI-TRASH PUMP TAblE Of CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 4: Introduction
ENGLISH INTROdUCTION Introduction Accessories Congratulations on your purchase of a Champion Power Champion Power Equipment manufactures and sells Equipment semi-trash pump . CPE designs and builds accessories designed to help you get the most from your semi-trash pumps to strict specifications . With proper purchase . -
Page 5: Manual Conventions
. Please call our help line at 1-877-338-0999 situation which, if not avoided, could result in death or serious injury . CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury . REV 65525-20110516... -
Page 6: Safety Rules
65525 ENGLISH SAfETY RUlES WARNING dANGER Read this manual thoroughly before operating your Rotating parts can entangle hands, feet, hair, semi-trash pump . Failure to follow instructions clothing and/or accessories . could result in serious injury or death . Traumatic amputation or severe laceration can result . - Page 7 DO NOT allow any material to block the cooling slots . WARNING DO NOT use the semi-trash pump if: – Equipment sparks, smokes or emits flames Water pumped through this unit shall not be used – Equipment vibrates excessively as drinking water . REV 65525-20110516...
-
Page 8: Controls And Features
65525 ENGLISH CONTROlS ANd fEATURES Read this owner’s manual before operating your semi-trash pump . Familiarize yourself with the location and function of the controls and features . Save this manual for future reference . Semi-Trash Pump Fuel Tank – 1 .06 gallon (4 L) capacity fuel tank . -
Page 9: Parts Included
65525 ENGLISH CONTROlS ANd fEATURES Parts Included Your Model 65525 Gasoline Powered semi-trash pump ships with the following parts: Wheel Kit – 6” Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 10: Assembly
65525 ENGLISH ASSEMblY Install the Support leg Your semi-trash pump requires some assembly . This unit ships from our factory without oil . It must be properly 1 . Attach the two rubber vibration mounts to the frame serviced with fuel and oil before operation . -
Page 11: Add Engine Oil
The engine is equipped with a low-oil-shutoff and will stop when the oil level in the crankcase falls below the threshold level . NOTE Check oil often during the break-in period . Refer to the Maintenance section for recommended service intervals . REV 65525-20110516... -
Page 12: Operation
65525 ENGLISH OPERATION Semi-Trash Pump location Connecting a Hose Kit Place the semi-trash pump in a well- ventilated area . DO NOTE NOT place the semi- trash pump near vents or intakes where exhaust fumes could be drawn into occupied Both the intake and discharge ports are 2 in . -
Page 13: Starting The Engine
Running the pump dry can destroy the pump seals and will void the warranty . If the pump was running while dry, stop the engine and allow it to cool thoroughly before filling the chamber with water . REV 65525-20110516... -
Page 14: Maintenance And Storage
65525 ENGLISH MAINTENANCE ANd STORAGE The owner/operator is responsible for all periodic Oil Cont’d. maintenance . WARNING Never operate a damaged or defective semi-trash pump . WARNING Improper maintenance will void your warranty . Spark Plugs 1 . Remove the spark plug cable from the spark plug . -
Page 15: Cleaning
6 . Store in a clean, dry place out of direct sunlight . Contact our help line at 1-877-338-0999 to locate the nearest Champion Power Equipment certified service dealer for your semi-trash pump or engine maintenance needs . Every 8 hours or daily... -
Page 16: Troubleshooting
65525 ENGLISH TROUblESHOOTING Problem Cause Solution Semi-trash pump will not start No fuel Add fuel Faulty spark plug Replace spark plug Semi-trash pump will not start; Semi-trash Low oil level Fill crankcase to the proper level; place pump starts but runs roughly... -
Page 17: Specifications
10% by volume . Use 4-Cycle automotive oil . Oil capacity is 0 .63 qt qt (0 .6 L) . Please reference the following chart for recommended oil types for use in the semi-trash pump . REV 65525-20110516... -
Page 18: Parts Diagram
65525 ENGLISH SPECIfICATIONS Parts diagram REV 6552520110516... -
Page 19: Parts List
GB5789 M8x35 Flange Bolt M8x35 GB5789 M8x25 Flange Bolt M8x25 ST290QXG-2000003 Rubber GB6177 M8 Nut M8 ST02FD-03143401 Handle Cap ST02FD-03143402 Handle Bracket GB5789 M8x45 Flange Bolt M8x45 WP20-03271101 Handle ST188FD-1741002-C Handle Bar Grip GB6187 .1 M8 Nut M8 REV 65525-20110516... -
Page 20: Engine Parts Diagram
65525 ENGLISH SPECIfICATIONS Engine Parts diagram REV 6552520110516... -
Page 21: Engine Parts List
Piston Pin ST168F-1070003-G Fuel Valve Knob ST168F--1050004 Piston Pin Clip GB818-88-B4-12 Bolt M4x12 ST168F--1050200 Oil Ring Comp GB16674--1-FB5-12 Flange Bolt M5*12 ST168F--1050006 Second Ring Set ST188FD--1070006A Clip 8 ST168F--1050007 First Ring Set ST168F-1070004-G Tube 1 ST168F--1030009-G Cylinder Head Gasket REV 65525-20110516... -
Page 22: Warranty
This warranty excludes: Warranty Qualifications – Cosmetic defects such as paint, decals, etc . Champion Power Equipment (CPE) will register this – Wear items such as filter elements, o-rings, etc . warranty upon receipt of your Warranty Registration Card – Accessory parts such as starting batteries, and and a copy of your sales receipt from one of CPE’s retail... -
Page 23: Emission Control System Warranty
United States Environment Protection Agency (U.S. EPA.) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with U .S . EPA emission regulations . YOUR WARRANTY RIGHTS ANd OblIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 1997 and later small off-road engine . - Page 24 65525 ENGLISH WARRANTY EMISSION CONTROl SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System Warranty Coverage. Emission Control System Warranty (ECS Warranty) for 1997 and later model year engines): 1. APPLICABILITY: This warranty shall apply to 1997 and later model year engines) . The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter .
- Page 25 Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc . to sell and service that CPE product during his normal business hours . Claims for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because the engine was not properly maintained and used .
