Connecting a TV

For entertainment, conferences, or presentations, you can connect a TV to
your computer.
Follow this procedure to connect a TV:
1. Make sure that the computer is not turned on.
2. You can connect to a TV supporting S-video or Composite video.
Connecting a TV supporting S-video:

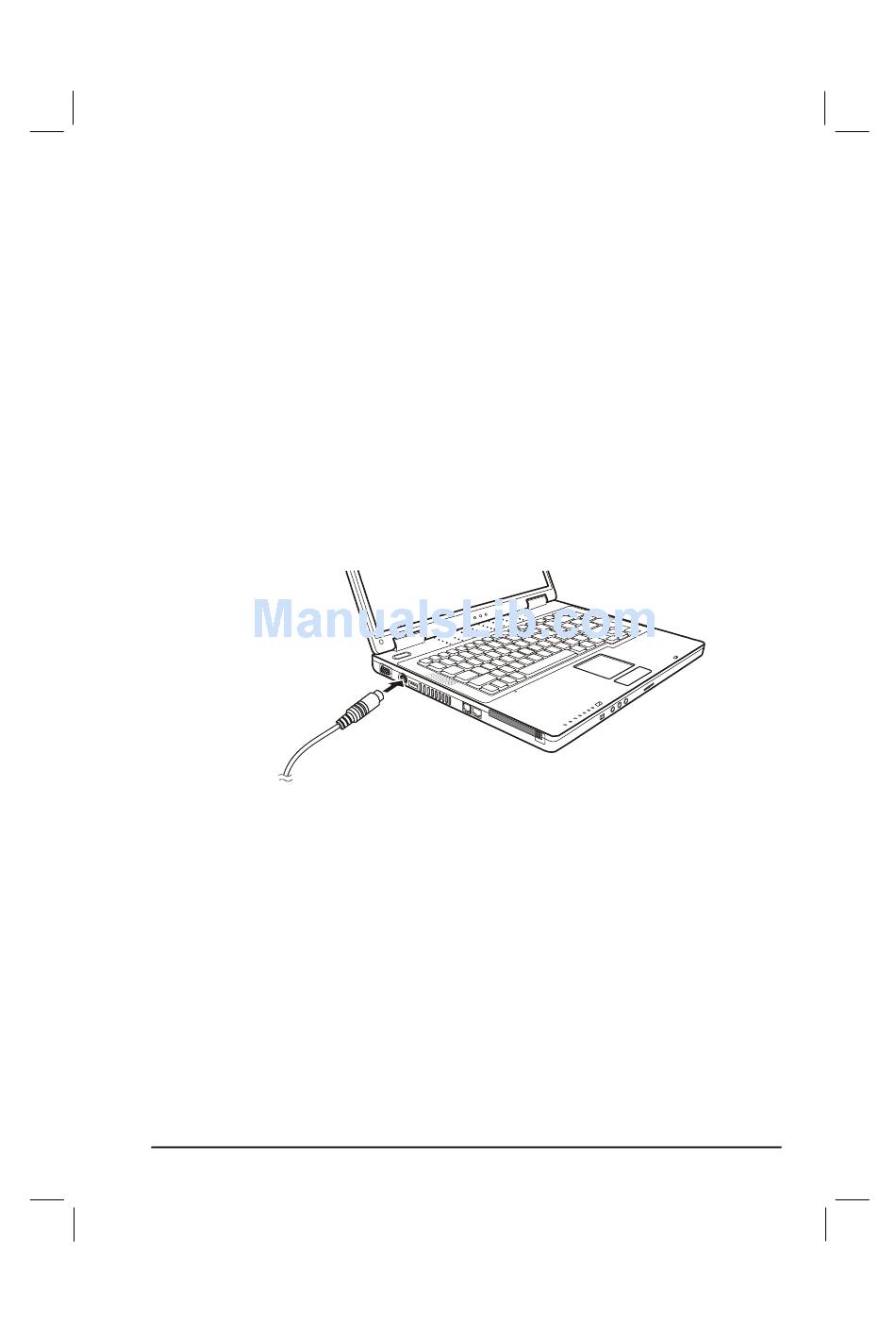

Prepare an S-video cable. Plug the appropriate end of the S-video
cable to the computer's S-video connector and the other end to the
TV's S-video input connector.
Connecting a TV supporting Composite video (with RCA
connectors):
Prepare an S-video to RCA converter cable (consult your dealer for
the correct type). Plug the appropriate end of this converter cable to
the computer's S-video connector. Prepare an RCA cable. Plug the
yellow end of this cable to the converter cable and the other yellow
end to the TV's video input connector.
Expanding Your Computer 4-3
