7
CONNECTIONS AND MAINTENANCE

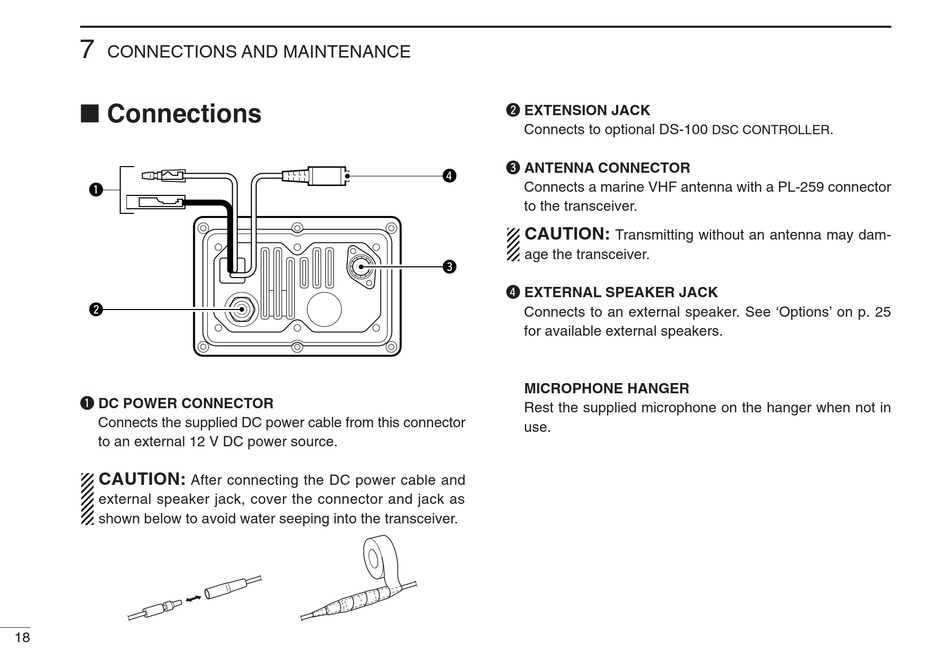

I Connections

q
w
q DC POWER CONNECTOR
Connects the supplied DC power cable from this connector
to an external 12 V DC power source.
CAUTION:
After connecting the DC power cable and
external speaker jack, cover the connector and jack as
shown below to avoid water seeping into the transceiver.
18
w EXTENSION JACK
Connects to optional DS-100
e ANTENNA CONNECTOR
r
Connects a marine VHF antenna with a PL-259 connector
to the transceiver.
CAUTION:
Transmitting without an antenna may dam-
age the transceiver.
e
r EXTERNAL SPEAKER JACK
Connects to an external speaker. See 'Options' on p. 25
for available external speakers.
MICROPHONE HANGER
Rest the supplied microphone on the hanger when not in
use.
.
DSC CONTROLLER
