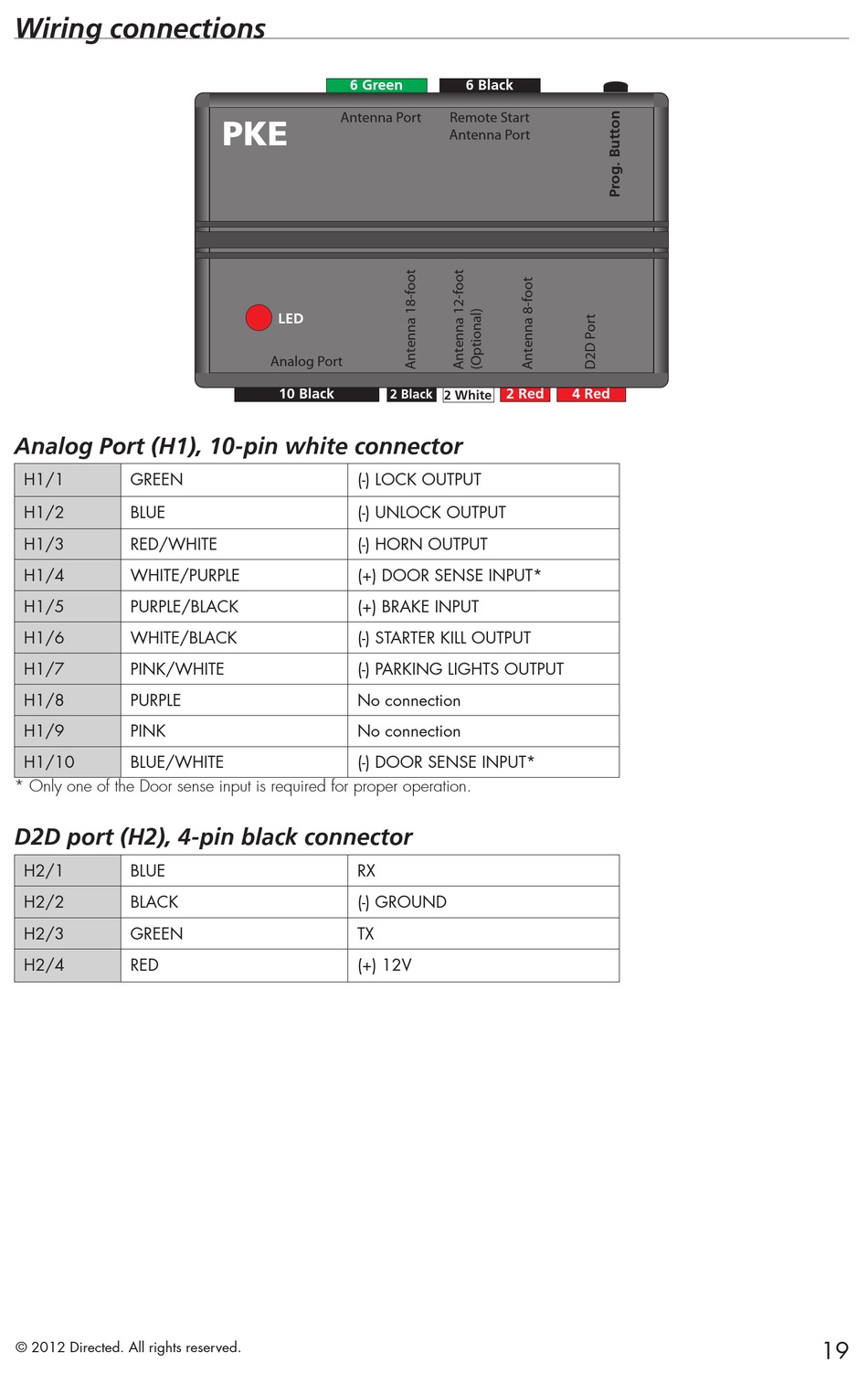

Wiring connections

Analog Port (H1), 10-pin white connector
H1/1 GREEN
H1/2 BLUE
H1/3 RED/WHITE
H1/4 WHITE/PURPLE
H1/5 PURPLE/BLACK
H1/6 WHITE/BLACK
H1/7 PINK/WHITE
H1/8 PURPLE
H1/9 PINK
H1/10 BLUE/WHITE
* Only one of the Door sense input is required for proper operation.

D2D port (H2), 4-pin black connector

H2/1 BLUE
H2/2 BLACK
H2/3 GREEN
H2/4 RED
© 2012 Directed� All rights reserved�
6 Green
Antenna Port
PKE
LED
Analog Port
10 Black
(-) LOCK OUTPUT
(-) UNLOCK OUTPUT
(-) HORN OUTPUT
(+) DOOR SENSE INPUT*
(+) BRAKE INPUT
(-) STARTER KILL OUTPUT
(-) PARKING LIGHTS OUTPUT
No connection
No connection
(-) DOOR SENSE INPUT*
RX
(-) GROUND
TX
(+) 12V
6 Black
Remote Start
Antenna Port
2 Red
2 Black
2 White
4 Red
