RPM Monitoring
This is required for both RPM-activated automatic door locking and for BlackJax anti-carjacking features. See the RPM Monitoring
section in this binder for information.

Hood Trigger

Vehicles with a ground-switching hood pin switch interface directly with IntelliGuard 7000 (on positive switching Rolls-Royce vehicles, use
a relay to invert polarity). If a switch cannot be located, you must add a pin switch in a location away from water channels.
1. Connect the WHITE/BLACK wire to the hood pin wire (between the diode and pin switch if a diode was added).
NOTE: If the vehicle has a dashboard hood ajar indicator, install a 1-amp diode between the light and switch
with the diode band pointing toward the switch.
1. Connect the RED wire to the 5-amp fuseholder as shown on page 3.
2. Connect the RED/WHITE wire to the 20-amp fuseholder as shown on page 3.
3. Attach the two fuseholders to the battery positive cable clamp.
4. Attach the BLACK wire to the battery negative cable clamp.
NOTE: Power and test ac ces so ries af ter the ba sic sys tem has been tested. In di vidu ally fuse all ac ces sory power
con nec tions. In di vidu ally fuse all +12V fuse panel con nec tions.
SmartPowerUp 2 ensures that the system powers up in the same state (disarmed, armed or valet mode) it was in when power was removed.
When you first power up the IntelliGuard 7000, it will silently enter the disarmed state.
Some vehicles have a courtesy light delay or dimming circuit, which interferes with an alarm being able to detect the door trigger upon
remote arming. If the delay or dimming lasts more than 5 seconds, no special connections or testing are needed, simply turn on the Delayed
Courtesy Lights feature as noted in the Installer-Programmable Features section on page 11. Please note that since this feature sets the
system to arm the instant the courtesy lights turn off, the Door Ajar Warning feature will not be available.
The IntelliGuard 7000 comes with two ergonomically designed remote controls. Up to two more ACG 2 remote controls can be
added to the IntelliGuard 7000 system. Due to the ACG 2 feature on the IntelliGuard Series systems, older Clifford ACG and
non-ACG remotes are not compatible with the IntelliGuard 7000.
16-Channel Mas ter Re mote Con trol Op era tion

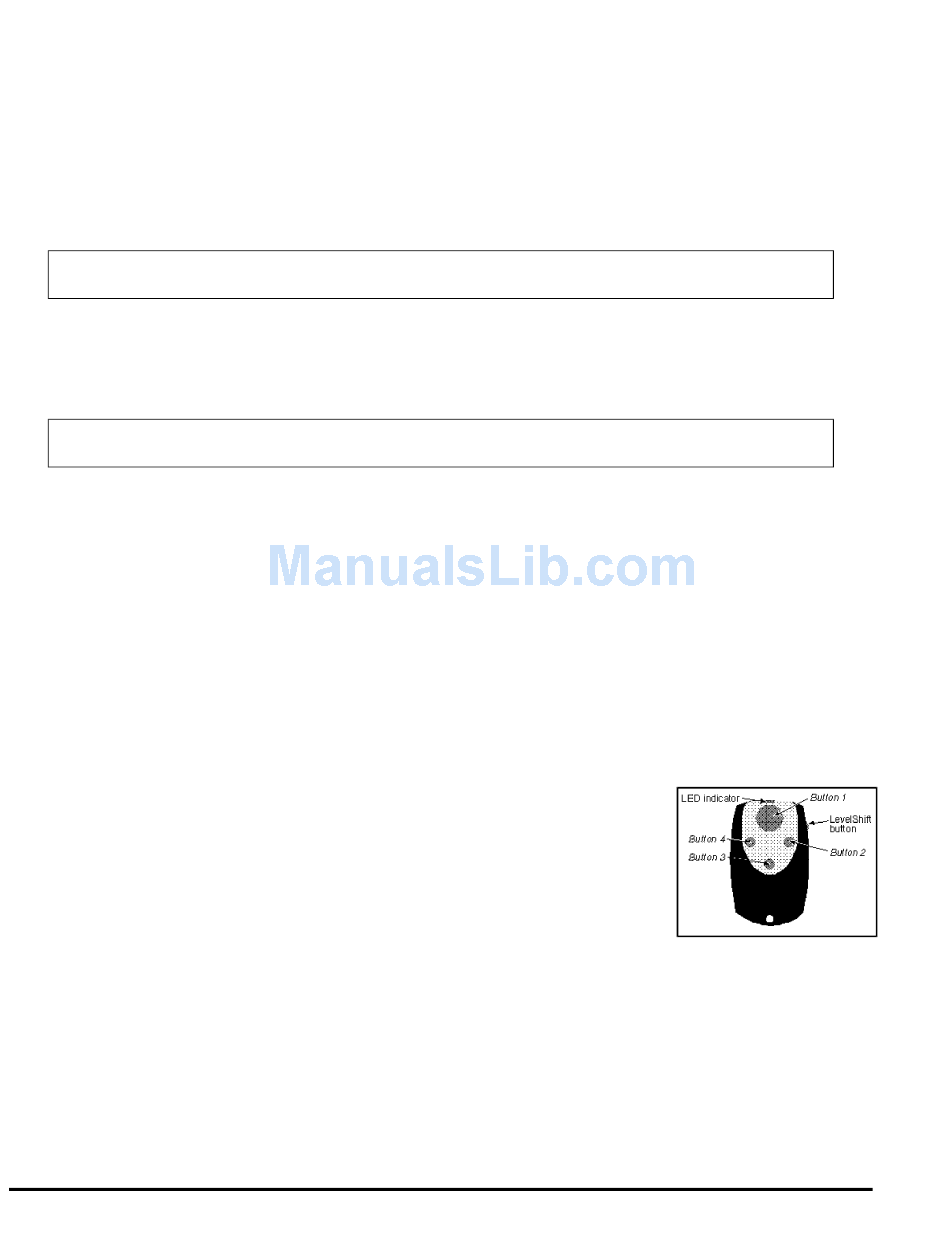

To transmit either channel 1, 2, 3 or 4: Press button 1, 2, 3 or 4. The LED indicator on the remote
control will flash once every second: this indicates level 1.
To transmit either channel 5, 6, 7 or 8: Press the LevelShift button once. This shifts buttons 1–4 to
level 2 (channels 5–8). Then press the desired button within the next 5 seconds. For instance, to
transmit channel 5, press the LevelShift button once, then press button 1. The LED indicator on the
remote control flashes twice, pauses, flashes twice, etc.: this indicates level 2.
To transmit channel 9, 10, 11 or 12: Press the LevelShift button twice. This shifts the buttons to level 3 (channels 9–12). Then press
the corresponding button within the next 5 seconds. For instance, to transmit channel 10, press the LevelShift button twice, then press
button 2. The LED on the remote control flashes three times, pauses, flashes three times, etc.: this indicates level 3.
To transmit channel 13, 14, 15 or 16: Press the LevelShift button three times. This shifts the buttons to level 4 (channels 13–16).
Then press the corresponding button within the next 5 seconds. For instance, to transmit channel 14 press the LevelShift button three
times, then press button 2. The LED on the remote control flashes four times, pauses, flashes four times, etc.: this indicates level 4.
