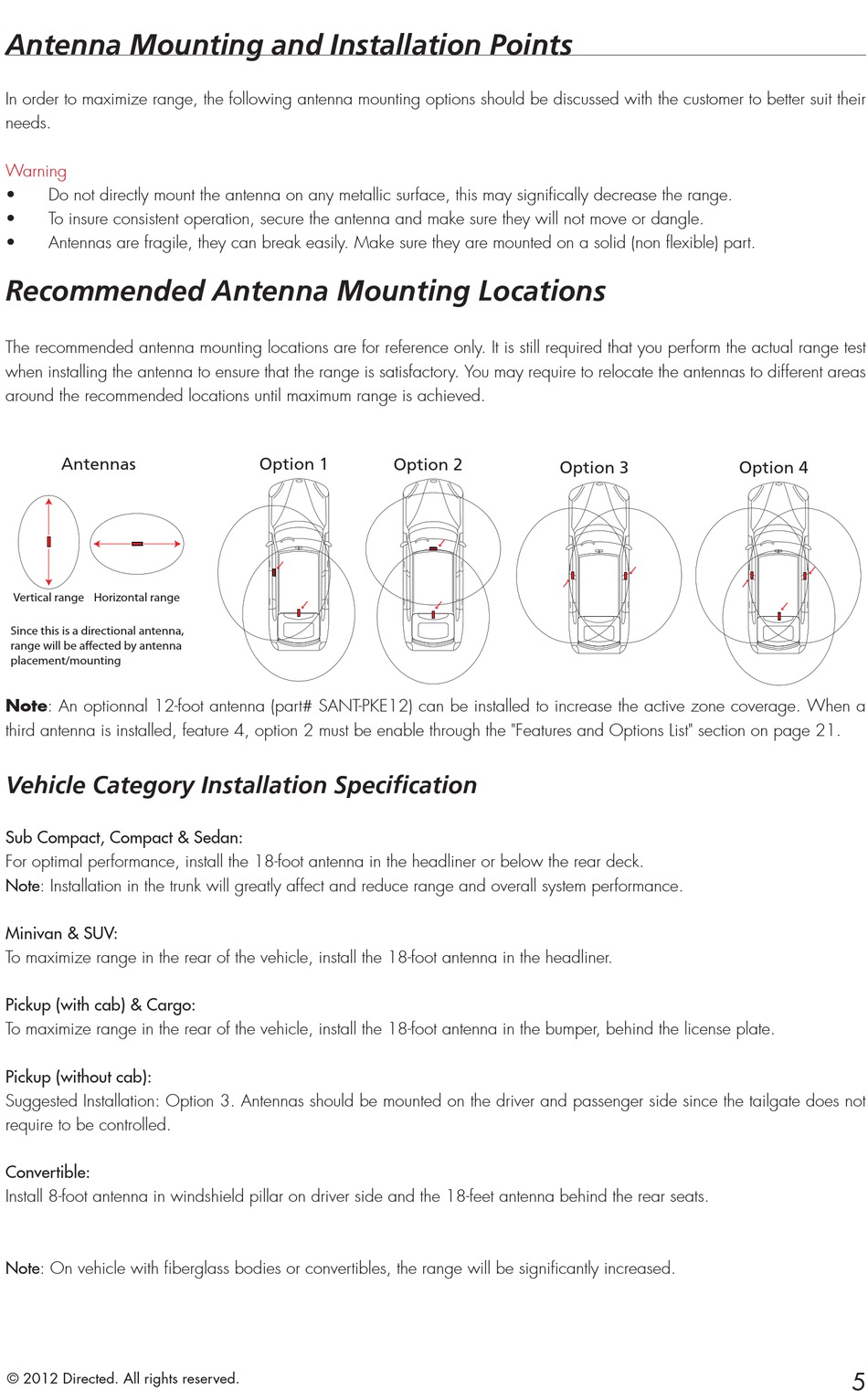

Antenna Mounting and Installation Points

In order to maximize range, the following antenna mounting options should be discussed with the customer to better suit their
needs.
Warning
• Do not directly mount the antenna on any metallic surface, this may significally decrease the range.
• To insure consistent operation, secure the antenna and make sure they will not move or dangle.
• Antennas are fragile, they can break easily. Make sure they are mounted on a solid (non flexible) part.
Recommended Antenna Mounting Locations
The recommended antenna mounting locations are for reference only. It is still required that you perform the actual range test
when installing the antenna to ensure that the range is satisfactory. You may require to relocate the antennas to different areas
around the recommended locations until maximum range is achieved.
Antennas
Vertical range Horizontal range
Since this is a directional antenna,
range will be a ected by antenna
placement/mounting
Note: An optionnal 12-foot antenna (part# SANT-PKE12) can be installed to increase the active zone coverage. When a
third antenna is installed, feature 4, option 2 must be enable through the "Features and Options List" section on page 21.

Vehicle Category Installation Specification

Sub Compact, Compact & Sedan:
For optimal performance, install the 18-foot antenna in the headliner or below the rear deck.
Note: Installation in the trunk will greatly affect and reduce range and overall system performance.
Minivan & SUV:
To maximize range in the rear of the vehicle, install the 18-foot antenna in the headliner.
Pickup (with cab) & Cargo:
To maximize range in the rear of the vehicle, install the 18-foot antenna in the bumper, behind the license plate.
Pickup (without cab):
Suggested Installation: Option 3. Antennas should be mounted on the driver and passenger side since the tailgate does not
require to be controlled.
Convertible:
Install 8-foot antenna in windshield pillar on driver side and the 18-feet antenna behind the rear seats.
Note: On vehicle with fiberglass bodies or convertibles, the range will be significantly increased.
© 2012 Directed� All rights reserved�
Option 1 Option 2
Option 3 Option 4
