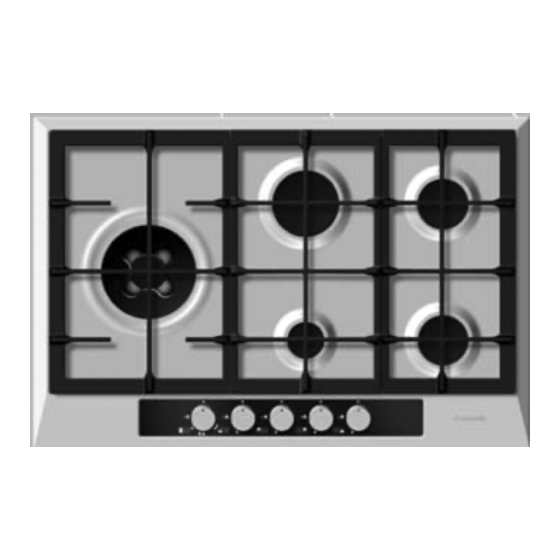

- Page 1 BHG730SS-AUS / BHG750SS- AUS / BHG930SS-AUS Gas hobs...
- Page 2 User Manual for your Baumatic BHG730SS-AUS 70 cm 5 Burner gas hob BHG750SS-AUS 75 cm 5 Burner gas hob BHG930SS-AUS 90 cm 5 Burner gas hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance.
-
Page 4: Table Of Contents
Contents Enviro nmental note Important safety information 6 – 8 Specifications 9 – 13 BHG730SS-AUS BHG750SS-AUS BHG930SS-AUS Electrical details Gas details Gas hob surface layout Using the gas hob 13 - 15 Before first use Switching the hob on 13 - 14... -
Page 5: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 6: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 7 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 8 If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of N 721 MUST be followed. o Baumatic Ltd. DO NOT recommend that this appliance is installed on any type of marine vessel. Declaration of conformity...
-
Page 9: Specifications
Specifications BHG730SS-AUS Product dimensions: Aperture dimensions: Depth: 500 mm Depth: 480 mm Width: 685 mm Width: 560 mm Height: 35 mm Product specifications: o 1 x 3.00 kW rapid burner o 1 x 3.80 kW triple crown (wok) burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner... -
Page 10: Bhg750Ss-Aus
BHG750SS-AUS Product dimensions: Aperture dimensions: Depth: 500 mm Depth: 480 mm Width: 740 mm Width: 560 mm Height: 35 mm Product specifications: o 1 x 3.00 kW rapid burner o 1 x 4.20 kW hyper-gas dual wok burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation o Automatic ignition... -
Page 11: Bhg930Ss-Aus
BHG930SS-AUS Product dimensions: Aperture dimensions: Depth: 500 mm Depth: 480 mm Width: 860 mm Width: 830 mm Height: 35 mm Product specifications: o 1 x 3.00 kW rapid burner o 1 x 4.20 kW hyper-gas dual wok burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation o Automatic ignition... -
Page 12: Electrical Details
Electrical details Rated Voltage: 220 - 240 Vac 50 - 60 Hz Supply Connection: 3 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 0.006 kW Mains Supply Lead: 3 core x 0.75mm² (Type RR-F <HAR> marked) Gas details Connection: Rp ½... -
Page 13: Gas Hob Surface Layout
Gas hob surface layout BHG730SS-AUS A = 3.80 kW triple crown (wok) burner B = 3.00 kW rapid burner C = 1.75 kW semi-rapid burner D = 1.00 kW auxiliary burner E = Control panel BHG750SS-AUS/BHG930SS-AUS A = 4.20 kW hyper-gas dual (wok) burner B = 3.00 kW rapid burner... -
Page 14: Automatic Ignition With Flame Failure Device
o The minimum setting is at the end of the anti-clockwise rotation of the control knob. o All operation positions must be selected between the maximum and minimum position. o Never select a knob position between the maximum and off position. -
Page 15: Cleaning
o The diametre of the bottom of the pan should correspond to that of the burner. o The burner flame must never extend beyond the diametre of the pan. o Use flat bottomed pans only o When possible, keep a lid on the pan whilst cooking. o Cook vegetables with as little water as possible, to reduce cooking times. -
Page 16: After Each Use
After each use o Remove the pan stands and wipe the appliance over with a soft, damp cloth that has been put into warm soapy water. The cloth should be wrung out after being taken out of the soapy water. o Dry the appliance by rubbing the surface with a soft, clean cloth. -
Page 17: Installation
85°C above the ambient temperature of the room it is located in, during periods of use. * 700 mm (BHG730SS-AUS) * 750 mm (BHG750SS-AUS) * 900 mm (BHG930SS-AUS) o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room. -
Page 18: Unpacking The Appliance
50 mm clearance around the appliance and between the hob surface and any combustible materials. Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging: 1 x Baumatic hob Pan stands Burner assemblies Instruction manual Baumatic warranty card... - Page 19 BHG750SS-AUS BHG930SS-AUS o Cut a hole in the worktop that corresponds with the relevant drawing for your hob on pages 18 - 19. All models o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it.
- Page 20 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip (A) provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
-
Page 21: Gas Connection
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Advice Line. o The hob must be installed by a qualified person, in accordance... -
Page 22: Gas Safety (Installation And Use) Regulations
o If it is installed in a room with a volume that exceeds 11m³, then no air vent is required. o If there are any other fuel burning appliances in the same room the current edition of BS 5440: Part 2: should be consulted to determine air vent requirements. -
Page 23: Gas Adjustment (Conversion To Lpg)
o Put the gas seal into the elbow. o Fully tighten the elbow and seal onto the gas rail. o The elbow MUST be pointing in a downwards direction. o Gas pressure may be checked on a semi-rapid hob burner. Remove the appropriate injector and attach a test nipple. - Page 24 o Unscrew the injector (B) and replace it with the stipulated injector for the new gas supply (see table below). GENERAL INJECTORS TABLE Kind of gas Burner Nozzle Ø Gas power (mm) (Mi/h) Natural gas Auxiliary (Methane) Semi-rapid 1.18 Rapid 0.55 Wok 3,3 13.2...
-
Page 25: Minimum Flow Adjustment For Hob Gas Taps
Minimum flow adjustment for hob gas taps. work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Switch the burner on and set the knob at the minimum position. -
Page 26: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a GASSAFE registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 27: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 28: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance. -
Page 29: Contact Details
Service Telephone 1800 444 357 Website www.thinkappliances.com Applico Ltd. P.O. 92900 Onehunga, Auckland, New Zealand 1061 Website www.applico.nz United Kingdom Baumatic Ltd., Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX United Kingdom Sales Telephone (0118) 933 6900 Website: www.baumatic.co.uk...
