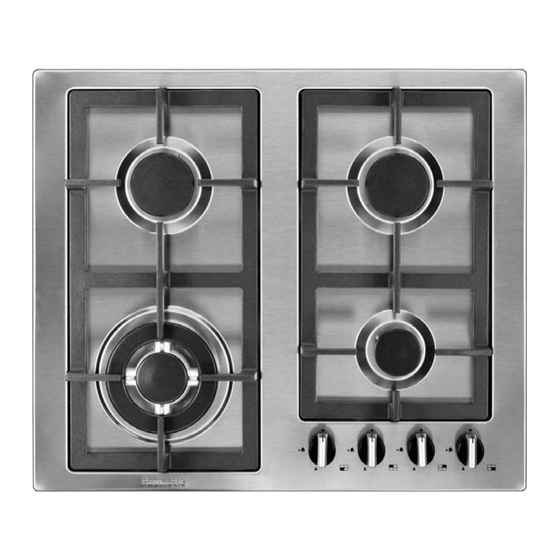

- Page 1 BHG610SSL 60 cm 4 burner gas hob...
- Page 2 User Manual for your Baumatic BHG610SSL 60 cm 4 Burner gas hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Enviro nmental note Important safety information 5 – 8 Specifications 8 – 9 Product and aperture dimensions Product specifications 8 - 9 Electrical details Gas details Gas hob surface layout Using the gas hob 10 - 11 Before first use Switching the hob on Automatic ignition with flame failure device 10 - 11... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
Baumatic’s Conditions Of Guarantee. The foregoing does not affect your statutory rights. o You shou ld not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. - Page 6 Repairs may only be carried out by Baumatic service engineers or their authorised service agent. Warning and safety instructions o This appliance complies with all current European safety legislation.
- Page 7 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
-89/336/EEC dated 03/05/1989 Directive inclusive Amending Directive 92/31/EEC. -93/68/EEC dated 22/07/1993 CE Marking Directive. -89/109/EEC dated 25/01/1992 Materials that can touch food. -90/396/EEC Gas Products. -EN60335-1, EN60335-2, EN301-1 Safety Standards. The manufacturer declares that the hob is built using certified materials and requires the appliance to be installed in accordance with the standards currently in force. -
Page 9: Electrical Details
Standard accessories: o Wok stand Electrical details Rated Voltage: 220 - 240 Vac 50 - 60 Hz Supply Connection: 3 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 0.006 kW Mains Supply Lead: 3 core x 0.75mm² (Type RR-F <HAR> marked) Gas details Connection: Rp ½... -
Page 10: Using The Gas Hob
Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see the “Cleaning” section on pages 12-13). Switching the hob on The following symbols will appear on the control panel, next to each control knob: = gas off Large flame: maximum setting Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation... -
Page 11: Energy Saving Tips
o You should hold down the control knob for 20 seconds after the flame on the burner has lit. o After this 20 second interval, turn the control knob to your required setting between the maximum and minimum setting symbols. o To switch the burner off, turn the control knob fully clockwise to the gas off position. -
Page 12: Cleaning
Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 13: Maintaining The Cast Iron Pan Stands
o After cleaning and washing them, wipe and dry them carefully. o Before placing the burners back on the hob top, make sure that the gas jet is not blocked. o IMPORTANT: Make sure that you reassemble the burners in the original way. -
Page 14: Positioning
Positioning The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. * 600 mm o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room. -
Page 15: Unpacking The Appliance
Vehicle, the requirements of EN 721 must be applied. Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging: 1 x Baumatic hob Pan stands Burner assemblies Instruction manual Baumatic warranty card... - Page 16 o Cut a hole in the worktop that corresponds with the drawing on the previous page. o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. o Carefully turn the hob upside down and place it on a cushioned mat.
-
Page 17: Gas Connection
Baumatic’s guarantee and lead to prosecution under the regulations quoted above. o In the UK, GASSAFE registered installers are authorised to undertake the installation and service work, in compliance with the above regulations. Ventilation requirements... -
Page 18: Gas Safety (Installation And Use) Regulations
o If the room has a volume of less than 5m³, it will require an air vent of 100cm² (effective area). o If it is installed in a room with a volume that exceeds 11m³, then no air vent is required. o If there are any other fuel burning appliances in the same room the current edition of BS 5440: Part 2: should be consulted to determine air vent requirements. -
Page 19: Minimum Flow Adjustment For Hob Gas Taps
o Put the gas seal into the elbow. o Fully tighten the elbow and seal onto the gas rail. o The elbow MUST be pointing in a downwards direction. o Gas pressure may be checked on a semi-rapid hob burner. Remove the appropriate injector and attach a test nipple. -
Page 20: Gas Tap Maintenance
o Unscrew the adjusting screw, in order to increase the gas flow or tighten the adjusting screw to decrease the gas flow. o The correct adjustment is obtained when the flame has a length of about 3 – 4 mm. o Refit the control knob. -
Page 21: Electrical Connection
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at your mains supply. -
Page 22: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance. -
Page 23: Contact Details
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Průmyslová zóna Sever 696 Baumatic Buildings, 460 11 Liberec 11 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 483 577 200 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900...
