Baumatic PHG605W Instruction Manual

Baumatic PHG605W Instruction Manual

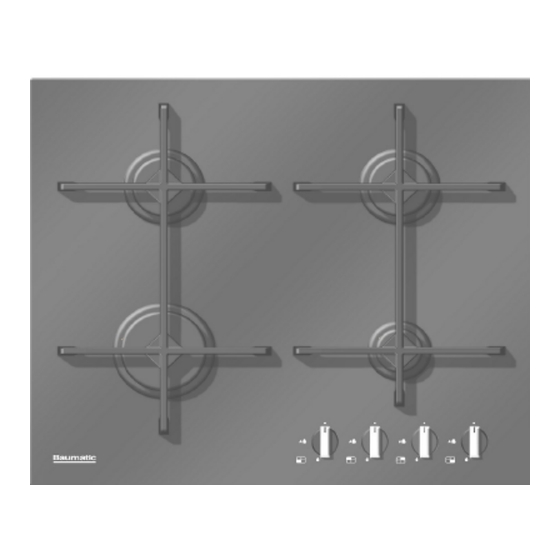

60 cm gas on glass hob

Advertisement

Quick Links

PHG605/PHG605W
60 cm gas on glass hob
el
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHG605W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Baumatic PHG605W

  • Page 1 PHG605/PHG605W 60 cm gas on glass hob...
  • Page 2 User Manual for your Baumatic PHG605/W 60 cm gas on glass hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
  • Page 3: Table Of Contents

    Contents Enviro nmental note Important safety information 5 – 7 Specifications 8 – 13 BHG604SS-W BHG610SS BHG700SS BHG900SS Electrical details Gas details Gas hob surface layout 12 - 13 Using the gas hob 14 - 15 Before first use Switching the hob on Automatic ignition with flame failure device 14 –...
  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.
  • Page 5: Important Safety Information

    No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made...
  • Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the applian ce at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the...
  • Page 7 British Standards. Please see the specific sect ion of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
  • Page 8: Specifications

    pecifications Product dimensions: Aperture dimensions: Depth: 500 mm Depth: 480 mm Width: 585 mm Width: 560 mm Height: 35 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burne o 1 x 1.00 kW auxiliary burner o Front control operation Automatic ignition o Heavy duty cast iron pan stands...
  • Page 9: Gas Details

    as details Connection: Rp ½ (ISO R7) Type: Natural Gas (20.9 mbar) Alterna tive LPG G30 (28-30 mbar) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice.
  • Page 10: Using The Gas Hob

    sing the gas hob Before first use IMPORTANT: You should clean the hob surface (see “ Cleaning and maintenance” section). Switching the hob on The following symbols will appear on the control panel, next to each control knob: = gas off arge flame: maximum setting mall flame: minimum setting o The minimum setting...
  • Page 11: Energy Saving Tips

    o You should hold down the control knob for 20 seconds after the flame on the burner has lit. o After this 20 second interval, turn the control knob to your required setting between the maximum and minimum setting symbols. o To switch the burner off, turn the control knob fully clockwise to the gas off position.
  • Page 12: Cleaning

    Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains sup ply before commencing any cleaning process. Clea ing the hob top Any residues that are left on the hob top surface from cleaning agents will damage it.
  • Page 13: Maintaining The Cast Iron Pan Stands

    Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Venti lation for Gas Appliances o Baumatic Ltd Installation Instructions...
  • Page 14: Positioning

    50 mm clearance around the appliance and between the hob surface and any combu stible materials. Unpacking the appliance hen unpacking the appliance please check that the following items are contained withi n the packaging: 1 x Baumatic hob Pan stands Burner assemblies Instruction ma nual Baumatic warranty card...
  • Page 15: Installing The Appliance

    nstallin g the appliance o Cut a hole in the worktop that corresponds with the illustration above. IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. Carefully turn the hob upside down and place it on a cushioned mat.
  • Page 16: Gas Connection

    Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Advice Line.
  • Page 17: Ventilation Requirements

    Baumatic’s guarantee and lead to prosecution under the regulations quoted above. o In the UK, GASSAFE registered installers are authorised to undertake the installation and service work, in compliance with the above regulations. Ventilation requirements...
  • Page 18: Gas Safety (Installation And Use) Regulations

    o Remember that the quantity of air necessary for combustion must never be less than 2m³/h for each kW of power (see total power in kW on the appliance rating plate). Gas Safety (Installation and Use) Regulations IMPORTANT: The appliance MUST be connected to the gas supply by use of a ½...
  • Page 19: Gas Adjustment (Conversion To Lpg)

    Gas adjustment (Conversion to LPG) work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Remove the pan-stands, burners and flame spreaders (A). o Unscrew the injector (B) and replace it with the stipulated injector for the new gas supply (see table below).
  • Page 20: Minimum Flow Adjustment For Hob Gas Taps

    o IMPORTANT: The minimum flow adjustment process must be completed before the appliance is next used. Minimum flow adjustment for hob gas taps. work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners.
  • Page 21: Gas Tap Maintenance

    Gas tap maintenance These maintenance operations MUST ONLY be carried out by a GASSAFE registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps.
  • Page 22: Electrical Connection

    Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at your mains supply.
  • Page 23: My Appliance Isn't Working Correctly

    Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
  • Page 24 Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Průmyslová zóna Sever 696 Baumatic Buildings, 460 11 Liberec 11 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 483 577 200 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900...

This manual is also suitable for:

Phg605Bhg604ss-wBhg610ssBhg700ssBhg900ss
