Summary of Contents for Baumatic BHG640SS

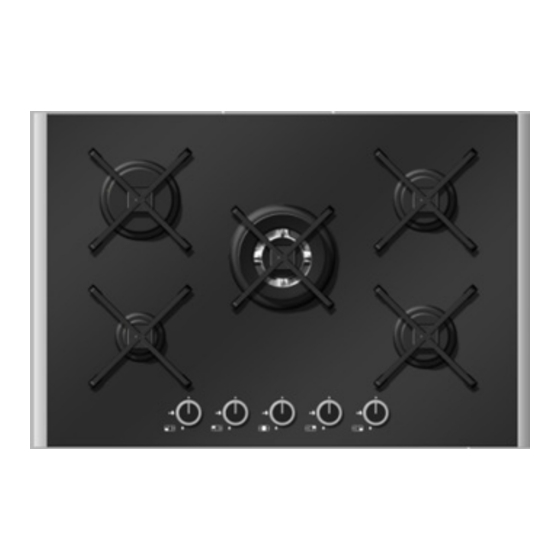

- Page 1 BHG640SS 60 cm BHG740SS 70 cm Gas on glass hobs...
- Page 2 User Manual for your Baumatic BHG640SS 60 cm BHG740SS 70 cm gas on glass hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Enviro nmental note Important safety information 5 – 7 Specifications 8 – 11 BHG640SS BHG740SS Electrical details Gas details Gas hob surface layout 10 - 11 Using the gas hob 11 - 13 Before first use Switching the hob on... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of N 721 MUST be followed. o Baumatic Ltd. DO NOT recommend that this appliance is installed on any type of marine vessel. Declaration of conformity This appliance complies with the following European Directives: -73/23/EEC dated 19/02/1973 Low Voltage Directive.
-
Page 8: Specifications
Specifications BHG640SS Product dimensions: Aperture dimensions: Depth: 500 mm Depth: 480 mm Width: 585 mm Width: 560 mm Height: 44 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner... -
Page 9: Bhg740Ss
BHG740SS Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 740 mm Width: 560 mm Height: 47 mm Product specifications: o 1 x 3.80 kW triple crown (wok) burner o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation o Automatic ignition... -
Page 10: Electrical Details
Model Number ………………………………. Serial Number ………………………………. Date of Purchase ………………………………. Gas hob surface layout BHG640SS A = 3.00 kW rapid burner B = 1.75 kW semi-rapid burner C = 1.00 kW auxiliary burner D = Control panel... -
Page 11: Using The Gas Hob
BHG740SS A = 3.80 kW triple crown (wok) burner B = 3.00 kW rapid burner C = 1.75 kW semi-rapid burner D = 1.00 kW auxiliary burner E = Control panel Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance”... -
Page 12: Automatic Ignition With Flame Failure Device
Automatic ignition with flame failure safety device The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out. To ignite a burner: o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position. -
Page 13: Cleaning
o The burner flame must never extend beyond the diametre of the pan. o Use flat bottomed pans only o When possible, keep a lid on the pan whilst cooking. o Cook vegetables with as little water as possible, to reduce cooking times. -
Page 14: Cleaning The Hob Burners
o We would recommend that an appropriate neutral and non- flammable detergent is used to clean the glass surface of the hob. Cleaning the hob burners The hob burners should be cleaned once a week or more frequently if they get soiled. o IMPORTANT: Make sure that the hob surface, pan stands and hob burners have cooled before you attempt to touch them. -
Page 15: Installation
Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Ventilation for Gas Appliances o Baumatic Ltd Installation Instructions Positioning The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient... -
Page 16: Unpacking The Appliance
50 mm clearance around the appliance and between the hob surface and any combustible materials. Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging: 1 x Baumatic hob Pan stands Burner assemblies Instruction manual Baumatic warranty card... - Page 17 BHG740SS o Cut a hole in the worktop that corresponds with the illustration above. o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. o Carefully turn the hob upside down and place it on a cushioned mat.
-
Page 18: Gas Connection
o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future if it needs to be serviced. Sealing strip Clamp Screw... -
Page 19: Ventilation Requirements
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Advice Line. o The hob must be installed by a qualified person, in accordance... -
Page 20: Gas Safety (Installation And Use) Regulations
o This hob is not fitted with a device for discharging the products of combustion. Ensure that the ventilation rules and regulations are followed. o The walls behind and near the hob should be resistant to heat, steam and condensation. o Remember that the quantity of air necessary for combustion must never be less than 2m³/h for each kW of power (see total power in kW on the appliance rating plate). -
Page 21: Gas Adjustment (Conversion To Lpg)
the other burners and observe that the gas pressure complies with the gas standards in force. o IMPORTANT: On completion carry out a gas soundness test. Gas adjustment (Conversion to LPG) work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. -
Page 22: Minimum Flow Adjustment For Hob Gas Taps
o Reassemble all the burners carefully; in particular you should make sure that the flame spreader is correctly placed on the burner. o IMPORTANT: The minimum flow adjustment process must be completed before the appliance is next used. Minimum flow adjustment for hob gas taps. work must carried... -
Page 23: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a GASSAFE registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 24: Electrical Connection
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at your mains supply. -
Page 25: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance. -
Page 26: Contact Details
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Průmyslová zóna Sever 696 Baumatic Buildings, 460 11 Liberec 11 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 483 577 200 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900... - Page 28 28 28...
