Tubular Motor Replacement Instructions
for VMAX2 models 135" and above / Spectrum models 135" and above
For technical support or further assistance, call 877-511-1211 x604
ATTENTION:
Elite Screens does not recommend making unnecessary adjustments to the screen, as improper
adjustments will damage the unit and void your warranty.

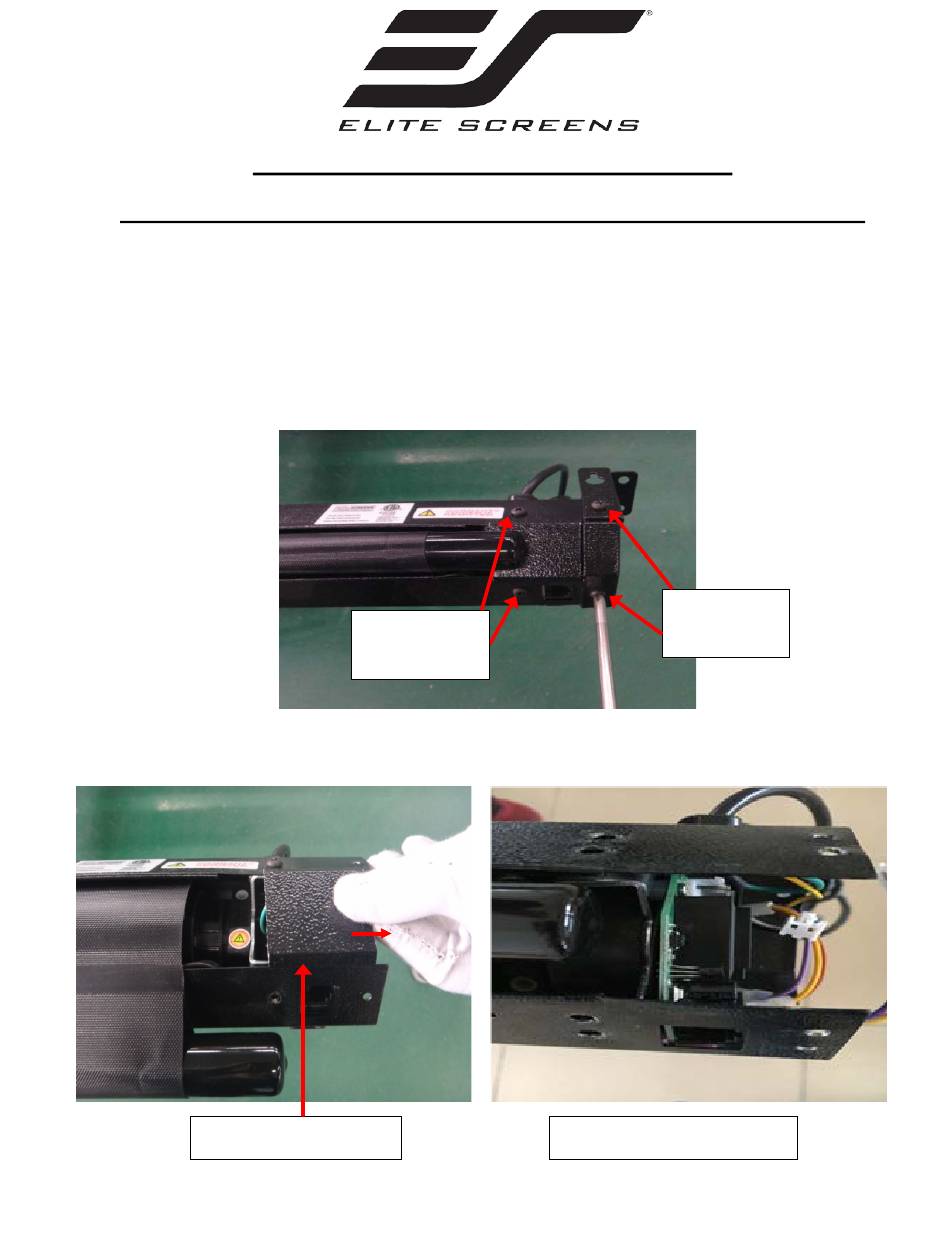

1. Remove the screws on the motor bracket and left end cap (facing the screen) with a Phillips
screwdriver, then remove the end cap.
2. After removing the end cap, carefully remove the decorative sheet by pulling it outward towards
the open end.
Decorative sheet
Updated 3/22/2017
Motor bracket
screws
1
End cap
screws
Decorative sheet removed
www.elitescreens.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens VMAX2 Series
Summary of Contents for Elite Screens VMAX2 Series
- Page 1 For technical support or further assistance, call 877-511-1211 x604 ATTENTION: Elite Screens does not recommend making unnecessary adjustments to the screen, as improper adjustments will damage the unit and void your warranty. 1. Remove the screws on the motor bracket and left end cap (facing the screen) with a Phillips screwdriver, then remove the end cap.
- Page 2 3. Remove the power cord and 3P cable, shown in the image below. Power cord 4. Using the screwdriver, at the right side end cap, push the roller out to expose the roller on the open left side end of the housing. Being sure not to snag or scratch the material on the housing, lift and pull the roller out from the left side enough to access the ground terminal.
- Page 3 6. Separate the motor from the motor bracket and attach the same bracket to the new motor. Remove the motor bracket from here 7. Install the new motor. Be sure to align the drive wheel with the ladder on the roller. Roller Motor 8.
- Page 4 Motor cap Rope or Shock absorber core twine 10. After inserting the motor into the housing, insert the power cord and the 3P cable into the circuit board. Then connect the power cable to the ground of the motor cable and clamp it with the ground terminal.
- Page 5 13. Replace and secure the end cap with screws removed in step 1. Finished assembly. NOTE: After replacing the tubular motor, you may need to adjust the limit switch to drop the screen at your preferred height. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Updated 3/22/2017 www.elitescreens.com...
