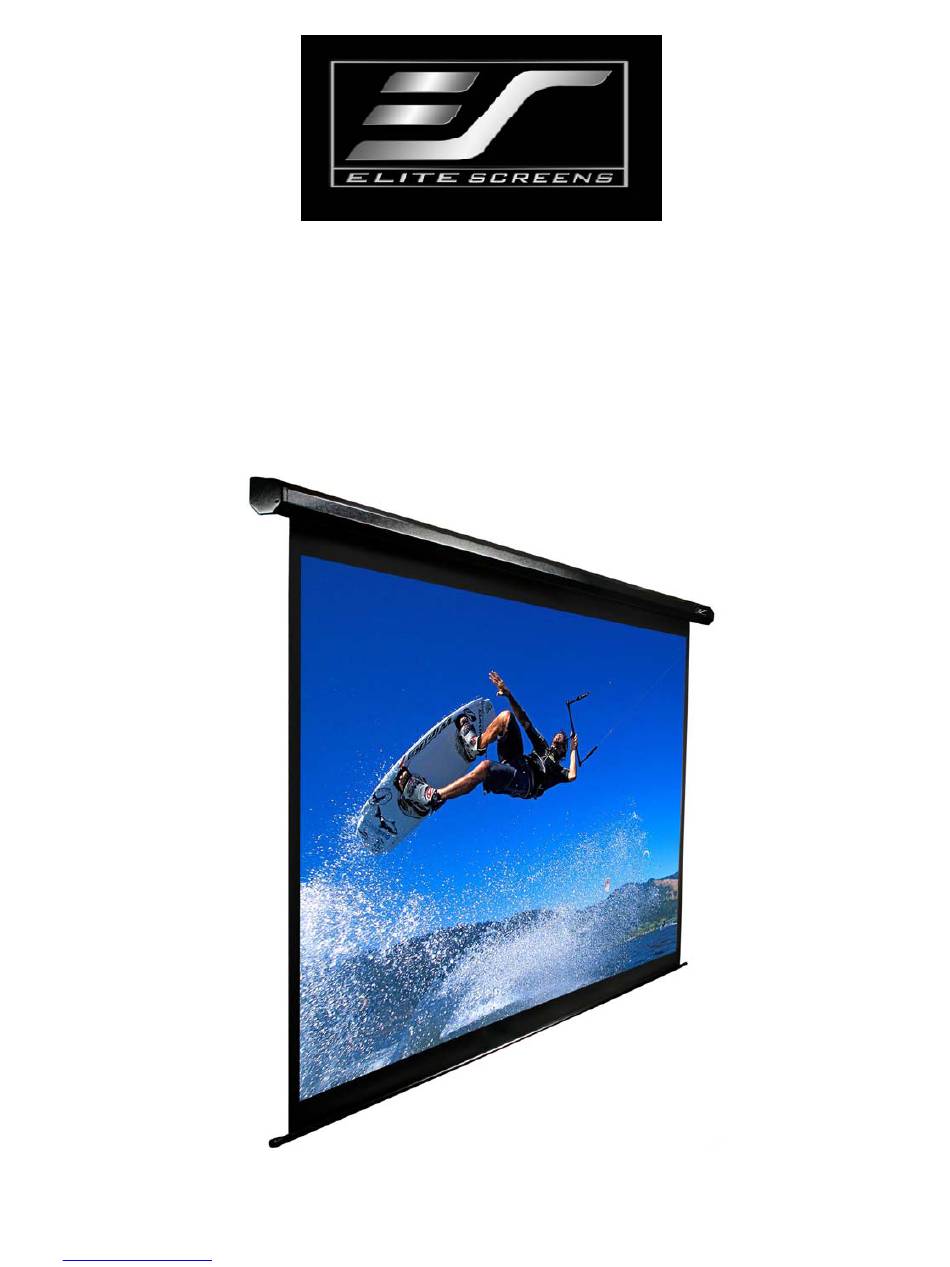

- Page 1 Spectrum/VMAX2/Plus4 Series Electric/Motorized Projection Screen User Guide Rev. 091709-JA www.elitescreens.com info@elitescreens.com...
- Page 2 Important safety and warning precautions 1. Be sure to read this user guide before use and follow the procedures below. Please retain this manual for future reference. To avoid any damage, do not use in conjunction with any accessories not recommended by the manufacturer.
- Page 3 Warning Individual modifications to this product are prohibited and will void the warranty. Please contact Elite Screens Customer Service for any questions. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 4: Pre-Installation
PRE INSTALLATION 1. Carefully unpack the screen 2. Always handle the screen in a leveled position on a clean surface. 3. In order to protect the screen from exposure to stains, keep the screen out of contact with foreign particles such as dust, sawdust, and/or liquids. 1. - Page 5 Fig. 1 Optional installation method using a chain to hang the screen from the ceiling Fig. 2 Rev. 091709-JA www.elitescreens.com info@elitescreens.com...
- Page 6 12-V Trigger The VMAX2 and Spectrum Screens have the capability of using a 12-Volt Trigger. To Projector Video Projection Interface Red DC12V 12-Volt Trigger Assembly Green 0V D i a g r a m Wa l l-mounted 3-way-switch 1. Bubble Level: Included with the installation package is a small bubble level that can be useful in determining if the screen is perfectly level when installing.
- Page 7 FAQ’S 1. Q: Why does my screen no longer function? A: There are a few possible things you could check: I.) Make sure your wall plug has power and that the screen is properly plugged in. II.) Please check the fuse to y our screen. (Call Tech support for location of fuse) III.) If screen works well with the line switch but not with the remote control, make sure the remote control has good batteries in it.
-
Page 8: Warranty Policy
For Warranty and Service requests please fill out a RMA /Service Form at: http://www.elitescreens.com/service_formhtm. Please Visit this link for full Warranty information: http://www.elitescreens.com/service.htm For Customer Service and Technical questions, please contact Elite Screens at: Telephone:(877)-511-1211 Fax:(562)-483-8498 Rev. 091709-JA www.elitescreens.com info@elitescreens.com... - Page 9 +886-(02)2747-8979 America: Elite Screens Inc 16410 Manning Way, Cerritos, CA 90703 USA Tel: 877-511-1211 Fax: 562-483-8498 info@elitescreens.com www.elitescreens.com Europe: Elite Screens Europe GmbH Lübecker Straße,122087 Hamburg, Germany Tel: +49-40-30392494 Fax: +49-40-49219200 info@elitescreens.eu www.elitescreens.eu Asia: Elite Screens China Ltd.
