HT580 User Reference Guide
Version 1.0

Advertisement

Table of Contents
loading

Related Manuals for Unitech HT580

Summary of Contents for Unitech HT580

  • Page 1 HT580 User Reference Guide Version 1.0...
  • Page 2 Li-Ion Battery Pack is properly installed and fully charged prior to initial use of the HT580. 2. USB Driver Installation The HT580’s USB driver is located on the CD included in this package. To activate USB, please install the driver first.

  • Page 3: Table Of Contents

    Communication Cradle ......... . . 8 HT580 Communication with the Host ....... . 9 Interface Port .

  • Page 4: Overview

    Weighing only 150g (5.3 oz), the light weight of the HT580 is ideal for the long work days typical in a retail environment. Despite its light weight, the HT580 is unusually robust - capable of sustaining 1.2 meter (4 foot) drops to a concrete floor.

  • Page 5: Features

    HT580 User Reference Guide Unitech Electronic CO. LTD Features HT580 includes the following features: Operating System: Proprietary Memory: 1MB Display: 128 x 64 pixels Keypad: 18-key keypad Data Capture: CCD Communication: Bluetooth / RS232 / USB Technical Specifications Model HT580 Dimensions 123mm x 55mm x 25mm (4.8”...

  • Page 6: Product Illustration

    HT580 User Reference Guide Unitech Electronic CO. LTD Product Illustrations This section is designed to familiarize you with the HT580 and its cradle. For detailed explanations on some of the functions, please refer to subsequent chapters. Figure 2: HT580 Back View...

  • Page 7: Battery Storage & Safety Precautions

    We suggest that the battery not be removed, if possible. Charging When starting to operate the HT580, the main battery must be fully charged before the first use. The HT580 is equipped with a 3.7V 600mAH Lithium-Ion battery. It takes 8 hours to fully charge the main battery when empty.

  • Page 8: Communication Cradle

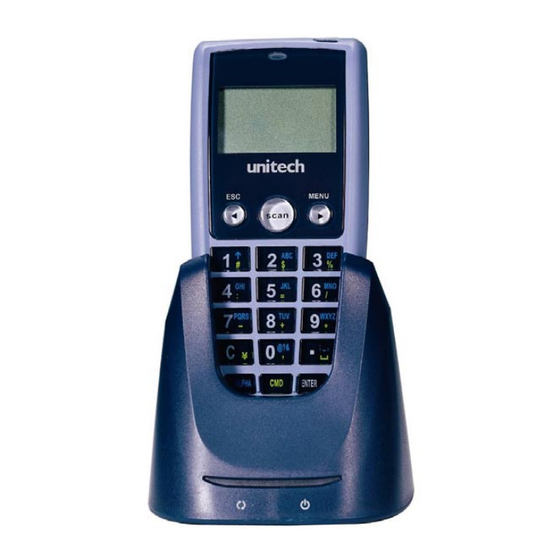

    HT580 User Reference Guide Unitech Electronic CO. LTD 1.7 Communication Cradle The HT580’s battery can be charged by placing the HT580 into its charging/communication cradle - part number: 5000-601558 (RS232) / 5000-601557 (Modem) Positioning Terminal Into Cradle Figure A - Proper Position...

  • Page 9: Ht580 Communication With The Host

    Interface Port The HT580 communicates via the RS communication port located on the bottom of the unit. You can connect the HT580 directly via the communication cable to your PC’s RS port for data transfer, or connect via the cradle.

  • Page 10: Keypad

    Unitech Electronic CO. LTD 1.11 Keypad The HT580 keypad consists of 18 rubber keys and one power key; the keypad is configured into three different modes: Numeric mode, Command mode, and Alphabetic mode. The keypad is configured in Numeric mode by default, Command mode when the light green CMD key is selected, or Alphabetic mode when the blue ALPHA key is selected.

  • Page 11: Chapter 2: Operating The Ht580

    HT580 User Reference Guide Unitech Electronic CO. LTD Chapter 2: Operating the HT580 After powering on the HT580, you will see the Main Menu as below: HT580 V1.06 1. SETTING 2. FORMCACHING 3. RUN APG580 Setting System Press [1] or [MENU] to enter “SETTING” category. There you will see the following four options: 1.

  • Page 12: Modem Init

    HT580 User Reference Guide Unitech Electronic CO. LTD 2.1.2- 2 < SCANNER > Press [2] or [scan] to enter <SCANNER> mode. Press [ESC] to return to the device setting mode. < SCANNER > selection: ON NORMAL/ON FLASH/OFF. Selecting your preference and press [ENTER] to complete the setting.
