- Page 1 HT580 User Reference Guide Unitech Electronic CO. LTD Unitech HT580 User Reference Guide Version 1.0 Unitech Part Number: 400412...
- Page 2 1. Li-Ion Battery Pack This unit is equipped with a Li-Ion battery pack. Due to storage, your HT580’s battery may not be fully charged when you first receive it. As a precaution, please ensure the battery is at full capacity when first starting to use the terminal.
-
Page 3: Table Of Contents
1.3 Features…………………………………………………………………………………5 1.4 Technical Specifications……………………………..………………………………5 1.5 Product Illustration……………………………………………………………………6 1.6 Battery Storage & Safety Precautions……………………………………………..7 1.7 Communication Cradle……………………………………………………………….8 1.8 HT580 Communication with the Host……………………………………………...9 1.9 Interface Port…………………………………………………………………………...9 1.10 Pin Assignment……………………………………………………………………….9 1.11 Keypad…………………………………………………………………………………10 1.12 Barcode Scanning Spectrum………………………………………………………10 Chapter 2: Operating the HT580 2.1 Setting System………………………………………………………………………….11... -
Page 4: Chapter 1: Introduction
Weighing only 150g (5.3 oz), the light weight of the HT580 is ideal for the long work days typical in a retail environment. Despite it’s light weight, the HT580 is unusually robust - capable of sustaining 1.2 meter (four foot) drops to a concrete floor. -
Page 5: Features
HT580 User Reference Guide Unitech Electronic CO. LTD Features HT580 includes the following features: Operation System: Proprietary Memory: 512KB Display: 128 x 64 pixel Keypad: 18-key keypad Data Capture: CCD Communication: Bluetooth / RS232 / USB Technical Specifications Model HT580 Dimensions 123mm x 55mm x 25mm (4.8”... -
Page 6: Product Illustration

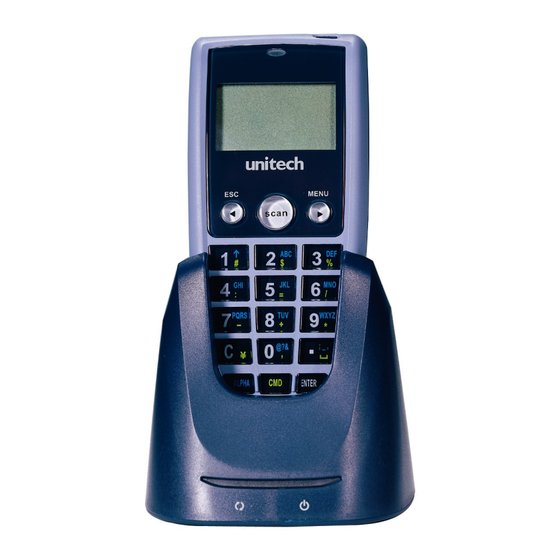

HT580 User Reference Guide Unitech Electronic CO. LTD Product Illustrations This section is designed to familiarize you with the HT580 and its cradle. For detailed explanations on some of the functions, please refer to subsequent chapters. Figure 0-1:HT580 Front View... -
Page 7: Battery Storage & Safety Precautions
We suggest that the battery not be removed, if possible. Charging When starting to operate the HT580, the main battery must be fully charged before the first use. The HT580 is equipped with a 3.7V 600m.A.h Lithium-Ion battery. It takes 8 hours to fully charge the main battery when empty. -
Page 8: Communication Cradle
HT580 User Reference Guide Unitech Electronic CO. LTD 1.7 Communication Cradle The HT580’s battery can be charged by placing the HT580 into its charging/communication cradle - part number: 5000-601557 (RS232) / 5000-601558 (Modem) Positioning Terminal Into Cradle .1. Proper Position... -
Page 9: Ht580 Communication With The Host
RS232 /Modem Cradle Communication Interface Port The HT580 communicates via the RS232 communication port located on the bottom of the unit. You can connect the HT580 directly via the communication cable to your PC’s RS232 port for data transfer, or connect via the cradle. -
Page 10: Keypad
Unitech Electronic CO. LTD 1.11 Keypad The keypad of HT580 consists of 18 rubber keys and one power key; the keyboard is configured into three different modes: Numeric mode, Command mode, and Alphabetic mode. The keyboard is configured in Numeric mode by default, Command mode when the light green CMD key is selected, or Alphabetic mode when the blue ALPHA key is selected. -
Page 11: Chapter 2: Operating The Ht580
HT580 User Reference Guide Unitech Electronic CO. LTD Chapter 2 - Operating the HT580 After powering on the HT580, you will see the Main Menu as below: HT580 V1.06 1. SETTING 2. FORMCACHING 3. RUN APG580 2.1 Setting System Press [1] or [MENU] to enter” SETTING” category. There you will see the following four options: 1. -
Page 12: Modem Init
