Instruction Manual
RF MONITOR
--------- UPCONV--------
DOWNCONVERTER
UPCONVERTER
ALARM
REMOTE
POWER
MUTE
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be
reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating
the equipment. Printed in USA.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
MODEL 2017
UP/DOWNCONVERTER
U U > L
G = 10.0
D L > U
G = 25.0 INT
ALARM
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
Model 2017-14
UHF, L-Band, Up/Downconverter
MENU
EXECUTE
January 2013, Rev. 0
RF MONITOR
------- DNCONV--------
C
T
ROSS
ECHNOLOGIES INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2017-14 and is the answer not in the manual?

Questions and answers

Related Manuals for Cross Technologies 2017-14

Summary of Contents for Cross Technologies 2017-14

  • Page 1 POWER MUTE ALARM Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. Printed in USA. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    WARRANTY - The following warranty applies to all Cross Technologies, Inc. products. All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies.

  • Page 3: General

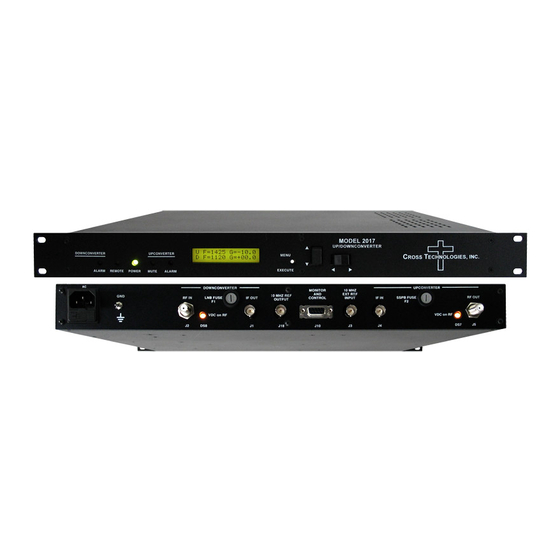

    1.0 General 1.1 Equipment Description The 2017-14 UHF, L-band Up/Downconverter converts 0.2-0.4 GHz to 1.2-1.4 GHz (Up) and 1.2-1.4 GHz to 0.2-0.4 GHz (Down). Multi-function switches select the gain (0 to +30 dB range for the Upconverter and Downconverter), and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm (red), remote operation (yellow), and Upconverter mute (yellow).

  • Page 4: Technical Characteristics

    1.2 Technical Characteristics TABLE 1.0 2017-14 UHF, L-Band, Up/Downconverter Specifications* UPCONVERTER DOWNCONVERTER Input Characteristics (UHF, L) Input Characteristics (L, UHF) Impedance/Return Loss 50Ω / 14 dB Impedance/Return Loss 50Ω / 14 dB Frequency 1.2 to 1.4 GHz Frequency 0.2 to 0.4 GHz Noise Figure, maximum 20 db @ max.
  • Page 5 50Ω BNC (RF), 50Ω BNC (IF) 75Ω F-Type (RF), 50Ω BNC (IF) 50Ω N-Type (RF), 75Ω BNC (IF) 50Ω N-Type (RF), 50Ω BNC (IF) SMA, 50Ω (RF), 50Ω BNC (IF) © 2013 Cross Technologies, Inc. 2017-14 Manual, Rev. 0 Page 5 01/31/13...

  • Page 6: Monitor & Control Interface

    A) Remote serial interface Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit. (RS-232C, RS-422, or RS-485 - option -Q) M&C Cable Diagram - Cross Technologies Frequency Converters Male DB-9 Female DB-9 2015/16/17 M&C Port...
  • Page 7 B) Status Requests Table 1.1 lists the status requests for the 2017-14 and briefly describes them. PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below, should be used ONLY when RS-485, (OPTION-Q), is selected. Table 1.1 2017-14 Status Re e quests...
  • Page 8 C) Commands Table 1.2 lists the commands for the 2017-14 and briefly describes them. After a command is sent the 2017-14 sends a return “>” indicating the command has been received and executed. General Command Format - The general command format is {aaCND...}, where:...

  • Page 9: Environmental Use Information

    G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 2017-14 Manual, Rev. 0 Page 9 01/31/13...
  • Page 10 2.1 Mechanical The 2017-14 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2017-14 can be secured to a rack using the 4 holes on the front panel.
  • Page 11 1.2 to 1.4 GHz output, Connection -50 to -30 dBm in, -15 to 0 dBm out, N-TYPE RJ45 Ethernet Connector See Table 2.2. See Table 2.2. Figure 2.1 Model 2017-14 Rear Panel I/O’s 2017-14 Manual, Rev. 0 Page 11 01/31/13...
  • Page 12 Type F, 75Ω BNC, 75Ω BNC, 75Ω BNC, 75Ω BNC, 50Ω BNC, 50Ω BNC, 50Ω BNC, 50Ω Type F, 75Ω BNC, 75Ω Type N, 50Ω BNC, 50Ω Type N, 50Ω BNC, 50Ω SMA, 50Ω 2017-14 Manual, Rev. 0 Page 12 01/31/13...

  • Page 13: Operation

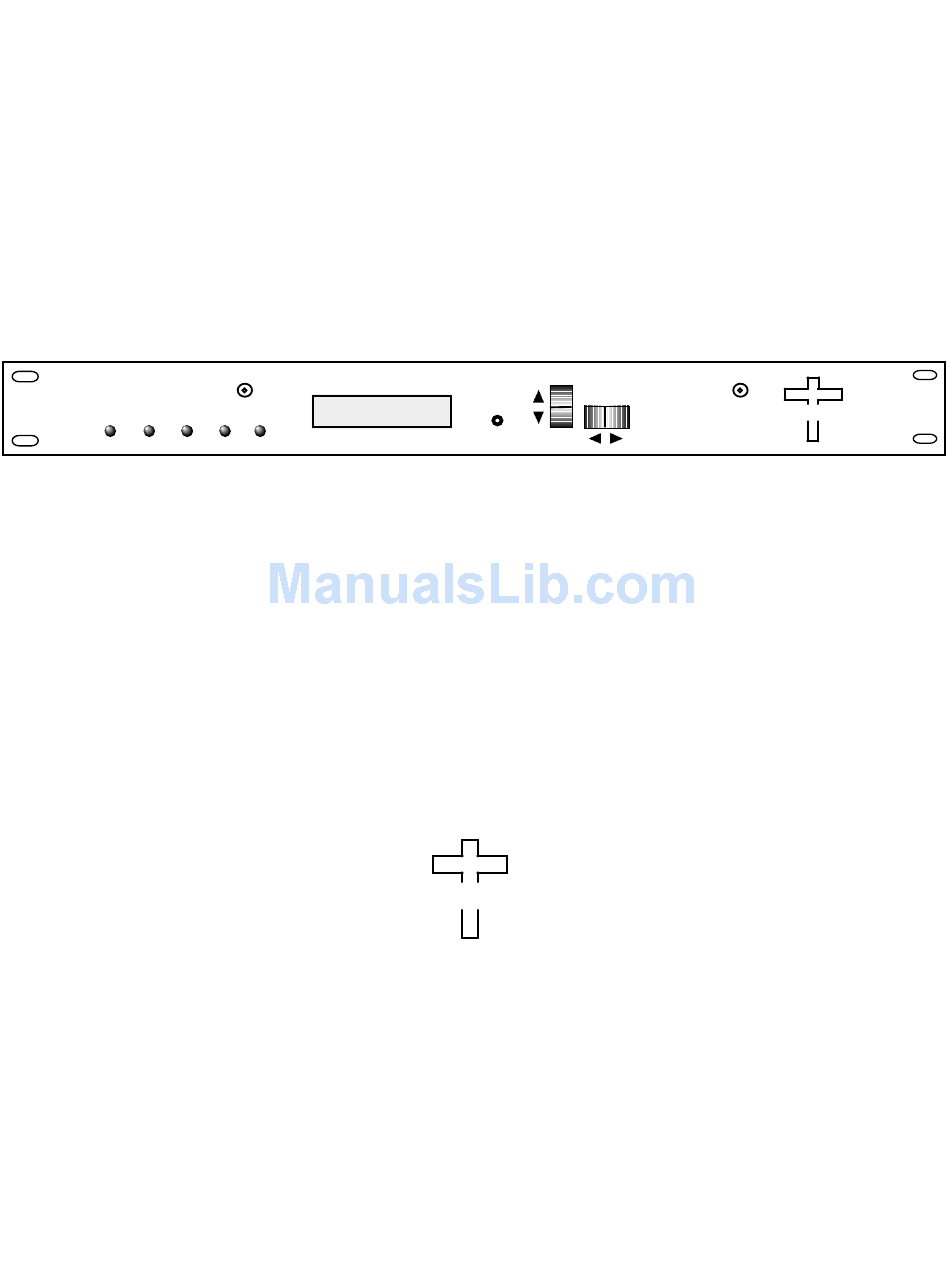

    Does not function adjusted. Does not function in the in the normal display mode. normal display mode. RF MONITOR DNCONV CROSS TECHNOLOGIES, INC. Figure 2.2 Model 2017-14 Front Panel Controls and Indicators 2017-14 Manual, Rev. 0 Page 13 01/31/13...
  • Page 14 2.4 Installation / Operation 2.4.1 Installing and Operating the 2017-14, Upconverter Section 1.) Connect a -40 dBm to -25 dBm signal to IF In, J4 (Figure 2.1). 2.) Connect the RF OUT, J5, to the external equipment. 3.) Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.
  • Page 15 AC Fuse - 2 amp slow blow (Type T), 5 mm X 20 mm INPUT FUSE 100-240± 10%VAC TYPE T 2A GDC 47-63 Hz 250 VOLT 2A MAX FOR 100 - 240 V~ Figure 2.3 Fuse Location and Spare Fuse 2017-14 Manual, Rev. 0 Page 15 01/31/13...

  • Page 16: Menu Settings

    If programming is initiated and no operator action takes place for approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its previous status and you will need to start over. 2017-14 Manual, Rev. 0 Page 16 01/31/13...
  • Page 17 During frequency , gain, input level changes, the vertical movement will raise or lower the number in the direction of the arrows. b. For other functions such Mute on/off, the vertical switch will alternately turn the function on or off regardless of the direction operated. 2017-14 Manual, Rev. 0 Page 17 01/31/13...
  • Page 18 Pushing the Menu/Execute switch then takes you to the : U U > L G=+10.0 D L > U G=25.0 INT Figure 2.4 shows all the menu items and how to make changes. 2017-14 Manual, Rev. 0 Page 18 01/31/13...
  • Page 19 Figure 2.4 shows all the menu items and how to make changes. 2.5.4.3 Alarm Indications An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock. 2017-14 Manual, Rev. 0 Page 19 01/31/13...
  • Page 20 SCROLL PUSH BUTTON PUSH BUTTON Save Settings? At the end or SAVE SETTINGS? when “R” is selected from any of SCROLL <> PUSH BUTTON the above menus Figure 2.4 Menu Display and Sequence 2017-14 Manual, Rev. 0 Page 20 01/31/13...
