Cross Technologies 2017-03 Instruction Manual

Up/downconverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

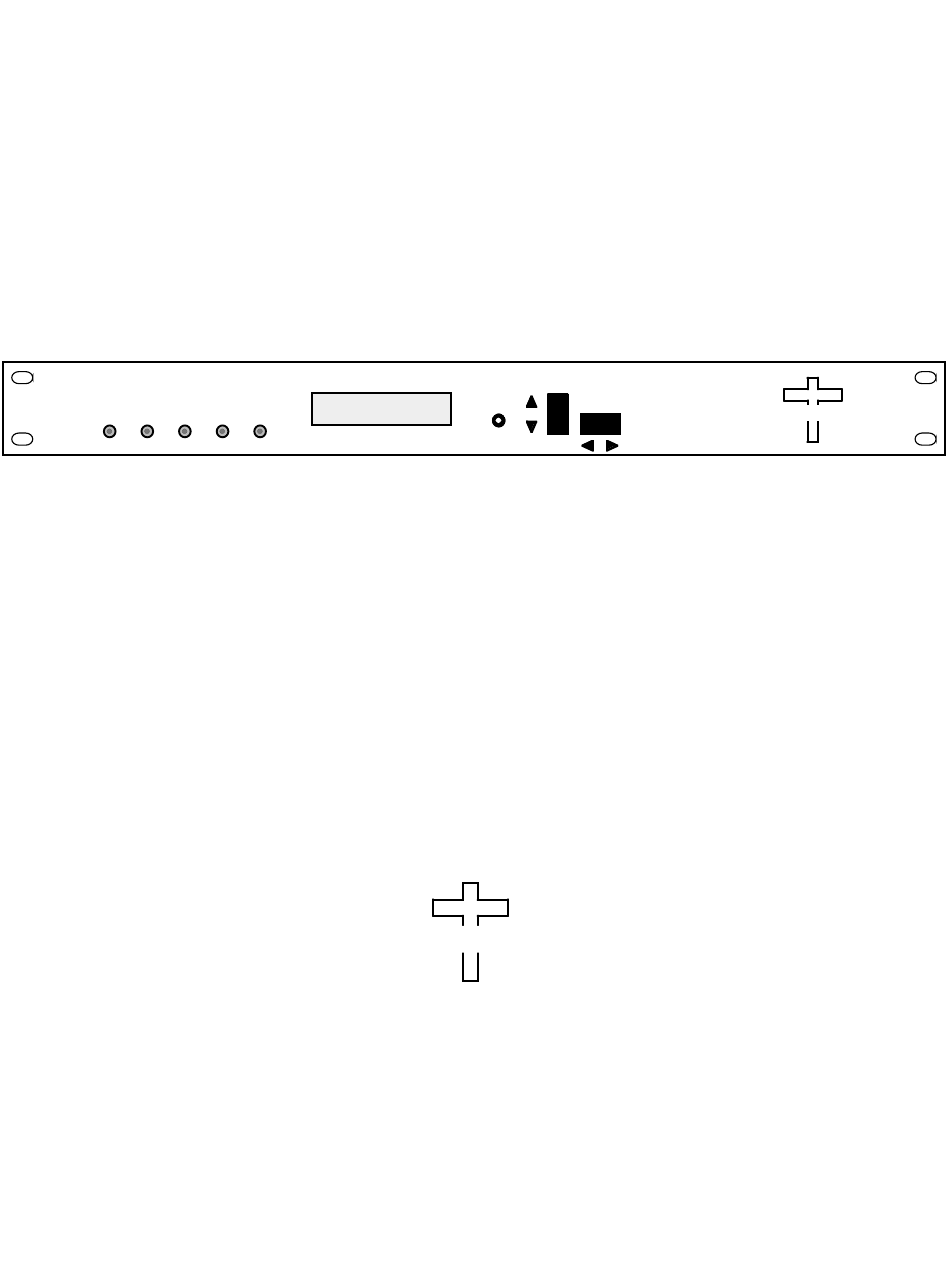

Instruction Manual
DOWNCONVERTER
UPCONVERTER
ALARM
REMOTE
POWER
MUTE
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be
reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating
the equipment. Printed in USA.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
U F=1525
G=10.0
D F=1525
G=25.0
ALARM
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
Model 2017-03
Up/Downconverter
MODEL 2017
UP/DOWNCONVERTER
MENU
EXECUTE
March 2018, Rev. N
C
T
ROSS
ECHNOLOGIES INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2017-03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cross Technologies 2017-03

Summary of Contents for Cross Technologies 2017-03

  • Page 1 POWER MUTE ALARM Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. Printed in USA. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    WARRANTY - The following warranty applies to all Cross Technologies, Inc. products. All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies.

  • Page 3: Model 2017-03 Up/Downconverter

    1.0 General 1.1 Equipment Description The 2017-03 L-band Up/Downconverter converts 70 MHz to 950-1525 MHz (Up) and 950-1525 MHz to 70 MHz (Down) in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters.

  • Page 4: Technical Characteristics

    1.2 Technical Characteristics TABLE 1.0 2017-03 Up/Downconverter Specifications* --------DOWNCONVERTER-------- --------UPCONVERTER-------- Input Characteristics (RF) Input Characteristics (IF) 75 Ω /12 dB Impedance/Return Loss 75 Ω /18 dB Impedance/Return Loss Frequency 950 to 1525 MHz Frequency 70 ± 18 MHZ Noise Figure (max.) 15 dB @ max.

  • Page 5: Monitor & Control Interface

    A) Remote serial interface Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit. (RS-232C, RS-422, or RS-485 - option -Q) M&C Cable Diagram - Cross Technologies Frequency Converters Male DB-9 Female DB-9 2015/16/17 M&C Port...
  • Page 6 B) Status Requests Table 1.1 lists the status requests for the 2017-03 and briefly describes them. PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below, should be used ONLY when RS-485, (OPTION-Q), is selected. Table 1.1 2017-03 Status Requ u ests...
  • Page 7 C) Commands Table 1.2 lists the commands for the 2017-03 and briefly describes them. After a command is sent the 2017-03 sends a return “>” indicating the command has been received and executed. General Command Format - The general command format is {aaCND...}, where:...

  • Page 8: Environmental Use Information

    G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 2017-03 Manual, Rev. N Page 8 03/22/18...

  • Page 9: Installation

    2.1 Mechanical The 2017-03 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A switching, ± 12, +5, +24 VDC power supply provides power for the assemblies. The 2017-03 can be secured to a rack using the 4 holes on the front panel.
  • Page 10 Lights yellow when +24 VDC SSPB voltage is 950-1525 MHz output, 0 to -20 dBm in, see Table 2.2. present on RF OUT, J5, center pin. dBm out, see Table 2.2. Figure 2.1 Model 2017-03 Rear Panel I/O’s 2017-03 Manual, Rev. N Page 10 03/22/18...
  • Page 11 Type F, 75Ω BNC, 75Ω BNC, 75Ω BNC, 75Ω BNC, 50Ω BNC, 50Ω BNC, 50Ω BNC, 50Ω Type F, 75Ω BNC, 75Ω Type N, 50Ω BNC, 50Ω Type N, 50Ω BNC, 50Ω SMA, 50Ω 2017-03 Manual, Rev. N Page 11 03/22/18...

  • Page 12: Front Panel Controls, Indicators

    DC power. Upconverter mute. Upconverter alarm. values in the Menu items when in program mode. Does not function in the normal display mode Figure 2.2 Model 2017-03 Front Panel Controls and Indicators 2017-03 Manual, Rev. N Page 12 03/22/18...

  • Page 13: Operation

    5.) Set the input level (See Section 2.5 Menu Settings). 6.) Set the gain (See Section 2.5 Menu Settings). 7.) (option -V) To power the SSPB (+24 VDC, 2.5 amps max.) from the 2017-03 install a 2.5 amp 1/4” fuse in F2.
  • Page 14 AC Fuse - 2 amp slow blow (Type T), 5 mm X 20 mm FUSE INPUT 100-240± 10%VAC TYPE T 2A GDC 47-63 Hz 250 VOLT 2A MAX FOR 100 - 240 V~ Figure 2.3 Fuse Location and Spare Fuse 2017-03 Manual, Rev. N Page 14 03/22/18...

  • Page 15: Menu Settings

    If programming is initiated and no operator action takes place for approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its previous status and you will need to start over. 2017-03 Manual, Rev. N Page 15 03/22/18...
  • Page 16 Menu/Execute switch; simply do nothing for approximately 12 seconds, and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch and select “NO” in the “SAVE SETTINGS?” window. 2017-03 Manual, Rev. N Page 16 03/22/18...
  • Page 17 “R” and push the menu/Execute switch and select “NO” in the “SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds, and the system will return to the normal operating mode. 2017-03 Manual, Rev. N Page 17 03/22/18...
  • Page 18 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to the : U F=1450 G=+20.0 D F=1350 G=+20.0 Figure 2.4 shows all the menu items and how to make changes. 2017-03 Manual, Rev. N Page 18 03/22/18...
  • Page 19 Figure 2.4 shows all the menu items and how to make changes. 2.5.5.3 Alarm Indications An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock. 2017-03 Manual, Rev. N Page 19 03/22/18...
  • Page 20 SSPB current (options -L, -V) SAVE SETTINGS? Save Settings? At the end or SCROLL <> PUSH BUTTON when “R” is selected from any of the above menus Figure 2.4 Menu Display and Sequence 2017-03 Manual, Rev. N Page 20 03/22/18...

  • Page 21: Shiloh Road Alpharetta, Georgia

    ROSS ECHNOLOGIES, INC. 6170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB www.crosstechnologies.com E-MAIL info@crosstechnologies.com Printed in USA 2017-03 Manual, Rev. N Page 21 03/22/18...
