VIA Technologies Mini-ITX User Manual page 38

All, But Diskette
error).
All, But Disk/Key
error)
IDE Primary Master/Slave and Secondary Master/Slave

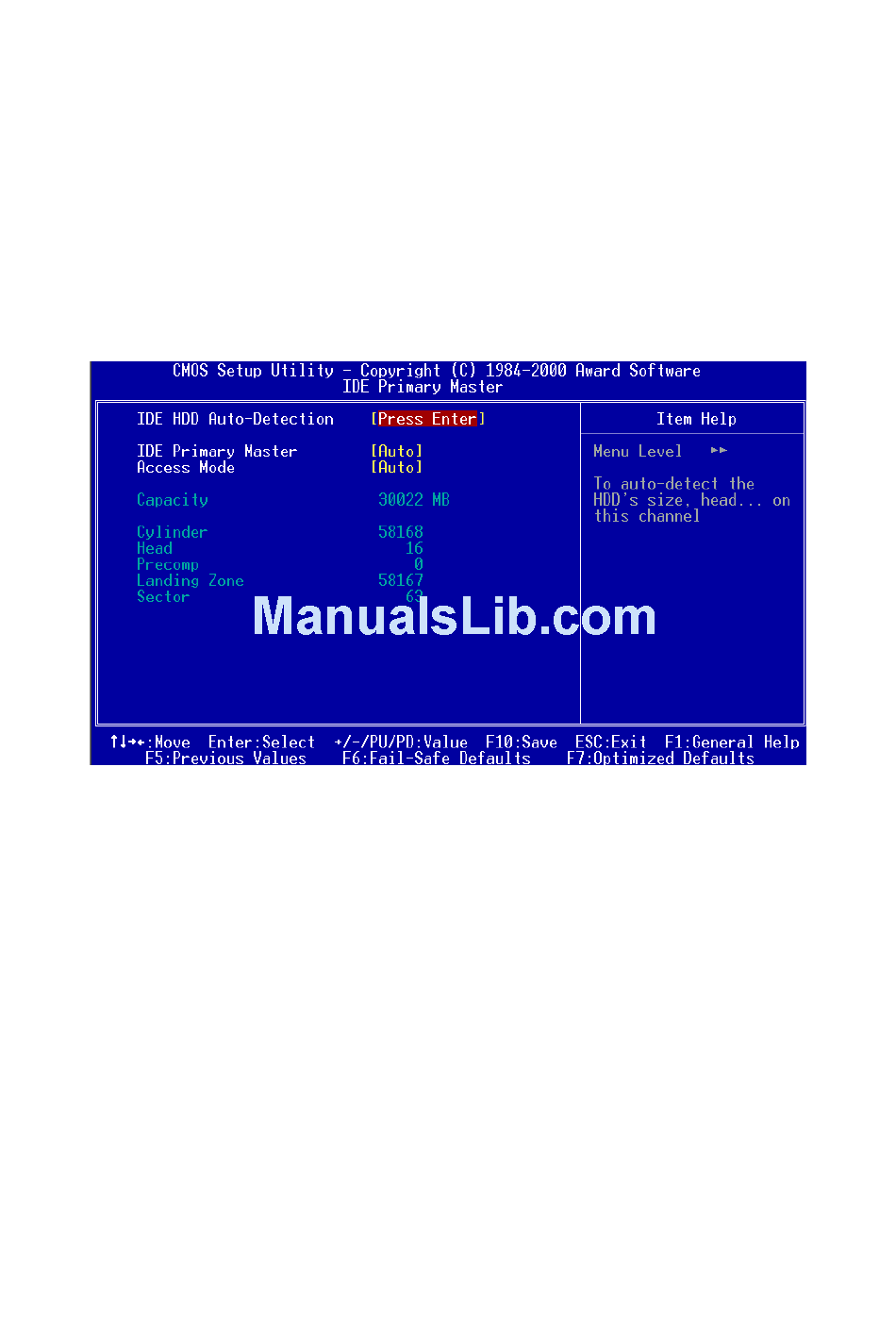

Press <Enter> to enter the sub-menu and the following screen appears:
The specifications of your drive must match with the drive table. The
hard disk will not work properly if you enter improper information for
this category. Select Auto whenever possible. If you select Manual,
make sure the information provided is from your hard disk vendor or
system manufacturer.
IDE Primary Master The settings are None, Auto, Manual.
Access Mode
Capacity
Cylinder
Head
Precomp
Landing Zone
Sector
System halts for all errors (except diskette
System halts for all errors (except disk/KB
The settings are CHS, LBA, Large, Auto.
The formatted size of the storage device.
Number of cylinders.
Number of heads.
Write precompensation.
Cylinder location of the landing zone.
Number of sectors.
3-7
BIOS Setup
