Chapter 2
CPU

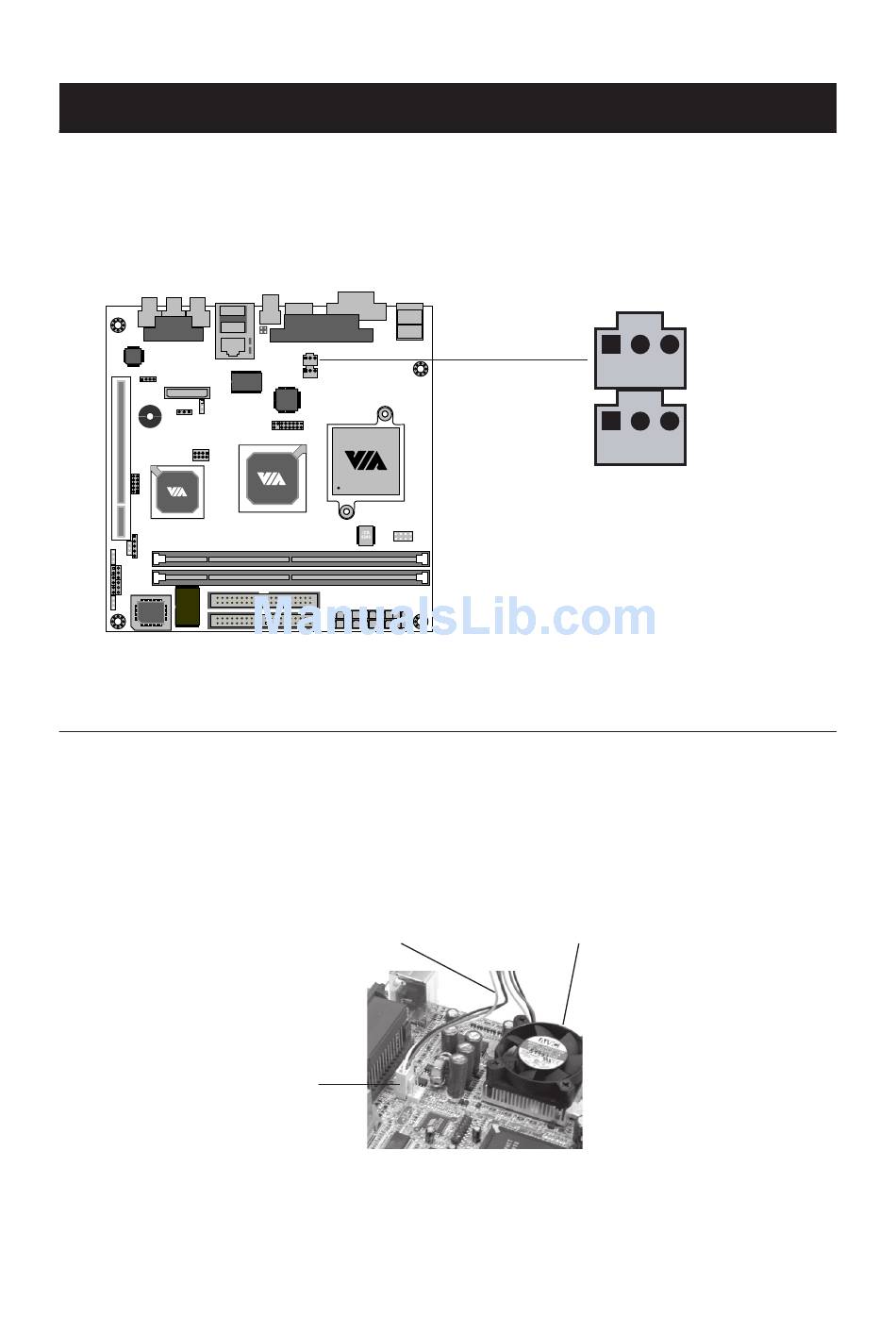

The VIA EPIA Mini-ITX Mainboard includes an embedded VIA Eden
Processor or VIA C3
E-Series Processor. Two fan connectors (Fan 1 &
TM
Fan 2) are provided on the mainboard, alllowing for the connection of a
CPU fan and an additional system case fan.
Fan 1
Fan 2
The VIA C3
E-Series Processor
TM
With low power consumption and advanced thermal dissipation properties,
the embedded VIA C3
E-Series requires only a small fan to guarantee
TM
performance and reliability. Ensure that the CPU Fan Connector is
correctly installed, as displayed below.
CPU Fan Cable
CPU Fan / Heatsink
CPU Fan Connector
