TimeFactor User Guide
The following describes the control knob functions for the nine delay effects. The Looper
requires special controls that are described in the Looper Section of this User Guide.

Dly Mix

Dly Mix (Delay Mix) controls the relative level of the twin delays, Delay A and Delay B.
TimeFactor has circuitry that detects which input/output jacks are being used and adjusts the
routing of signals through the Effects algorithm accordingly.
Dly Mix's mixing behavior depends on whether you're using mono or stereo outputs. You
only need to read the section that corresponds to your setup.
Mono Out (Output 1) – Typical for Guitar and Amp
With Dly Mix set to 0%, Output 1 will have only Delay A's contribution.
When set to 50%, Output 1 has an equal amount of Delay A and Delay B.
When set to 100%, Output 1 will have only Delay B's contribution.
Stereo Out – Typical for Guitar and Two Amps or Mixing Console
With Dly Mix set to 0%, BOTH outputs will have only Delay A's contribution.
When set to 50%, Delay A goes to Output 1 only and Delay B goes to Output 2 only.
When set to 100%, BOTH outputs will have only Delay B's contribution.

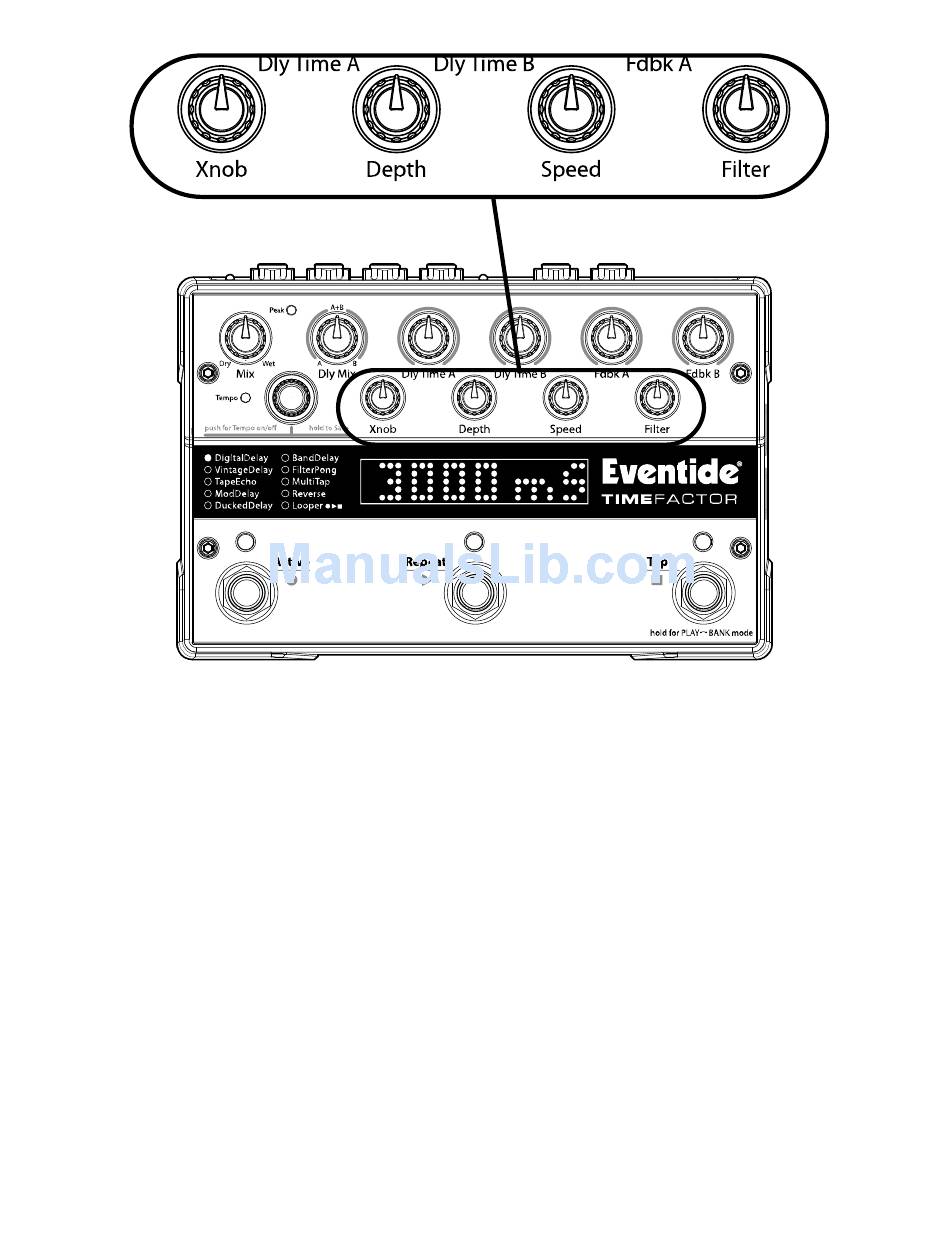

Control Knobs/Effect Parameters
21
