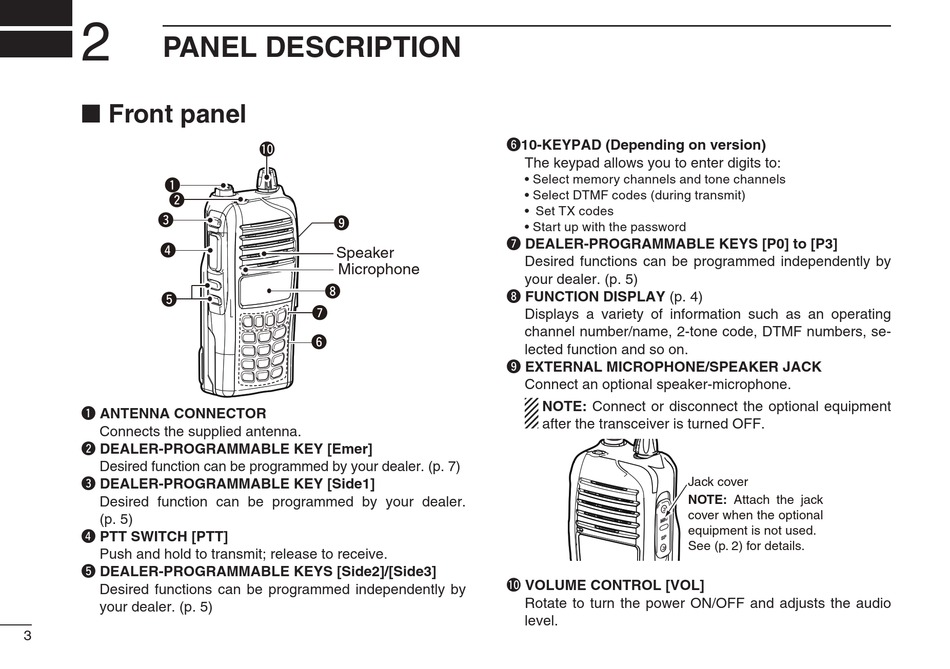

PANEL DESCRIPTION

Front panel

■
q
w
e
r
t
q ANTENNA CONNECTOR
Connects the supplied antenna.
w DEALER-PROGRAMMABLE KEY [Emer]
Desired function can be programmed by your dealer. (p. 7)
e DEALER-PROGRAMMABLE KEY [Side1]
Desired function can be programmed by your dealer.
(p. 5)
r PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
t DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
Desired functions can be programmed independently by
your dealer. (p. 5)
3
!0
o
Speaker
Microphone
i
u
y
y10-KEYPAD (Depending on version)
The keypad allows you to enter digits to:
• Select memory channels and tone channels
• Select DTMF codes (during transmit)
• Set TX codes
• Start up with the password
u DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer. (p. 5)
i FUNCTION DISPLAY (p. 4)
Displays a variety of information such as an operating
channel number/name, 2-tone code, DTMF numbers, se-
lected function and so on.
o EXTERNAL MICROPHONE/SPEAKER JACK
Connect an optional speaker-microphone.
NOTE: Connect or disconnect the optional equipment
after the transceiver is turned OFF.
!0 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
Jack cover
NOTE: Attach the jack
cover when the optional
equipment is not used.
See (p. 2) for details.
