Accessories - Icom IC-F3032T Instruction Manual

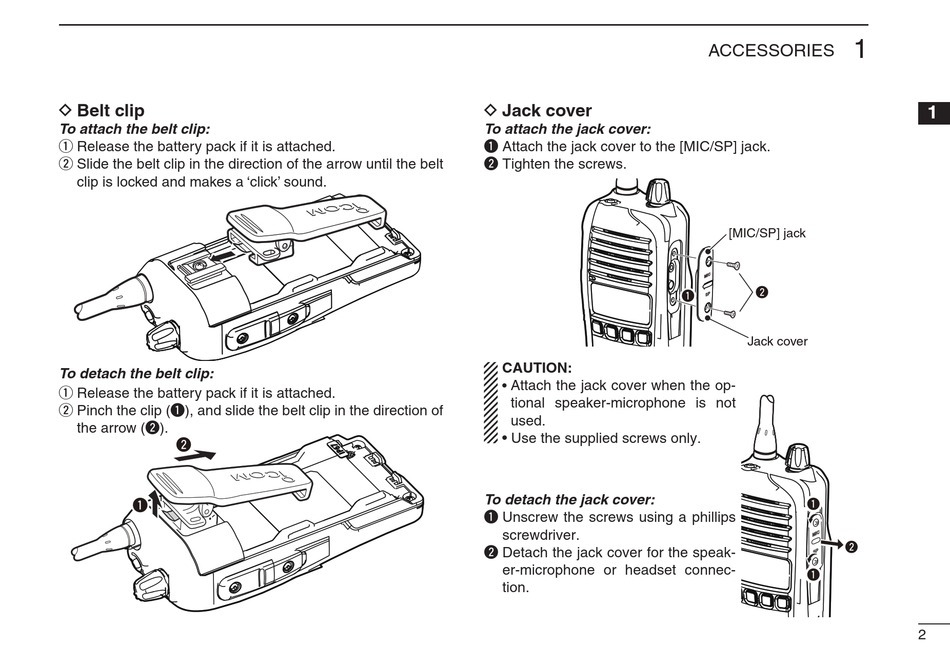

D Belt clip
To attach the belt clip:
Release the battery pack if it is attached.
q
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a 'click' sound.
To detach the belt clip:
Release the battery pack if it is attached.
q
Pinch the clip ( q), and slide the belt clip in the direction of
w
the arrow (w).
w
q
D Jack cover
To attach the jack cover:
q Attach the jack cover to the [MIC/SP] jack.
w Tighten the screws.
CAUTION:
Attach the jack cover when the op-
•
tional speaker-microphone is not
used.
• Use the supplied screws only.
To detach the jack cover:
q Unscrew the screws using a phillips
screwdriver.
w Detach the jack cover for the speak-
er-microphone or headset connec-
tion.
1

ACCESSORIES

[MIC/SP] jack
w
q
Jack cover
q
w
q
1
2
