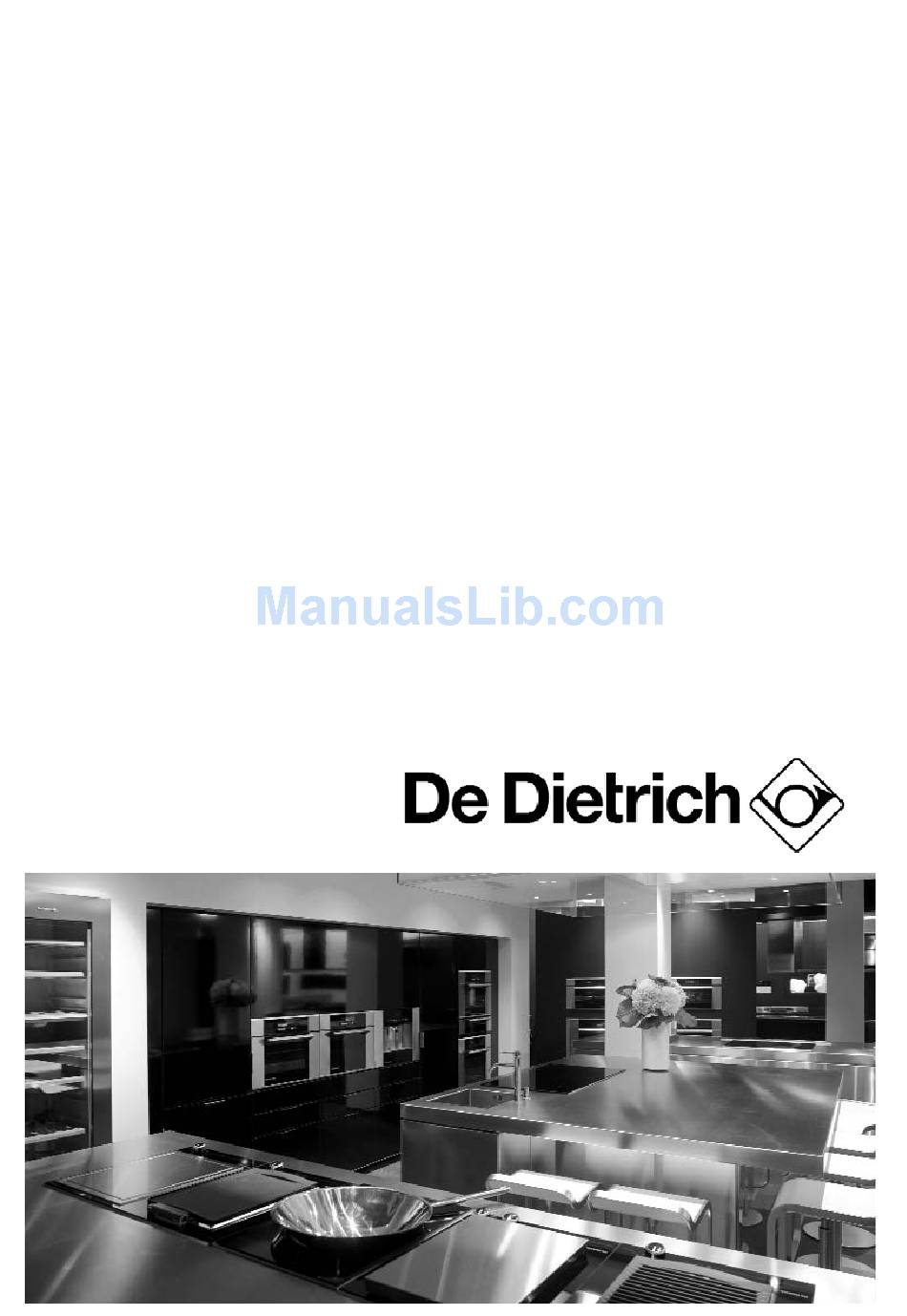

- Page 1 GUIDE D’UTILISATION USER GUIDE MANUAL DE UTILIZACIÓN MANUAL DE UTILIZAÇÃO BETRIEBSANLEITUNG Four Oven Horno Forno Backofen...
- Page 2 Then comes the irresistible urge to touch. De Dietrich design makes the most of sturdy and noble materials; priority is given to authenticity.
-
Page 3: Table Of Contents
CONTENTS 1 / DESCRIPTION OF YOUR APPLIANCE • Introduction to your oven ____________________________________ • Description of controls ______________________________________ 2 / USING YOUR APPLIANCE • Cooking or defrosting_______________________________________ • Settings when switching on for the first time ___________________ • Resetting the time__________________________________________ •... -
Page 4: Description Of Your Appliance
1 / DESCRIPTION OF YOUR APPLIANCE INTRODUCTION TO YOUR OVEN • Control panel Cavity Door handle... -
Page 5: Description Of Controls
1 / DESCRIPTION OF YOUR APPLIANCE DESCRIPTION OF CONTROLS • Selector buttons Switch off the oven or cooking programme Back to the previous level Information display Keypad locking Confirm button “Wake up” button (emerge from standby) List of symbols: Programming in progress... -
Page 6: Using Your Appliance
“EXPERT” function. - For a recipe where you need assistance from the oven (simply choose the type of food from a list and the weight; the oven will select the most suitable settings: temperature, cooking time, type of cook- ing): select the “RECIPES”... -
Page 7: Settings When Switching On For The First Time
OK. RESETTING THE TIME • - Press the OK button. EXPERT The oven displays the following screen by default (“Expert”) function. - Press the < and > buttons until the 21 21 “Settings” screen appears, confirm with OK. -
Page 8: Standby Mode
(except for a delayed start) and the button starts flashing. The screen is then in standby mode. To activate the oven and restore the display to full brightness, press few seconds the “wake up” button The screen shows the time again. - Page 9 2 / USING YOUR APPLIANCE “EXPERT” COOKING GUIDE • MICROWAVE (recommended power setting 1000 W min 100 W max 1000 W) DEFROST (fixed power setting 200 W) MICROWAVE & FAN (recommended temperature 200°C min 50°C max 250°C and recommended power setting 500 W min 100 W max 500 W) MEDIUM POWER GRILL (recommended position 2 - min 1 - max 3 and recommended power setting 500 W min...
- Page 10 (recommended temperature 200°C min 50°C max 250°C) •Cooking is controlled by the heating element at the bottom of the oven and by the fan. •Rapid temperature increase: Some dishes can be placed in the oven while it is still cold.
- Page 11 2 / USING YOUR APPLIANCE “EXPERT” FUNCTION • The oven asks you to enter the following cooking settings: Non-microwave cooking: Temperature Optional cooking time Micro-wave cooking Power Cooking time. Combined cooking + microwave: Temperature Power Cooking time. • Temperature Based on the type of cooking you already...
- Page 12 Once you have selected the cooking end time, confirm. Your oven will display the time and the end of cooking time symbol until cooking starts. • “Grill +” Select the “Standard” symbol and then confirm by pressing OK.
- Page 13 • Starting a cooking programme For cooking using circulating heat or turbo grill: When cooking begins, the following screen is displayed, indicating that the oven is in rapid heating mode (Booster). You can monitor the EXPERT progress of the temperature rise in the oven by looking at the shading in the arrow.
-
Page 14: Microwave Cooking
- To obtain the most even reheating. - To avoid the food drying out. - To reduce the reheating time. - To prevent food spatter in the oven. The foods keep all their flavour due to the steaming effect. Type of food... -
Page 15: º Defrost
2 / USING YOUR APPLIANCE DEFROST Using your micro-wave oven to defrost frozen food saves you a lot of time. To defrost food, use the AUTOMATIC DEFROST function or the MICROWAVE function set to power level 200 W. What you need to know: Small cuts of meat or fish can be cooked immediately after defrosting. -
Page 16: Defrost Guide
2 / USING YOUR APPLIANCE DEFROST GUIDE Food Quantity Time Recommendations Place on absorbent paper and turn Flaky or short crust pastry 400 g 1 - 3 min over half way through. Food Quantity Time Recommendations Scallops 500 g 5 - 7 minutes Place on a plate, mix midway Shelled prawns 100 g... -
Page 17: º Microwave + Fan
3. Note: Never preheat your oven when using the microwave + circulating heat function. It could damage your appliance. Use a heat-resistant, microwave-safe dish, preferably earthenware (fewer splashes than with a glass dish). -
Page 18: º Combi Grill
2 / USING YOUR APPLIANCE COMBI GRILL This function lets you use the grill and the micro-wave simultaneously, which makes cooking very quick. There are two grill + microwave settings: Full grill + microwave and low grill + microwave You can combine them using the following seven power settings: 100 W/200 W/300 W/400 W/ 500 W/ 600 W/700 W COMBI GRILL COOKING GUIDE Use a heat-resistant, microwave-safe dish, preferably earthenware (fewer splashes than with a... -
Page 19: º Conventional Microwave
When using the “conventional” cooking + microwave function, do not use a metal plate. Note: Never preheat your oven when using the microwave + conventional function. It could damage your appliance. Use a heat-resistant, microwave-safe dish, preferably earthenware (fewer splashes than with a glass dish). -
Page 20: º Conventional
2 / USING YOUR APPLIANCE “CONVENTIONAL” Cooking done using the upper and lower heating elements without the fan. The cooking temperature is adjustable between 35 and 250°C in increments of 5°C. TURBO GRILL Cooking is done by the grill element + the fan, which gives even coking for thick foods.. The cooking temperature is adjustable between 50 and 200°C in increments of 5°C. -
Page 21: Fan Cooking
Use cookware designed to withstand high temperatures. If you want to do a defrost after cooking with one of the circulating heat functions, we recommend waiting for about ten minutes to allow the oven to cool down in order to obtain the best results. - Page 22 Thin flaky crust tart * 220 °C 30-40 Other Pâté (1 kg) 200 °C 80-90 40-65 Quiche 30-35 Covered stews (beef casserole, etc.) 90-180 Bread (500 g flour) * 205 °C 25-40 Toast * Preheat the oven to the temperature indicated before cooking.
- Page 23 Pâté (1 kg) 200 °C 80-90 180 °C 170 °C 40-65 Quiche 205 °C 30-35 Covered stews (beef casserole, etc.) 160 °C 90-180 Bread (500 g flour) 205 °C 25-40 Toast * Preheat the oven to the temperature indicated before cooking.
-
Page 24: Recipes" Function (+ Guides)
1. Press the < and > buttons. Select “Recipes” and confirm. RECIPES 2. The oven gives you the option of choosing from a list of different foods. Press the < and > buttons to choose from the following list: ·... - Page 25 4. Put your dish in the oven. 5. Confirm by pressing OK; the oven BON APPETIT ! switches on. 6. The oven beeps and switches off when the cooking time has finished and and animation wishes you “Bon appetit!”. GUIDE TO THE “RECIPES” FUNCTION Function Max.
- Page 26 Whole chicken: place the dish on the shelf on level 1. Chicken thighs: Up to 900 g, put the drip-tray on level 2. When cooking has finished, leave the poultry to rest for 5 mins in the oven before tasting.
- Page 27 Remove the product from its packaging and place it in a heat-resistant dish Frozen meals suitable for use in a microwave oven. It is preferable to choose a dish with the same dimensions as the preparation. Do not cover. Place the dish on the level 1.
- Page 28 2 / USING YOUR APPLIANCE GUIDE TO THE “RECIPES” FUNCTION This function allows you to cook and brown fresh quiches from 27 to 30cm in diameter. Cooking is done using the combined microwave + heat circulation function. Use a heat-resistant, microwave-safe tart mould (Pyrex, porcelain, etc.). Fresh quiche When you use ready-made pastry, do not remove the grease-proof paper.
-
Page 29: Auto Defrost" Function
1. Press the < and > buttons. Select “Auto Defrost” and confirm. 2. The oven gives you the option of choosing from a list of different foods. Press the < and > buttons to choose from the... -
Page 30: Settings" Function
- Clock (see beginning of this section) - Sound - Display - Consumption - Language - De Dietrich services Sound: Press the < or > buttons and until you reach the “Sound” screen. Sound Adjustment of the sound emitted when... -
Page 31: º Consumption
“SETTINGS” FUNCTION Consumption: - Adjusting electricity consumption: By accessing this screen, you will be able to view the energy consumption of your oven since the last time it was reset to zero Consumption (RESET). If you have an energy bill arrangement with... -
Page 32: º Services
Select this option to access the minute minder function. This function is accessible, so long as the MINUTE MINDER oven is not in pyrolysis mode. Press the < and > buttons until “Minute minder” is displayed then confirm. The displays flashes 00:00:00. -
Page 33: Control Panel Locking (Child Safety Device)
Set the time to 0:00. Confirm. Press and hold the < and > buttons simultaneously for 10 seconds until the word “DEMO” disappears from the display. Warning When your oven is in “Demo” mode, the heating elements are not operative. -
Page 34: Function Suitability Tests
3 / FUNCTION SUITABILITY TESTS Functional suitability tests in accordance with IEC/EN/NF EN 60705 standards. The International Electrotechnical Commission, SC.59K, has established a standard for comparative performance tests conducted on various micro-wave ovens. We recommend the following for this appliance: Test Load Approx. - Page 35 3 / FUNCTION SUITABILITY TESTS...
-
Page 36: After-Sales Service
4 / AFTER-SALES SERVICE • ANY REPAIR Any repair to your appliance must be made by a qualified professional, authorised to work on the brand. When you call, state your appli- ance’s complete reference information (model, type, serial number). This information appears on the manufacturer’s nameplate (Fig.
