APPENDIX C: MM-4XP CABLE ASSEMBLY
3. Solder the five exposed conductors to the five pins on the EN3 cord connector using the following wiring scheme.
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)

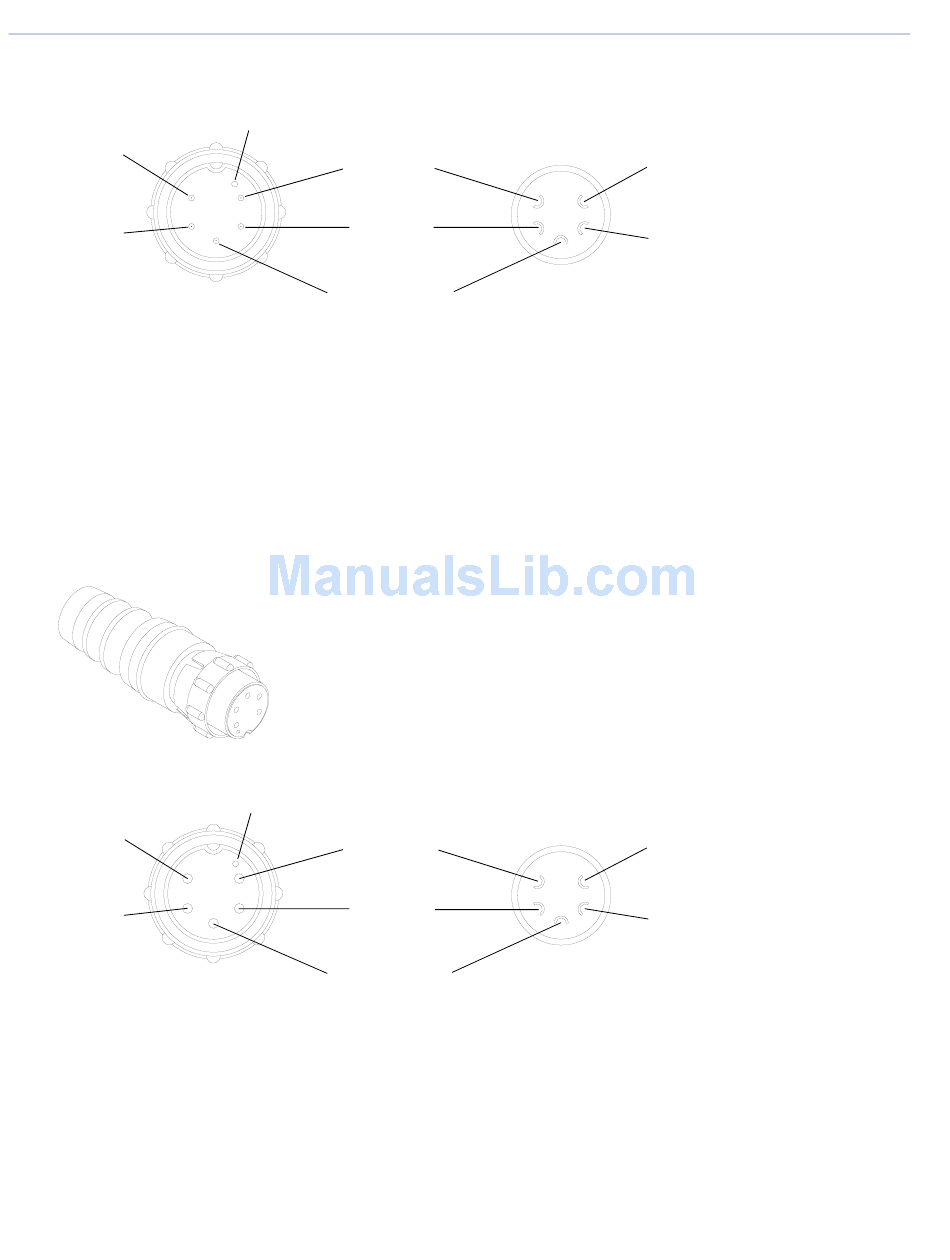

Pin Destinations for EN3 5-Pin Male Cable Mount Connector
4. Reassemble the EN3 5-pin male connector:
■ Align the coupling ring's side notches with the cord connector's side notches and slide the couple ring onto the cord
connector.
Carefully insert the end of the cable clamp housing into the cord connector until it locks into place. Snap the cable
■
clamps in the cable clamp housing into their compartments.
■ Slide the boot forward so it covers the cable clamp housing completely.
5. Repeat the previous steps to attach the EN3 5-pin female connector to the other end of the cable.
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)
Pin Destinations for EN3 5-Pin Female Cable Mount Connector
28
Dimple identifies Pin #1
Pin #1, Black,
48 V DC (–)
Pin #2, Red,
48 V DC (+)
FRONT Pin #3, Unshielded,
audio shield
Dimple identifies Pin #1
Pin #1, Black,
48 V DC (–)
Pin #2, Red,
48 V DC (+)
FRONT Pin #3, Unshielded,
audio shield
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)
REAR
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)
REAR
