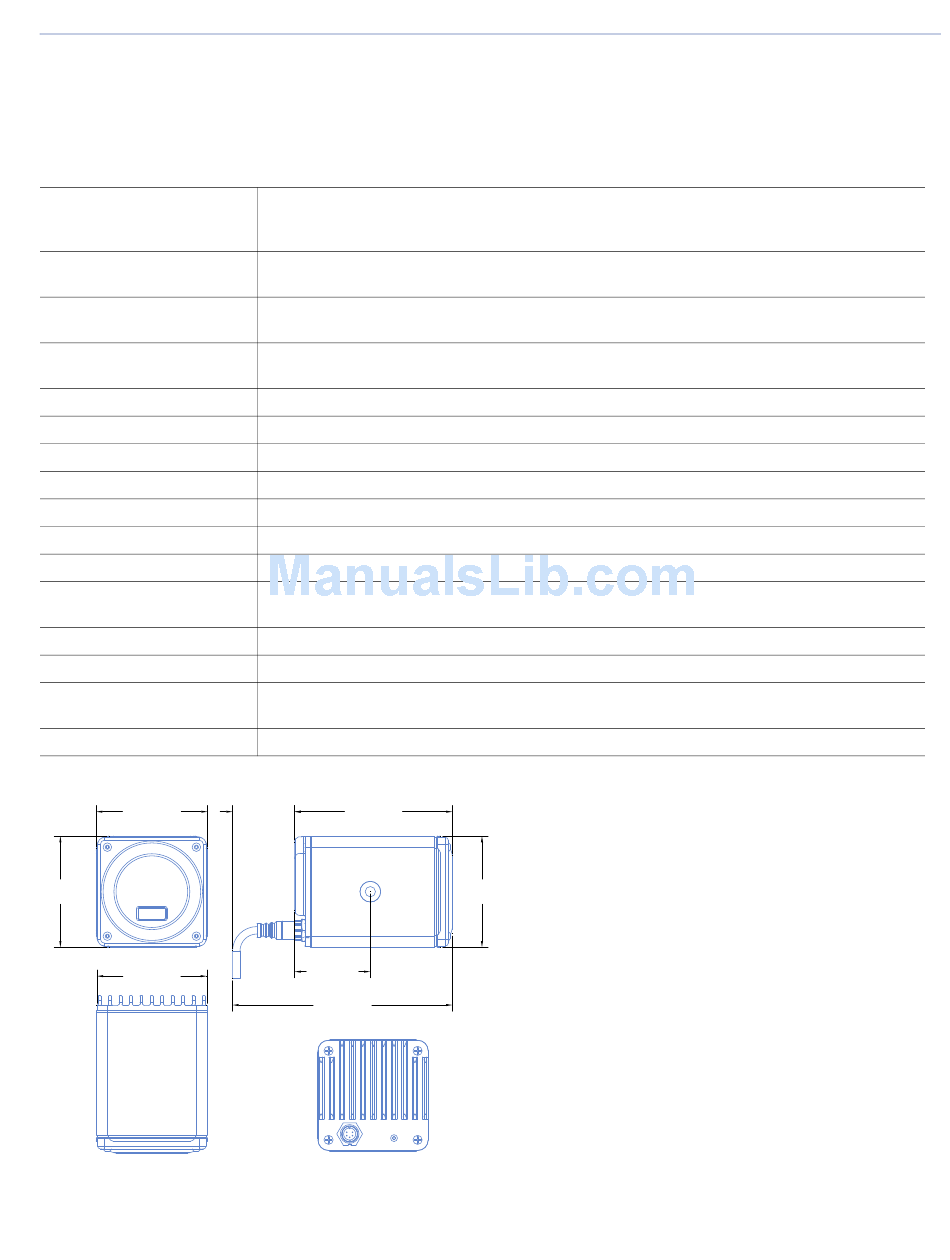

APPENDIX A: SPECIFICATIONS

MM-4XP SPECIFICATIONS

Operating Frequency Range
Frequency Response
Maximum Peak SPL
Dynamic Range
Phase Response
Coverage
Transducer
Voltage Requirement
Audio/Power Connector
Input Impedance
Nominal Input Sensitivity
Input Level
Current Draw
MM-4XP Dimensions
MM-4XP Weight
4.04
[102.50mm]
4.04
102.50mm]
3.99
[101.35mm]
MM-4XP Dimensions
120 Hz – 18 kHz
Note: Recommended maximum operating frequency range. Response depends on loading conditions and
room acoustics.
160 Hz – 16 kHz ±4 dB
Note: Measured free-field with pink noise at 1 meter, 1/3rd octave resolution.
113 dB
Note: Measured free-field with music and referred to 1 meter.
100 dB
Note: Taken from peak SPL referred to A-wtd noise floor.
700 Hz – 17 kHz ±45°
80° (3 kHz – 14 kHz ±10°); 120° (below 2 kHz)
One 4" cone driver
48 V DC
Single EN3 5-pin male (3 pins for balanced audio, 2 pins for DC power)
10 kΩ electronically balanced
–2.5 dBV (0.75 V rms, 1.0 V peak) continuous average is typically the onset of limiting for noise and music
Audio source must be capable of producing +16 dBV (6.3 V rms, 9.0 V peak) into 600 Ω to produce maxi-
mum peak SPL over the operating bandwidth of the loudspeaker
0.7 A average; 2.2 A peak
LED
To indicate loudspeaker status
4.04" W x 4.04" H x 5.72" D
(102.50 mm x 102.50 mm x 145.38 mm)
4.2 lbs (1.91 kg)
2.25
5.72
[57.20mm]
[145.38mm]
2.75
[69.75mm]
7.98
[202.58mm]
4.04
[102.50mm]
21
