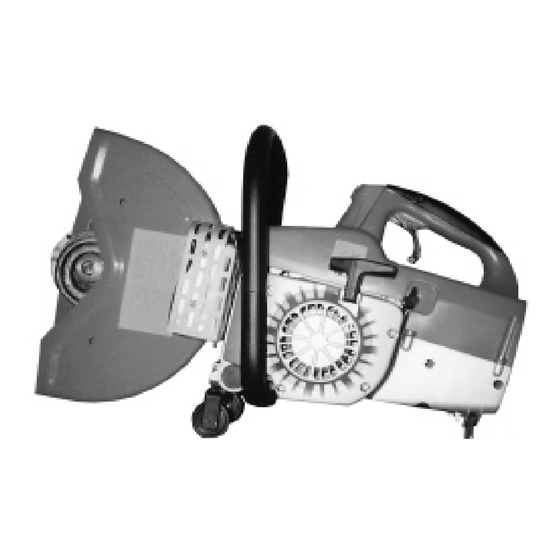

14” gas portable cut off saw

Advertisement

14" GAS PORTABLE CUT
ASSEMBLY AND OPERATING INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
You do not operate the Cut Off Saw with the proper 50:1 fuel mix in its Fuel Tank.
SEE PAGES 12 AND 13 OF THIS MANUAL FOR FUEL MIX INSTRUCTIONS.
Never run the Engine with an improper fuel mix, low or no fuel mix.
Running the Engine with an improper fuel mix, low or no fuel mix will permanently damage the unit.
Visit our Web site at: http://www.harborfreight.com
Copyright
2006 by Harbor Freight Tools
©
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
OFF SAW
Model
CAUTION!
Your Warranty Is Voided If:
3491 Mission Oaks Blvd., Camarillo, CA 93011
TO PREVENT SERIOUS INJURY, READ
AND UNDERSTAND ALL WARNINGS AND
INSTRUCTIONS BEFORE USE.
®
94488
. All rights reserved. No portion of this

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 94488 and is the answer not in the manual?

Questions and answers

Eduardo ruiz
April 28, 2025

What's the part number for the 7A Rope Rotor replacement part or a link where to buy it by it self or even if it comes with more parts

Subscribe to Our Youtube Channel

Summary of Contents for Chicago Electric 94488

  • Page 1 14” GAS PORTABLE CUT OFF SAW Model 94488 ASSEMBLY AND OPERATING INSTRUCTIONS Due to continuing improvements, actual product may differ slightly from the product described herein. CAUTION! Your Warranty Is Voided If: You do not operate the Cut Off Saw with the proper 50:1 fuel mix in its Fuel Tank.
  • Page 2: Product Specifications

    Do not operate power tools in explosive atmospheres, such as in the pres- ence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 2...
  • Page 3: Personal Safety

    Many accidents are caused by poorly maintained tools. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool may become hazardous when used on another tool. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 3...
  • Page 4 When spills of fuel or oil occur, they must be cleaned up immediately. Dispose of fluids and cleaning materials as per any local, state, or federal codes and regula- tions. Store oil rags in a covered metal container. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 4...
  • Page 5: Mechanical Precautions

    ANSI-approved hearing protection when operating or working around the Cut Off Saw when it is running. SAW BLADE PRECAUTIONS Only use Saw Blades with the following specifications: 14” Diameter. From 7/64” to 1/4” thickness. 1” Diameter spindle mounting hole. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 5...
  • Page 6 Causes and operator prevention of “kickback”: Kickback is a sudden reaction to a pinched, bound, or misaligned Saw Blade, causing an uncontrolled Cut Off Saw to lift up and out from the workpiece toward the operator. When the Saw Blade For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 6...
  • Page 7 Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 7...
  • Page 8: Product Features

    Flanges (22F): Clamp and support the composite or diamond Saw Blade (23F). Hex Bolt (25F): Tightens the Flange (22F). Blade Guard (19F): Safety guard. Directs sparks and dust away from the opera- tor. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 8...
  • Page 9 Blade Guard Positioning Knob (38F): Loosen the Knob to adjust the Blade Guard (19F) position. Shaft Lock (34F): Press and hold the Shaft Lock to facilitate Saw Blade (23F) changing and installation. REV 07e For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 9...
  • Page 10 (NOT INCLUDED) 2E, 3E FIGURE A For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 10...
  • Page 11: Pre-Start Instructions

    Refer to the Chart below for proper mix quanti- ties. NOTE: Mix only enough fuel for a few days work. The maximum storage time of mixed fuel is 3 months. (See Table A.) For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 11...
  • Page 12: Operating Instructions

    FIGURE B Pull the Throttle Trigger (10D) all the way back, press down on the Full Throttle Lock Button (9D) and Release the Throttle Trigger (10D). (See Figure B.) REV 07e For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 12...
  • Page 13 Trigger (10D) beyond 3/4 of full throttle). Following this procedure will lengthen the service life of the Saw. After running the Cut Off Saw for an extended period of time, allow the Engine to REV 07e For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 13...
  • Page 14: Inspection, Maintenance, And Cleaning

    Turn the Tensioning Nut counterclockwise to decrease tension on the V-Belt (or turn the Bolt (14F) clockwise or counterclockwise). (See Figure C.) Tighten the three Hex Bolts (11F) on the Bearing Plate (12F). (See Figure C.) REV 07e For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 14...
  • Page 15 Spark Plug. To check the Spark Plug: Remove the Spark Plug Cover (4D) located at the front of the Rear Handle (7D). (See Figure E.) REV 07e For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 15...
  • Page 16 For long periods of storage, drain and clean the Fuel Tank (2C, 10C). CAUTION! All maintenance, service, or repairs not mentioned in this manual must only be performed by a qualified service technician. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 16...
  • Page 17: Troubleshooting

    SUMES ALL RISKS AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGI- NAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. REV 07e For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 17...
  • Page 18 Cover Crankshaft Housing (Left) Plug Ball Bearing (6203) Spark Plug Wire NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 18...
  • Page 19 29A Collar Nut (M8 x 1) 15A Piston Pin 30A Rope Bushing 27A 28A NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 19...
  • Page 20 12B Screw M5 x 12 Washer 13B Gasket, Cylinder Base Decompression Valve NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. REV 07i For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 20...
  • Page 21 23C Screw Bracket 12C Sleeve 24C Screw (M4 x 5) 23C 24C NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 21...
  • Page 22 16D Positioning Plank Torsion Spring 17D Retainer Ring 4 Control Button NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 22...
  • Page 23: Air Filter Assembly

    15E Pin (B3 x 32) Half Round 16E Screw (M5 x 12) NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 23...
  • Page 24 19F Blade Guard Assy. 38F Blade Guard Positioning Knob 22F 24F INCLUDED 21F 22F NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 24...
  • Page 25 Screw (M5 x 24) Support Spring Lock (8) 10G Wheel Shaft NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 25...
  • Page 26 If any emission related part on your engine is defective, the warranty station authorized by HFT. For emissions warranty part will be repaired or replaced by HFT. For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 26...
  • Page 27: Service And Maintenance

    Cold start enrichment system. Air Induction System Intake pipe/manifold. Air cleaner. Ignition System Spark plug. Magneto ignition system. Catalyst System (if so equipped) Exhaust pipe stud. Muffler. iii) Catalytic converter (if so equipped). For technical questions, please call 1-800-444-3353 SKU 94488 PAGE 27...
