KTL22 - KTL22C
8.2 KTL22C
1.

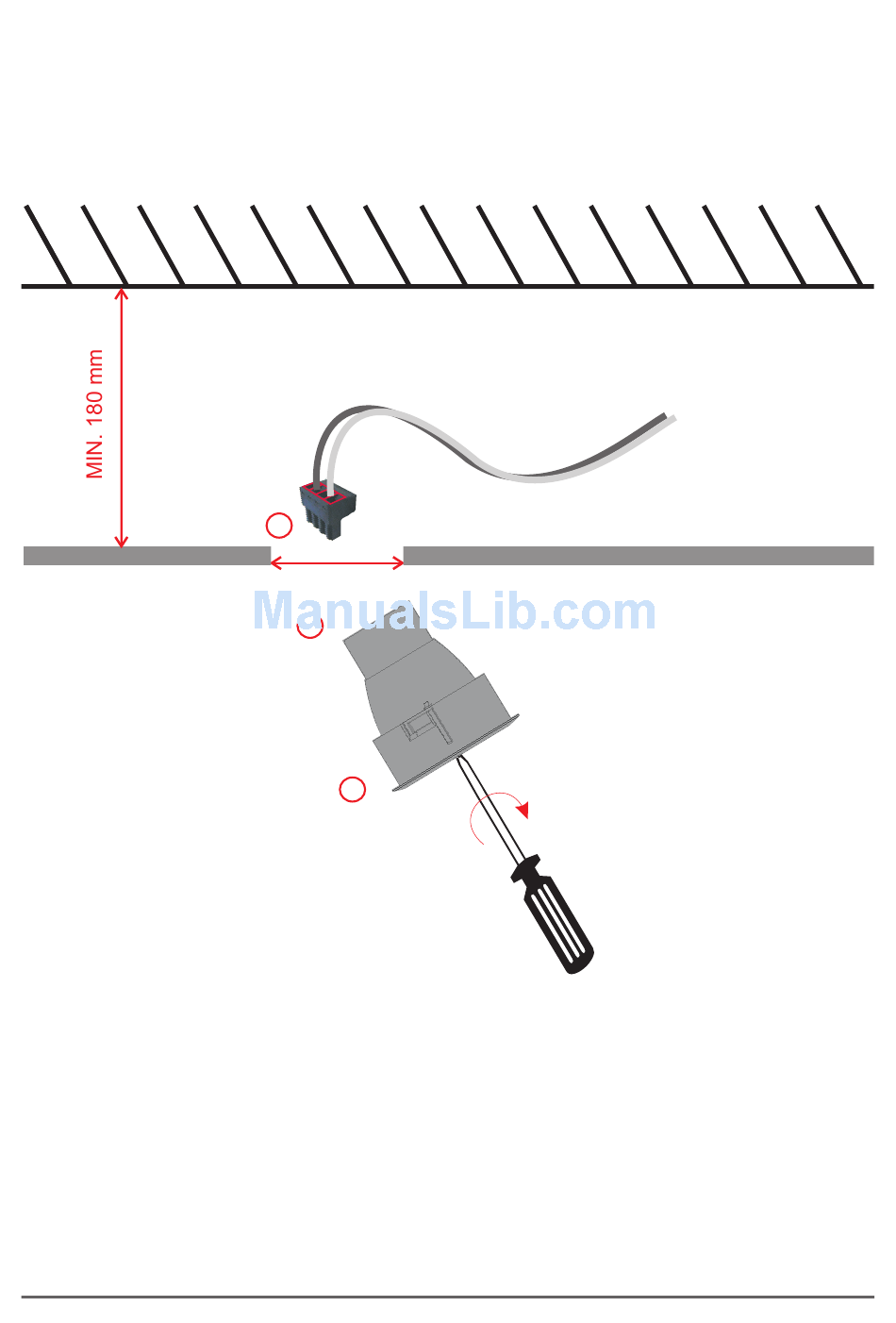

Make a 76 mm diameter mounting hole in the false ceiling. Attention: for a correct
connection to the fixture at least 180mm of depth is required behind the false ceiling.
2.
Connect the cables coming from the amplifier and the DMX controller to the Phoenix
connectors. The cable(s) must respect the correct wiring indications.
16
1
74,50
2
3
ceiling
false ceiling
PRELIMINARY
