7. REAR PANEL AND WIRING
1
2

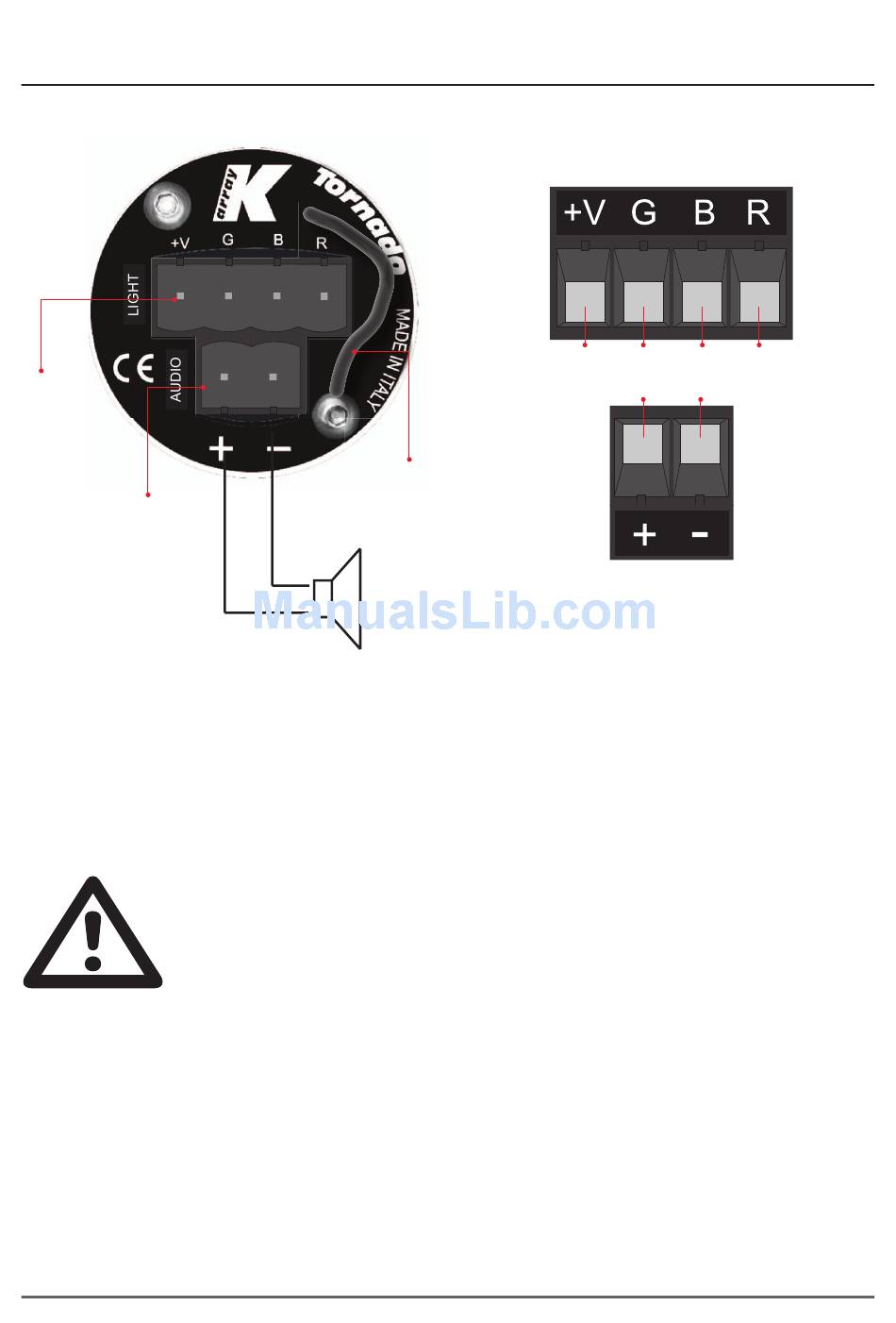

1. 4-pin light controller connector.
2. 2-pin audio input connector.
3. Flexible Holder for cable connection
Have care in respecting the polarity and the maximum DC voltage. An
inverted polarity or a different voltage could damage the device or part
of its component parts.
PRELIMINARY
WARNING
Included female Phoenix connectors
3
4. Common positive DC power (24V) for
RGB LEDs .
5. Negative DC power for Green LED.
6. Negative DC power for Blue LED
7. Negative DC power for Red LED
8. Positive AUDIO INPUT
9. Negative AUDIO INPUT
KTL22 - KTL22C
4
6
5
8
9
7
