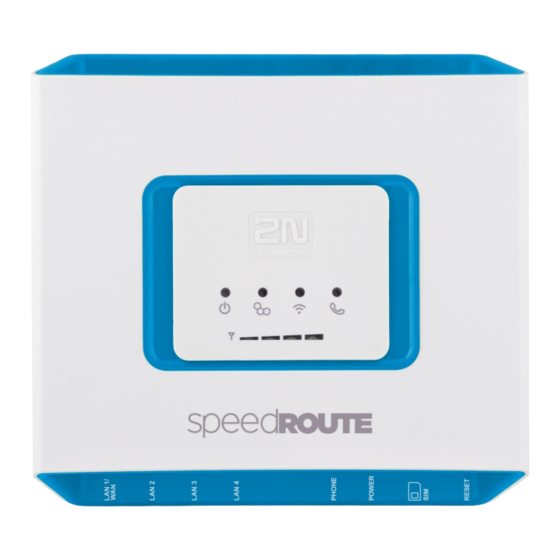

2N SpeedRoute User Manual

Lte/hspa+ data gateway
Hide thumbs Also See for SpeedRoute:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
®

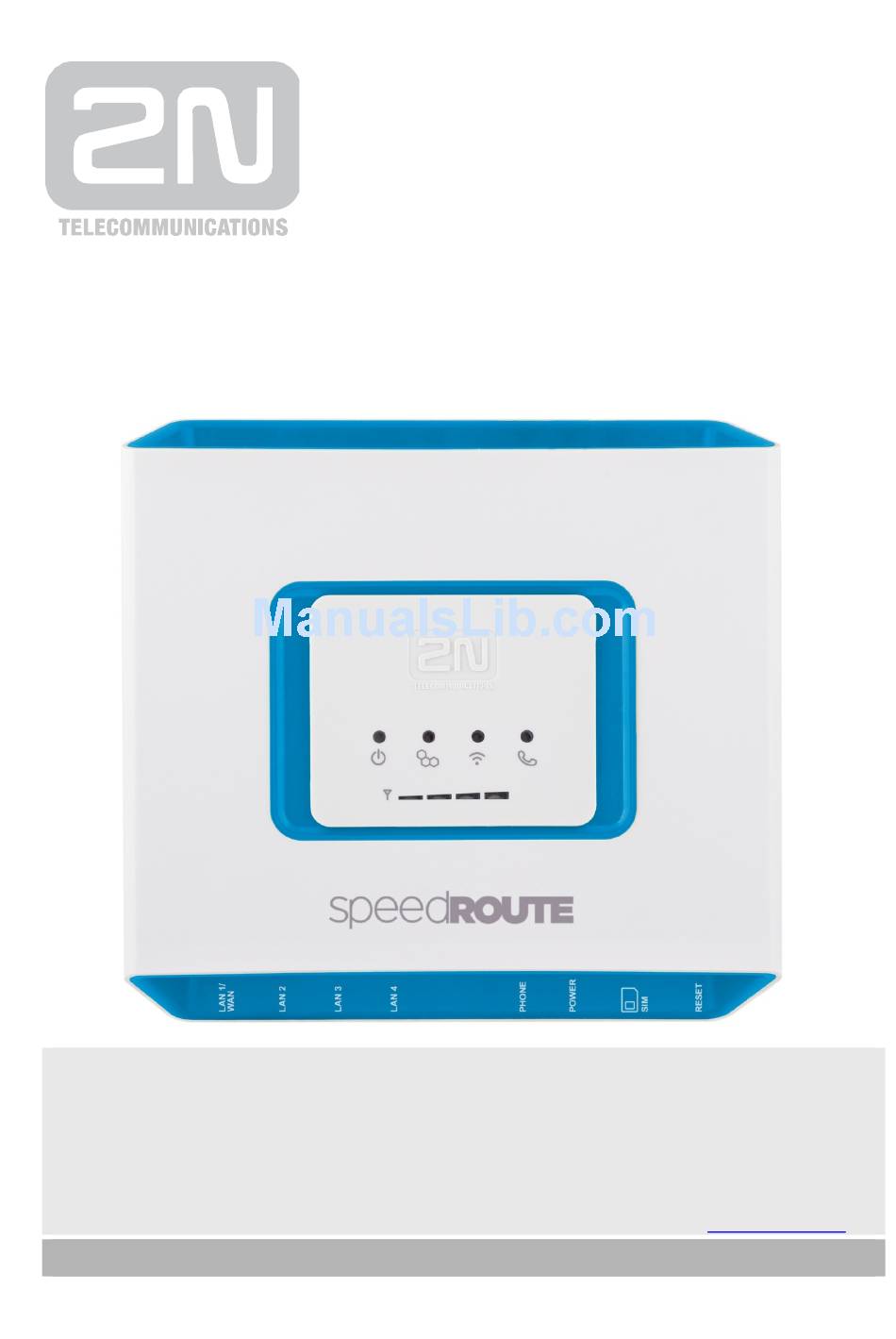

2N
SpeedRoute
LTE/HSPA+ Data Gateway

User Manual

Version
1.01
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpeedRoute and is the answer not in the manual?

Questions and answers

Related Manuals for 2N SpeedRoute

Summary of Contents for 2N SpeedRoute

  • Page 1: User Manual

    ® SpeedRoute LTE/HSPA+ Data Gateway User Manual Version 1.01 www.2n.cz...
  • Page 2 2N TELEKOMUNIKACE administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...“.

  • Page 3: Table Of Contents

    1. Product Overview ............. 5 Product Description ....................6 Basic Features ......................6 ® Advantages of 2N SpeedRoute Use ................6 Safety Precautions ....................... 7 Changes in Documentation ..................8 Terms and Symbols Used ..................9 Symbols in Manual ....................... 9 Future Functions ......................
  • Page 4 WiFi Interface ......................66 SIM Card PIN Protection ..................67 Web Interface PIN Entering ..................67 Automatic PIN Entering ....................67 5. Technical Parameters ............ 69 Technical Parameters ....................70 Product versions ......................70 Network – LTE version ....................70 Network –...

  • Page 5: Product Overview

    Product Overview ® In this section, we introduce the 2N SpeedRoute product, outline its application options and highlight the advantages following from its use. This chapter also includes safety instructions. Here is what you can find in this section: Product Description...

  • Page 6: Product Description

    Advantages of 2N SpeedRoute Use Fast data connection ® SpeedRoute transmits data using the high speed LTE connection (up to 100 Mbps downlink and 50 Mbps uplink) or HSPA+ connection (up to 21 Mbps downlink and 5,76 Mbps uplink). Easy installation ®...

  • Page 7: Safety Precautions

    Product Description WiFi ® SpeedRoute helps you connect a PC and other devices using the WiFi 2.4 GHz or 5 GHz interface. The standards 802.11a/b/g/n are supported. Safety Precautions ® Do not switch on 2N SpeedRoute in the vicinity of medical apparatuses to avoid interference.

  • Page 8: Changes In Documentation

    1.01 HSPA+ version included Caution The manufacturer is committed to meeting customers’ requirements by ® improving the firmware. For the latest 2N SpeedRoute processor firmware and the User Manual see www.2n.cz. ® For a detailed description of the 2N SpeedRoute firmware upgrade refer ®...

  • Page 9: Terms And Symbols Used

    Important information for system functionality. Useful advice for quick and efficient functionality. Note Routines or advice for efficient use of the device. Future Functions ® grey-marked text in this document designates the 2N SpeedRoute functions that are under preparation or development at present.

  • Page 11: Description And Installation

    Description and Installation ® This section describes the 2N SpeedRoute product and its installation. Here is what you can find in this section: Description Before You Start Mounting...

  • Page 12: Description

    Description 2.1 Description ® The 2N SpeedRoute status is indicated by the LED on its front side. All connecting points, excluding antennas, are placed on the connector panel. Figure 2.1 Power Supply ® SpeedRoute Blue light Power supply is connected.

  • Page 13: Before You Start

    SpeedRoute on sites exposed to direct solar radiation or near heat sources. ® SpeedRoute is designed for indoor use. It may not be exposed to rain, flowing water, condensed moisture, fog, etc. ® SpeedRoute may not be exposed to aggressive gas, acid vapours, solvents, etc.

  • Page 14: Mounting

    When the outside antenna is used, the installation must be done according appropriate standards (grounding, overvoltage protection). SIM Card Installation ® Release the safety pin and open the SIM cardholder on the 2N SpeedRoute backside. Insert the SIM card and click the holder back into position. Figure 2.3...

  • Page 15: Power Supply

    SIM card in 2N SpeedRoute. Power Supply ® SpeedRoute is powered with 10–16V DC. Where a source other than the included power adaptor is used, the correct voltage must be used. Power Supply ® SpeedRoute is fed with 10–16V DC. Where a source other than the included power supply adapter is used, the correct voltage range must be connected.

  • Page 17: Speedroute Configuration

    ® SpeedRoute Configuration ® This section describes configuration of the 2N SpeedRoute product. Here is what you can find in this section: ® SpeedRoute Configuration Table of Programmable Parameters...

  • Page 18: Speedroute Configuration

    ® SpeedRoute is configured via a user-friendly network web interface. ® SpeedRoute is factory set to make administration as easy as possible. PC Connection You have received a Fast Ethernet cable for PC connection. The DHCP server is active in the gateway and assigns your PC an IP address ranging from 192.168.1.100 to ®...
  • Page 19 2N® SpeedRoute Configuration The default values for the User are as follows: Initial username: User Password: The User is authorised to work with SMS, access the call register and manage the User password. Caution We recommend that you should change the web access username and...

  • Page 20: Table Of Programmable Parameters

    Table of Programmable Parameters 3.2 Table of Programmable Parameters ® All programmable parameters of 2N SpeedRoute are listed in this subsection. The ® unit used, description of 2N SpeedRoute's behaviour upon a change, setting options, the setting step and the default (initialisation) setting are included for each parameter.
  • Page 21 Table of Programmable Parameters Icons There are three navigation icons in the right-hand upper corner of the screen for you to access the SETUP, SMS and STATUS menus quickly and easily. The following basic control buttons are located in the right-hand bottom corner of the configuration interface: Refresh –...

  • Page 22: Status Menu

    Table of Programmable Parameters Connect – connect to the UMTS network manually. Disconnect – disconnect from the UMTS network manually. Sale – generate a new HotSpot ticket. Reboot – restart of the device Menu The left-hand section of the screen shows menus that can be opened by a mouse click.

  • Page 23: Connection Type

    (e.g. requires the PIN), the Limited service message is displayed. Connection type ® Displays the type of 2N SpeedRoute connection to a wireless network (GSM, EDGE, GPRS, UMTS, HSDPA/HSUPA, LTE etc.). FUP limit Displays the counter capacity according to FUP parameters.

  • Page 24: Wizard Menu

    Table of Programmable Parameters Inbox / Outbox Displays the count of SMS currently available in the received/sent SMS storage. Database Displays the total count of SMS in the gateway, including the storages of received/sent SMS and user-deleted SMS. The value in parentheses shows the current data space occupied by SMS in the gateway, including the storages of received/sent SMS and user-deleted SMS If the value reaches the defined limit, all user-deleted messages are removed and the free space is used for new incoming...
  • Page 25 PIN correctly before inserting a new SIM card. Now click on Apply to confirm the currently made changes. Having done this, you move to the next Wizard window and 2N® SpeedRoute will, if the PIN is correct, log in to the wireless network.
  • Page 26 (Service Set Identifier) is the WiFi identifier that is sent to users. It is a unique network identifier in the given space. System sets security to the 2N® SpeedRoute WiFi interface. The available security levels include WEP, WPA, WPA2 and WPA+WPA2. The WiFi security Key format options are ASCII or HEX, i.e.

  • Page 27: Sms Menu

    Table of Programmable Parameters Having set the values, click on Apply. Now your 2N® SpeedRoute gateway is ready for basic operation. Refer to the subsections below or the HOW TO manuals for details on all programmable parameters. SMS Menu Inbox The Inbox folder displays the received SMS messages and helps you to read them including such details as the SMS sender number and delivery time.

  • Page 28: Setup Menu > Cellular

    Type Type of the SIM card inserted. Options: SIM, USIM, or Unknown when ® SpeedRoute cannot identify the SIM card. Status Status of the SIM card inserted. Some statuses are rather rare and so the most important SIM card statuses are mentioned only.
  • Page 29 The PIN is displayed not in the text format but as a dot only. Remember Select Remember to make 2N® SpeedRoute save the PIN after a successful SIM login and enter the same automatically upon the next start. A wrong PIN is not remembered.
  • Page 30 Mobile Network Code (MNC). Use the parameter to select the provider to ® which 2N SpeedRoute with a SIM should log for roaming purposes. Just select a provider from the list of available networks and the provider code will be set automatically.
  • Page 31 Connection type ® Displays the type of 2N SpeedRoute connection to a wireless network (GSM, EDGE, GPRS, UMTS, HSDPA/HSUPA, LTE etc.). Internet The APN (Access Point Name) is the provider’s Internet access code. If the item is not filled in by the user, the gateway uses data from its database.
  • Page 32 To display the internal APN database, click on the List link. The currently used data are highlighted in the table. If no table row is highlighted, ® SpeedRoute has no data on your provider. In that case, enter the data manually. LCP echo interval [0 – 3600 s] Set the timeout after which the LCP echo should be sent.
  • Page 33 Table of Programmable Parameters The FUP (Fair User Policy) function is set in this menu. The maximum amount of data to be transmitted is defined for a certain period of time. The limit is 100 GB. One selection at least must be ticked off to make this service work. The service is OFF by default.
  • Page 34 Table of Programmable Parameters Last erase Displays the system time at which the counter was reset for the last time. From this time on, the next resetting period as set in the Reset period parameter is in progress. Next erase Displays the system time at which the counter will be reset for the next time.
  • Page 35 16 kB Phone number to SMS notification Set up to 5 nine-digit numbers (e.g. 765123456) to which notification SMS on the ® SpeedRoute state should be sent. All generated SMS will be sent to all the numbers entered here. Balance Enable Enable USSD commands to be sent.

  • Page 36: Setup Menu > Hotspot

    Table of Programmable Parameters Instant request Used for credit recharging, for example. Enter the command to be sent and click on Apply. The answer is displayed in the Last SMS parameter until the next immediate request is sent or the request is sent after the Period timeout elapses. SETUP Menu >...
  • Page 37 Table of Programmable Parameters Ticket valid time Set the time period during which the connection may be activated. After this time period passes, the ticket becomes invalid. Setting options: 1 minute to 60 days Enable calculation Enable the connection cost calculation and ticket registration. Unit price (per hour) Set the unit price for the ticket cost calculation.
  • Page 38 Table of Programmable Parameters Tickets Overview of the generated tickets and their use – valid tickets only. History Overview of the generated tickets and their use – including used and invalid tickets. This menu allows an export of records to Excel for future use. It gives an overview of prices of sold tickets.
  • Page 39 Table of Programmable Parameters Ticket valid time Set the time period during which the connection may be activated. After this time period passes, the ticket becomes invalid. The value predefined in the Basic menu is used by default. Setting options: 1 minute to 60 days Ticket preview Displays the parameters of the ticket to be generated and information on the last...

  • Page 40: Setup Menu > Network

    Valid network address of the DNS LAN1 – LAN4/WAN The interfaces connected are displayed. If you connect the cable to the 2N® SpeedRoute switch, you get the connection rate and type for each port. If you enable the WAN port, LAN4 is converted into WAN.
  • Page 41 Even if both the options are selected and saved in the database, the option that is programmed is applied. Static ® IP address assigned to your 2N SpeedRoute WAN port as communicated by your Internet provider or network administrator. Subnet ® Mask of the network where your 2N SpeedRoute gateway will be operating as communicated by your Internet provider or network administrator.
  • Page 42 DNS1, DNS2, IP These parameters cannot be programmed. They are for information only and ® provide the data that 2N SpeedRoute received from the ADSL provider after authorisation. Note LCP echo is a function of the PPP demon, which is responsible for connection to the provider (UMTS/PPPoE).
  • Page 43 Set the maximum size of packets for a wireless network. Setting options: 0–2,346 B WLAN > Security System ® Set the 2N SpeedRoute WiFi interface security system. Setting options: WPA2 WPA+WPA2 Key format Set the WiFi interface security key format. Setting options:...
  • Page 44 Table of Programmable Parameters The WiFi security key consists of a sequence of alphanumeric characters or hexadecimal symbols (as defined in the Key format). Setting options: For WEP key: Enter 5, 13 or 16 alphanumeric characters, or 10, 26 or 32 hexadecimal symbols.
  • Page 45 PING is received after a sequence of errors. Manual connecting Specify how the user should get connected to the Internet. If you select Manual ® connection, 2N SpeedRoute will not connect to the Internet until you push the Connect button in the STATUS menu.
  • Page 46 Varování ® Be sure to disable this protection when you access 2N SpeedRoute remotely via the WAN port to avoid gateway response failures. Check ICMP Enable/disable the check of the ICMP packets passing through the gateway.
  • Page 47 Table of Programmable Parameters Enable NAT Enable/disable Network Address Translation(NAT). Firewall > Port Forwarding Used for routing packets coming from the Internet to specified ports, routed to specified internal addresses and ports. The function is often designated as the static NAT. Input Define the port to be forwarded.

  • Page 48: Setup Menu > Services

    Gateway IP address of the currently used gateway. The item can include either an IP ® address defined by the user in the LAN menu or the 2N SpeedRoute IP address. DNS1/DNS2 IP addresses of the currently used DNSs. The item can include the servers defined by the user in the LAN menu or assigned by the GSM provider, or the ®...
  • Page 49 Table of Programmable Parameters Lease time This parameter determines the time of leasing the IP address to a network device. After this time, the network device has to send a new IP address assignment request to the DHCP server. Max. leases Here define the maximum count of network devices that are assigned the IP address dynamically by the DCHP.

  • Page 50: Host Name

    Internet domain in real time. The DDNS allows you to use a stable DNS name instead of a variable IP address. Enable ® Enable/disable the use of the dyndns.org server by 2N SpeedRoute. Username Enter the username for DDNS connection. The user must be registered with the dyndns.org server.
  • Page 51 For a correct function, there must be two servers at least in the segment – one master and one backup. Enable ® Enable/disable the use of the VRRP in 2N SpeedRoute. Virtual IP Set the IP address of the virtual server. One and the same address should be set here for all the devices that are to work as servers.
  • Page 52 SpeedRoute always works in the client mode. Enable SSH client Enable the use of the SSH protocol. SSH server name ® Enter the name of the SSH server to which 2N SpeedRoute is to be connected. Client public key ® A key generated by 2N SpeedRoute (represented by a code), which can be stored on a disk.
  • Page 53 Select the side to initiate the connection: Remote/Local. Port Set the port number to which requirements of the device connected to ® SpeedRoute should be routed. Target Set the IP address and port to which the connection is routed. Setting options:...
  • Page 54 ® ® Here set the VPN tunnel between two 2N SpeedRoute units, or between one 2N SpeedRoute unit and a GRE-supporting device. The principle is that you set a subnet and a public IP address on one device and then the same on the other, thus creating an exclusive VPN tunnel between these two devices.
  • Page 55 No data are transmitted in the main mode. 2N® SpeedRoute uses the ISAKMP for this phase. The Quick mode is used for data transmission, which is the essence of IPsec.

  • Page 56: Nat Traversal

    Define the identifier for authorisation at the opponent’s. Options: Address, FQDN or USER FQDN. The PSK table setting is verified. NAT Traversal Enable the use of NAT: 2N® SpeedRoute always finds the whole route and use of NATs. Passive Tick off to define that this party will not initiate connection.

  • Page 57: Setup Menu > System

    Table of Programmable Parameters IPsec – PSK In this menu set the pre-shared security keys. The keys are included in the table below according to the identifier settings in the VPN menu. Identifier The same as in the VPN menu. A matching key is then assigned to the identifier. Enter any ASCII characters to form a word, IP address, e-mail address, or a sequence of random characters.
  • Page 58 Setting options: 1-31 alphanumeric characters Default setting: Empty The Internet page address connected to the logo near the filed for code from ticket. To be set in complete form (for example http://www.2n.cz) Setting options: 1-31 alphanumeric characters Default setting: Empty Hotspot login layout Parameter to select which images will be shown on the login screen of Hotspot.
  • Page 59 Push this button to save the new settings. (Button is placed bottom right.) Firmware This menu is used for downloading the current gateway firmware, module or bootloader versions into 2N® SpeedRoute. Module Information on the module version and date of issue.

  • Page 60: Time Zone

    Table of Programmable Parameters Automatic reboot Enable/disable the automatic gateway restart after firmware downloading. You can perform remote restart of the router using the Update button with the Automatic restart option. Time Remember to set the SNTP server to make the system time work properly. If the SNTP server is unavailable, system time is obtained from the wireless network, this service is not supported in some networks.
  • Page 61 Table of Programmable Parameters Configuration Operation This choice enables import/export of 2N ® SpeedRoute settings or SMS database. The operation is done after clicking on the Save button placed right bottom on the screen. File to import Select path to the file with configuration or SMS database.

  • Page 62: System Log

    Here specify the content of the package to be generated after you click on Save. The following information can be included: Application LOG Add the 2N® SpeedRoute log to the package. System LOG Add the system log to the package.
  • Page 63 System reports from the 2N Telekomunikace program module (settings, calls, SMS, etc.). System System reports from other program modules running in 2N® SpeedRoute (VRRP, SNTP, etc.). Reboot In this menu is set the regularly performed reboot and its time. The regularly performed reboot improves the stability of device.
  • Page 64 Table of Programmable Parameters Reboot This button reboots the router immediately. (Button is placed bottom right.) Save To save set values. (Button is placed bottom right.)

  • Page 65: Function And Use

    Function and ® This section describes the functions of the 2N SpeedRoute product. Here is what you can find in this section: Ethernet Switch and WiFi Interface SIM Card PIN Protection...

  • Page 66: Ethernet Switch And Wifi Interface

    Dynamic Network Assignment IP addresses can also be assigned dynamically to network devices. Enable the ® SpeedRoute DHCP server in the Network > DHCP >Enable menus and set the automatic IP address obtaining for your network devices connected to ®...

  • Page 67: Sim Card Pin Protection

    PIN is entered automatically upon every gateway power up. Automatic PIN Entering ® You do not have to enter the PIN upon power up if it is stored in the 2N SpeedRoute memory - it is entered automatically. This function is convenient in case of power ®...

  • Page 69: Technical Parameters

    Technical Parameters ® This section describes the technical parameters of the 2N SpeedRoute product.

  • Page 70: Technical Parameters

    Technical Parameters 5.1 Technical Parameters Product versions Ordering numbers 501800x HSPA+ Ordering numbers 501810x Network – LTE version LTE/UMTS/GSM Sierra Wireless MC7710 module LTE/UMTS/GSM LTE: Band 1, 3, 7, 8, 20 bands 2100 MHz, 1800 MHz, 2600 MHz, 900 MHz, 800 MHz UMTS: Band 1, 8 2100 MHz, 900 MHz GSM/GPRS/EDGE: 900 MHz, 1800 MHz, 1900 MHz...

  • Page 71: Network - Hspa+ Version

    Technical Parameters Network – HSPA+ version UMTS (HSPA+)/ Sierra Wireless MC8704 GSM module UMTS/GSM UMTS: Band 1, 2, 5, 6, 8 bands 2100 MHz, 1900 MHz, 850 MHz, 800 MHz, 900 MHz GSM/GPRS/EDGE: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz Maximum EGSM 850 / 900 MHz, transmission...

  • Page 72: Ethernet Switch

    Technical Parameters Ethernet Switch Interface type 4-port Gigabite Ethernet switch Connector RJ-45 WiFi Band 2,5 / 5 GHz Standard 802.11a/b/g/n Security WEP, WPA, WPA2, WPA+ Others Dimensions (w/o 170×130×45 mm connectors) Operating temperature 0° C to 45° C 8x LED (On; Network status, WiFi status; Line, signal Operating status signalling strength) Antenna...

  • Page 73: Supplementary Information

    Supplementary Information This section provides supplementary information on the product. Here is what you can find in this section: Directives, Laws and Regulations Troubleshooting List of Abbreviations General Instructions and Cautions...

  • Page 74: Directives, Laws And Regulations

    Directives, Laws and Regulations 6.1 Directives, Laws and Regulations ® SpeedRoute conforms to the following directives, laws and regulations: Act No. 22/1997 Coll. Of January 24, 1997 on technical requirements of products and amendments to some laws Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999 –...

  • Page 75: Troubleshooting

    Troubleshooting 6.2 Troubleshooting For tips for the solution of other potential problems see faq.2n.cz. ´ No LED is on after power up. u Check the power supply. ´ ® SpeedRoute is not logging into the GSM network. u Check the SIM card.

  • Page 76: List Of Abbreviations

    List of Abbreviations 6.3 List of Abbreviations APN (Access Point Name) Necessary for the GPRS service. CLIP (Calling Line Identification Presentation) CSD (Circuit Switched Data) DTMF (Dual Tone MultiFrequency) Tone dialling. FSK (Frequency Shift Keying) A transmission protocol using variable signal frequencies for logic level encoding.

  • Page 77: General Instructions And Cautions

    General Instructions and Cautions 6.4 General Instructions and Cautions Please read this User Manual carefully before using the product. Follow all instructions and recommendations included herein. Any use of the product that is in contradiction with the instructions provided herein may result in malfunction, damage or destruction of the product.

  • Page 78: Electric Waste And Used Battery Pack Handling

    General Instructions and Cautions Electric Waste and Used Battery Pack Handling Do not place used electric devices and battery packs into municipal waste containers. An undue disposal thereof might impair the environment! Deliver your expired electric appliances and battery packs removed from them to dedicated dumpsites or containers or give them back to the dealer or manufacturer for environmental-friendly disposal.
  • Page 79 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4 Tel.: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz 1821 v1.01...
