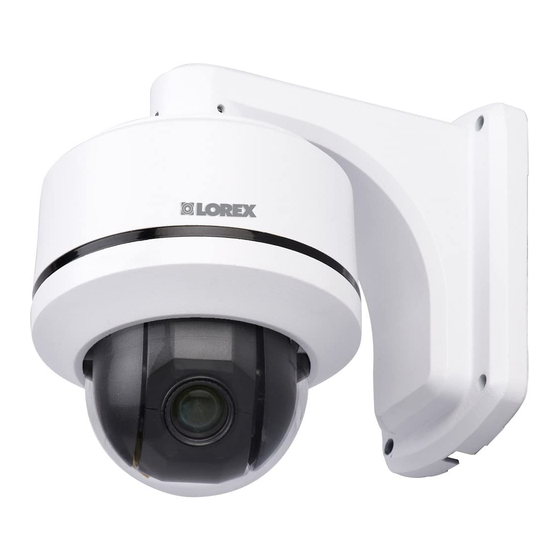

Lorex Vantage LZC7091 Instruction Manual

Lorex Vantage LZC7091 Instruction Manual

10x pan-tilt-zoom camera
Hide thumbs Also See for Vantage LZC7091:

Advertisement

Quick Links

10X PAN-TILT-ZOOM CAMERA

Instruction Manual

English Version 3.0
RETAIL
www.lorextechnology.com
Copyright © 2012 Lorex Technology Inc.
INDUSTRY
BUSINESS
BUSINESS
HOME
OUTDOOR
LZC7091

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vantage LZC7091 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lorex Vantage LZC7091

  • Page 1: Instruction Manual

    10X PAN-TILT-ZOOM CAMERA Instruction Manual English Version 3.0 RETAIL INDUSTRY BUSINESS HOME BUSINESS OUTDOOR LZC7091 www.lorextechnology.com Copyright © 2012 Lorex Technology Inc.
  • Page 2 Thank you for purchasing the LOREX Super+ Resolution 10X PTZ Speed-Dome Camera. This manual refers to the following models: • LZC7091  For the latest online manual and to learn about our complete range of accessory products, please visit our website at: www.lorextechnology.com...
  • Page 3: Need Help

    For all other matters, visit www.lorextechnology.com By Phone: North America: : 1-888-425-6739 Customer Service (for warranty matters) (1-888-42-LOREX) : 1-877-755-6739 Tech Support (for technical/installation issues) (1-877-75-LOREX) Mexico: 001-800-681-9263, 001-800-514-6739 International: +800-425-6739-0 (Example: From the UK, dial 00 instead of +)
  • Page 4: Necesita Ayuda

    1-888-425-6739 (1-888-42-LOREX) Asistencia técnica Soutien technique (para asuntos técnicos o de instalación) (pour les questions d’ordre technique ou relatives à 1-877-755-6739 (1-877-75-LOREX) : 1-877-755-6739 (1-877-75-LOREX) l’installation) Mexique : 001-800-681-9263, 001-800-514-6739 Mexico: 001-800-681-9263, 001-800-514-6739 Internacional: +800-425-6739-0 International : +800-425-6739-0 (par exemple : à partir du Royaume-Uni, composez le 00 au lieu de +)
  • Page 5 Please make sure to register your product at www.lorextechnology.com to receive product updates and technical support THIS PRODUCT MAY REQUIRE PROFESSIONAL INSTALLATION LOREX IS COMMITTED TO FULFILLING YOUR SECURITY NEEDS • We have developed user friendly products and documentation. Please read the Quick Start Guide and User Manual before you install this product.
  • Page 6 ESTE PRODUCTO PUEDE EXIGIR UNA IN- CE PRODUIT PEUT NÉCESSITER UNE STALACIÓN PROFESIONAL INSTALLATION PROFESSIONNELLE LOREX S’ENGAGE À RÉPONDRE À VOS LOREX SE COMPROMETE A SATISFACER BESOINS EN MATIÈRE DE SÉCURITÉ SUS NECESIDADES EN SEGURIDAD • Favor de leer la guía de instalación rápida y la •...
  • Page 7 • Removable camera base for easier and safer installation • 100ft all-in-one connection cable included for installation location flexibility As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE 1 This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-Red LEDs.
  • Page 8: Safety Instructions

    Safety Instructions • Read this guide carefully and keep it for future reference. • Follow all instructions for safe use of the product and handle with care. • Use the camera within given temperature, humidity, and voltage levels noted in the Technical Specifications. •...
  • Page 9: Table Of Contents

    TABLE OF CONTENTS 1. Getting Started ....... . . 1 2.
  • Page 11: Getting Started

    Getting Started 1. GETTING STARTED Before you start, ensure you have received all the items listed below: 100ft BNC/Power/ Camera RS485 Cable Mounting Screw Kit 12V DC Power Adapter Instruction Manual Wall Mount Kit Foam Pad...
  • Page 12: Connecting The Camera

    Connecting the Camera 2. CONNECTING THE CAMERA It is recommended to connect the camera to your DVR and test the PTZ controls before permanent installation. 6-Pin Connector Power adapter RS485 Power Camera Red: + Black: - BNC Video DVR RS485 Ports DVR Video Input 1.
  • Page 13 Connecting the Camera • To do this, you must remove the camera from the case. Rotate the dome cover counterclockwise to remove. Remove the base attachment screws (3x) and remove the camera base. See illustration below. Base attachment Dome screws cover Camera Camera base...
  • Page 14 Connecting the Camera • The RS485 connectors are a pair + / - RS485 Ports of bare 24-gauge wires. The red Insert a wire is positive (+) and is screwdriver and connected to the + port on the then insert wires RS485 section of the alarm Spring loaded lock alarm block block, and the black wire is...
  • Page 15: Default Protocol Information

    Connecting the Camera 2.1 DEFAULT PROTOCOL INFORMATION Unlike standard security cameras, PTZ (pan-tilt-zoom) cameras require special protocol information to enable a Security DVR to control the camera movement. Input the following information into your DVR to enable PTZ controls. • Default ID: 1 •...
  • Page 16: Installation

    Installation 3. INSTALLATION 3.1 INSTALLATION TIPS AND WARNINGS Make sure to install the camera in a location that can support the camera weight. Make sure there are no live electrical cables in the area where you plan to mount the camera. •...
  • Page 17: Extension Cables

    Installation 3.2 EXTENSION CABLES • Included cable is 100ft / 30m long. • Because this is a high-powered PTZ camera, the power adapter must be connected to included 100ft cable and cannot be extended. • BNC video and PTZ control (RS485) wires can be extended an additional 250ft / 76m up to a maximum length of 350ft / 106m.
  • Page 18: Wall Mount Installation (Indoor/Outdoor)

    Installation 3.3 WALL MOUNT INSTALLATION (INDOOR/ OUTDOOR) Make sure to disconnect the power adapter before installing the camera. Camera will begin moving immediately when power adapter is connected. Camera can be installed to a wall using the included wall mount. This method is suitable for indoor or outdoor installations.
  • Page 19 Installation 3. Rotate the camera dome cover counterclockwise to remove. Dome cover 4. Remove the base attachment Base screws (3x) and remove the attachment camera from the camera base. screws Camera Camera base 5. Remove the rubber plug on the bottom of the camera base and run the single end of the cable through the bottom of the camera...
  • Page 20 Installation 6. Connect the cable to the camera (see “Connecting the Camera” on page 2). Attach the camera to the base using the base attachment screws (3x) then reattach the dome cover by rotating it clockwise. NOTE: Make sure power adapter is disconnected before connecting the 6-pin connector.
  • Page 21: Ceiling Install (Indoor Only)

    Installation 3.4 CEILING INSTALL (INDOOR ONLY) Make sure to disconnect the power adapter before installing the camera. Camera will begin moving immediately when power adapter is connected. Camera is not weatherproof if installed using this method. Use the included wall mount for outdoor installations. Camera can be installed directly to a ceiling.
  • Page 22 Installation 3. Remove the base attachment Base screws (3x) and remove the attachment camera from the camera base. screws Camera Camera base Remove the rubber plug on the bottom of the camera base and run the 6-pin connector through the cable hole. 5.
  • Page 23 Installation 6. Attach the camera base to the ceiling using the included mounting screws (x4). NOTE: Use the included drywall anchors if installing the camera in drywall. Mounting screws 7. Connect the 6-pin connector to the camera. NOTE: Make sure power adapter is disconnected before connecting 6-Pin the 6-pin connector.
  • Page 24 Installation 9. Reattach the dome cover by rotating it clockwise. Remove protective vinyl from dome cover. 10.Connect the cables. For details, see “Connecting the Camera” on page 2. • For details on DVR setup, see “Controlling the PTZ Camera with your DVR” on page 15.
  • Page 25: Controlling The Ptz Camera With Your Dvr

    PTZ features that are available to you will depend on the model of DVR that you have. The following instructions are based on the Lorex ECO2 DVR’s (LH130 Series). For other DVR models, check your instruction manual for details.
  • Page 26: Controlling The Camera

    Controlling the PTZ Camera with your DVR 4. Configure the following: • Channel: Select the channel the camera is connected to. • Protocol: Select the protocol (default: Pelco-D). • Baud rate: Select the camera’s baud rate (default: 2400). • Data Bit: Select 8. •...
  • Page 27 Controlling the PTZ Camera with your DVR 3. Use the on-screen PTZ controls to control the camera. Channel:  Speed Slider: Increase or decrease the pan and tilt speed Select the channel with the PTZ camera Direction keys:  Camera Pre-set Click + / - to adjust the controls (see page 18) camera Zoom, Focus,...
  • Page 28: Ptz Presets And Ptz Cruise

    Controlling the PTZ Camera with your DVR 4.3 PTZ PRESETS AND PTZ CRUISE Using the DVR, you can create presets. Presets allow you to save different positions of the camera, so you can return the camera to these positions without using the manual controls. A PTZ cruise (referred to on some DVR’s as a tour or scan), allows you to configure a sequence of presets that the camera will automatically cycle through.
  • Page 29: Selecting Ptz Presets On The Eco2 Dvr

    Controlling the PTZ Camera with your DVR 4. Complete the steps above to create additional presets as needed. Press Save when you are finished to save all created presets. 4.5 SELECTING PTZ PRESETS ON THE ECO2 DVR 1. In the No. field, select the number of the preset you would like to select.
  • Page 30: Changing Protocol Information

    Changing Protocol Information 5. CHANGING PROTOCOL INFORMATION The camera’s PTZ protocol information allows a DVR to communicate with it and control the camera’s movement. You will not need to change the default protocol information on your camera unless you are using multiple PTZ cameras or if your DVR does not support the default settings (see your DVR’s instruction manual for details).
  • Page 31: Accessing The Dip Switches

    Changing Protocol Information 5.1 ACCESSING THE DIP SWITCHES To access the DIP switches, you must remove the camera from the case. To do this, you must remove the camera from the case. Rotate the dome cover counterclockwise to remove. Remove the base attachment screws (3x) and remove the camera base.
  • Page 32 Changing Protocol Information You cannot use the same ID for more than 1 PTZ camera. IMPORTANT You cannot set an ID with a value of 0. Switch is ON or OFF OFF OFF OFF OFF OFF OFF OFF ON OFF ON OFF ON OFF ON OFF OFF...
  • Page 33: Setting The Camera Protocol And Baud Rate

    Changing Protocol Information 5.3 SETTING THE CAMERA PROTOCOL AND BAUD RATE The protocol is the language that allows the camera and DVR to communicate, and the baud rate is the frequency of signal sent to the camera. The camera supports Pelco-D and Pelco-P protocols. Protocol and baud rate are set using switches 1&2 on the smaller DIP switch panel.
  • Page 34: Technical Specifications

    Technical Specifications 6. TECHNICAL SPECIFICATIONS Image Sensor 1/3" Sony Ex-View HAD CCD II Video Format NTSC Effective Pixels 976(H) x 494 (V) Resolution up to 700 TVL Range 360° Pan (Endless) 155° Tilt (Auto-Flip) Pan/Tilt Speed Max 360°/Sec. Zoom 10x Optical Zoom & 10x Digital Zoom Protocol Pelco-D, Pelco-P 0.7 Lux in Color ...
  • Page 35: Dimensions

    Dimensions 7. DIMENSIONS Units: mm Camera Camera and Wall Mount...
  • Page 36: Troubleshooting

    Troubleshooting 8. TROUBLESHOOTING There is no picture at night • Camera is capable of seeing in extremely low light conditions (0.02 Lux), but it cannot see in total darkness. It is recommended to install the camera where there is some ambient light (e.g. street lighting or starlight, moonlight, etc.) or leave a light on in the area where the camera is installed.
  • Page 37 Troubleshooting PTZ controls are not working or are not working properly • RS485 wires not connected or connected using wrong polarity. Ensure the red wire is connected to the + RS485 port and the black wire is connected to the - RS485 port. •...
  • Page 40 EXPAND AND CUSTOMIZE YOUR SYSTEM WITH A FULL RANGE OF CAMERAS & ACCESSORIES Specialty Cameras Wireless Cameras Dome Cameras Digital Video Recorders Monitors Simulated Cameras Security Hard Disc Drives Extension Cables Accessories www.lorextechnology.com 1 - 8 8 8 - 4 2 - L O R E X ( 1 - 8 8 8 - 4 2 5 - 6 7 3 9 ) SEP 6 2012 - R16...
