Summary of Contents for VADDIO PowerView HD-22 QCCU

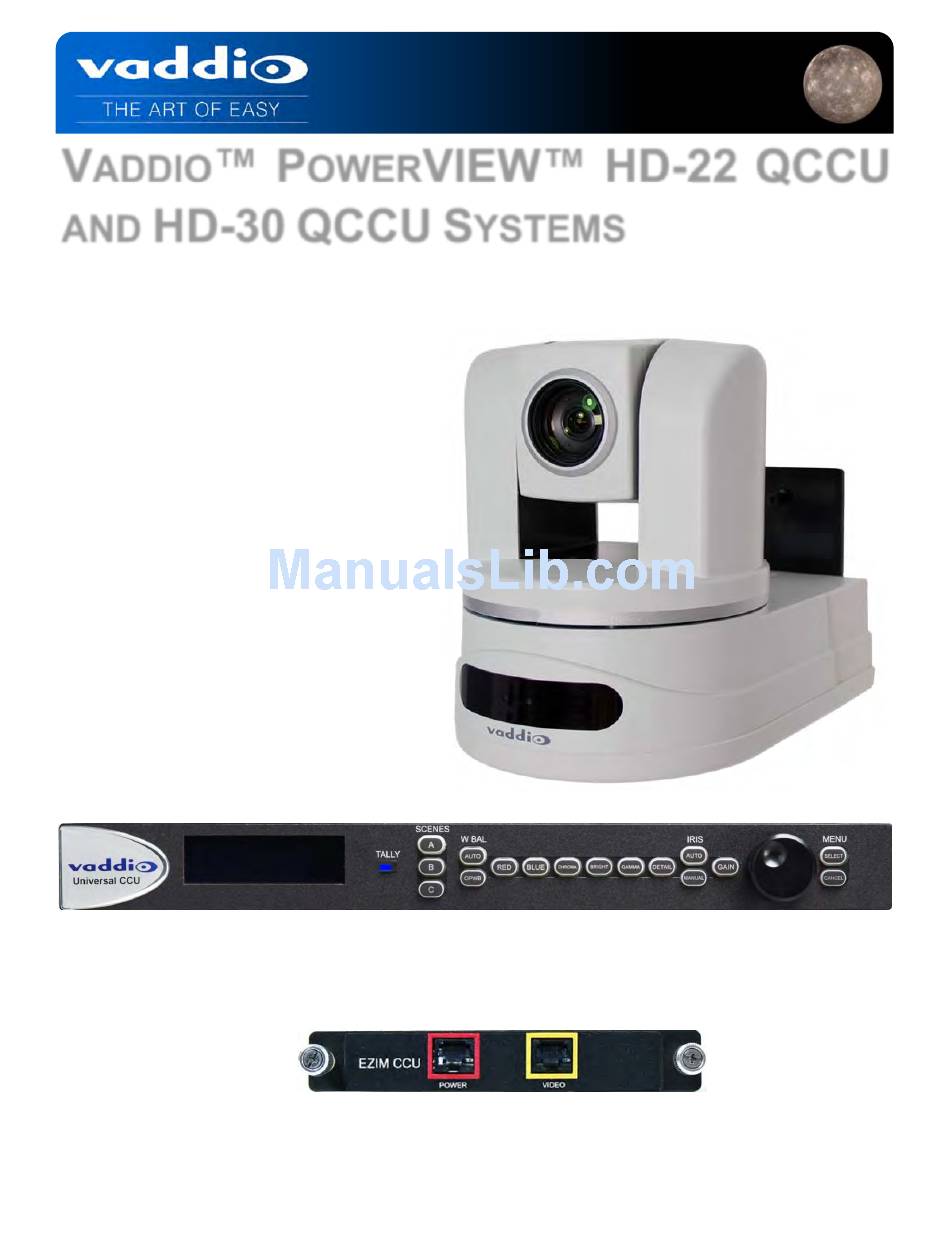

Page 1 PowerVIEW HD-30 QCCU Systems Part Numbers: 999-6977-000: North America 999-6977-001: International Universal CCU for HD-22 or HD-30 (shown without Rack Ears) EZIM™ Slot Card Interface Part Number: 998-6700-006 © 2015 Vaddio - All Rights Reserved. Document Number 342-0645 Rev F...
Page 2 PowerVIEW HD-22/30 QCCU System Inside Front Cover - Blank Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 2 of 28...
Page 3: Table Of Contents
Drawing: PowerVIEW HD-22/30 Dimensions ....................23 Appendix 3: Communication Specification ......................24 HD-22/30 Command List (1/2) ......................... 24 HD-22/30 Command List (2/2) ......................... 25 HD-22/30 Inquiry List (1/1) ..........................26 Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 3 of 28...
Page 4: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
Page 5: Unpacking
One (1) CONCEAL Mount with hardware kit  One (1) 998-1001-232, 9-Pin D-Sub-F to RJ-45F EZCamera Control Adapter  Quick Start Guide Full Manuals are downloaded from support.vaddio.com Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 5 of 28...
Page 6: Anatomy Of The Hd-22 And Hd-30
IR sensors are built into the front of the PowerVIEW HD-22/30 to receive IR signals from the IR remote control supplied with the camera. 4) Blue Power Light: A Vaddio blue power light is illuminated when the camera is turned on. Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 6 of 28...
Page 7: Image: Powerview Hd-20 Or Hd-30 Hd Ptz Camera (Rear Panel)
HSDS (differential) video from the camera. This port is not used with the QCCU Systems. 12) Slot for Optional Cards: The EZIM CCU slot card for the CCU can be plugged into the PowerVIEW HD-22 HD camera. Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 7 of 28...
Page 8: First Time Set-Up With The Powerview Hd-22 Or Hd-30
IR Out 3: The IR output is sent out on the RS-232 RJ-45 jack on the back of the camera. Turning on the IR output will allow IR signals to be transmitted over the Cat-5 cable to the head end. When using RS-232 control or Vaddio CCU controllers (also via RS-232), turn the IR OUT to OFF (up).
Page 9: Anatomy Of The Quick-Connect Universal Ccu
Program in a multi-camera CCU installation. A tally command will also be sent to the camera via RS-232 to light the LED on cameras with on-board tally lights (Vaddio HD Series cameras). Image: Close up View of the Universal CCU HD-22/30 Control Panel HD-22/HD-30 Keypad Controls from (left to right): Touch the button with the parameter to be controlled and adjust the value with the encoder, then touch the cancel button to exit.
Page 10: Image: Rear Panel Ccu Connections And Controls (Left To Right)
HD-SDI on Edge Mount Carrier Class, Gold BNC-F (supports 3Gb/s Single Link 1080p/60 HD-SDI) Big Important Note: The Quick-Connect Universal CCU supports the resolutions with frame rates of above 50 Hz (60, 59.94 and 50). Consequently, the 30, 29.97 and 25 fps from the Vaddio cameras are not supported...
Page 11: The Hd-22 And Hd-30 Control Menu Screens
1) AUTO (full Auto) 2) Incand Lo (incandescent low) 3) Incand Hi (incandescent high) 4) Fluor Lo (fluorescent low) 5) Fluor Hi (fluorescent high) 6) Outdoor Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 11 of 28...
Page 12 PowerVIEW HD-22/30 QCCU System The Version Menu screen displays the software versions of the Vaddio cameras attached as a convenience to the operator. The versions shown include the zoom module, the motors and the camera. Version Display Menu CAT-5 CCU...
Page 13: Installation Basics
Step 2: System Wiring Follow the sample wiring diagrams for connecting the Cat-5 cables to the camera and Quick-Connect Universal CCU Interface. Additional diagrams are available on the Vaddio website. Connect the camera side as follows: ...
Page 14 Step 6: Connect System Power Connect the Vaddio 36 VDC power supply to the Quick-Connect Universal CCU Interface and an AC outlet. The CCU will power the camera via the Cat-5 cable. The camera will “Home” to a centered position ready for control information from the Universal CCU.
Page 15: Drawing: Basic System Connectivity
The VIDEO Cat-5 cable uses all four pairs for video. The RS-232 Cat-5 provides communication to the camera for CCU and PTZ control. These Cat.-5 cables can be run up to 500’ (152.4m). See Appendix 1 for wiring and pin-out information. NOTE: Daisy-Chain configurations are not supported. Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 15 of 28...
Page 16: Optimizing System Performance
Optimizing the CCU settings will help achieve maximum performance from the system. Difficult lighting is one of the most challenging problems video system integrators face. The Vaddio CCU will provide the flexibility to fine tune for variables such as cable length, day/night lighting transitions and lighting color temperature.
Page 17: General Specifications
EZIM (EZCamera Interface Module) Slot Card Connectors Two (2) RJ-45 Connectors For Power and HSDS Video Moon in Front Page Header: Titania, Largest Moon of the planet Uranus. Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 17 of 28...
Page 18: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.
Page 19: Compliance And Ce Declaration Of Conformity - Powerview Hd-22 And Hd30
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.
Page 20: Compliance And Ce Declaration Of Conformity - Universal Ccu And Ezim Ccu
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.
Page 21: Appendix 1: Cable Pin-Outs For The Quick-Connect Ccu System
Pin - 2 Not Used Pin - 3 Pin - 4 Pin - 5 PB GND 12345678 Pin - 6 Y GND Pin - 7 Pin - 8 Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 21 of 28...
Page 22: Table: New Commands For The Ccu Scene Selection
81 01 043F 00 7p FF (where the p is scene 1, 2 or 3.) A Vaddio PTZ camera must be connected to the QCCU for the scene Set, Recall, and Reset to operate correctly. This command set communicates with the QCCU and the camera simultaneously.
Page 23: Appendix 2: Powerview Ez-Power Video Rj-45 Connector Pin-Outs
(HSDS™) and can only be received by the interfaces above. The Universal CCU Power and Video connections are on the EZIM CCU Slot Card ONLY EZ-POWER YPbPr VIDEO Power+ Power- PB - 12345678 Drawing: PowerVIEW HD-22/30 Dimensions Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 23 of 28...
Page 24: Appendix 3: Communication Specification
TXD (to RXD of control source) NOTE: The Vaddio PowerVIEW HD-22 and 30Control Protocol is similar, but not identical to, the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-22/30 specific commands in the following Command and Inquiry Lists.
Page 25: Hd-22/30 Command List (2/2)
ICR On Black and White **Additional Information: Pan Range: 8044 – 7FBC (-32,700 to +32,700) Tilt Range: E891 – 4C2B (-5,999 to +19,499) Actual Pan/Tilt ranges defined in Inquiry list Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 25 of 28...
Page 26: Hd-22/30 Inquiry List (1/1)
50 0p FF Off p: Manual AGC Gain(0-0x0e)*** ***Manual AGC Gain: 0:0dB, 1:3dB, 2:6dB, 3:9dB, 4:12dB, 5:15dB, 6:18dB, 7:21dB, 8:24dB, 9:27dB, 10:30dB, 11:33dB, 12:36dB, 13:39dB & 14:42dB Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 26 of 28...
Page 27 PowerVIEW HD-22/30 QCCU System Inside Back Cover - Blank Vaddio PowerVIEW HD-22/30 QCCU System, Document Number 342-064F Rev F Page 27 of 28...
Page 28 ©2015 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, Quick-Connect, ProductionVIEW, HSDS, EZIM, CONCEAL and PowerVIEW are trademarks of Vaddio. All other...
