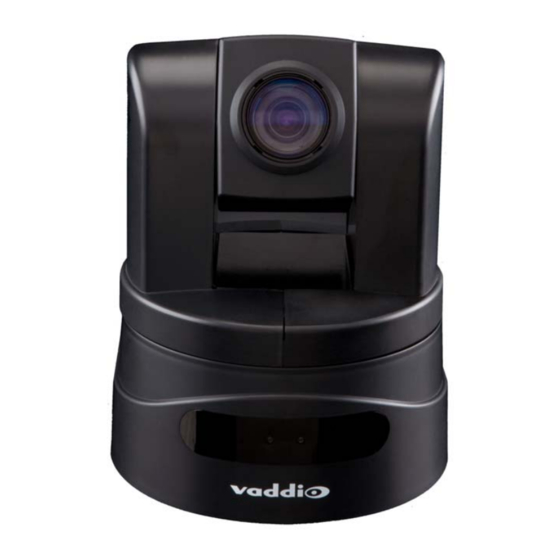

VADDIO ClearVIEW HD-18 Manual

Partner: Vaddio
Model: ClearVIEW HD-18
Device Type: Camera

GENERAL INFORMATION

SIMPLWINDOWS NAME:
CATEGORY:
VERSION:
SUMMARY:
GENERAL NOTES:
CRESTRON HARDWARE REQUIRED:
SETUP OF CRESTRON HARDWARE:
VENDOR FIRMWARE:
VENDOR SETUP:
CABLE DIAGRAM:

CONTROL:

Send_Address_Set
Power_<On/Off>
Pan_Tilt_*
Tilt_Speed
Tilt_Speed_<Up/Down>
Tilt_Speed_Default
Vaddio ClearVIEW HD-18 Camera Control v1.0
Camera
v1.0
This module will control the Vaddio ClearVIEW HD-18 via RS232.
This module provides control, real-time feedback from camera, and will also set
various advanced settings. It can have up to 16 presets. Press and hold preset x
input for 2 seconds and the position of camera will save onto that preset number.
There is also a reset mode that when toggled on will erase any preset number when
pressed afterwards.
If multiple units are daisy-chained then it will be necessary to pulse the
Set_Addresses input. This will set the address of each camera.
C2I-COM, ST-COM, C2-COM-*
RS232
Baud:9600
Parity: None
Data Bits: 8
Stop Bits: 1
Unknown
DIP switch 4 should be up for the baud rate of 9600.
A DB-9 to RJ-45 adapter is supplied with the camera for RS-232.
D Pulse to set the addresses of the camera.
D Pulse to turn the camera on or off.
D Press and hold to pan and tilt the camera.
A Analog signal to allow the tilt speed to be adjusted. Valid range is 0d to 14d.
D Pulse to adjust the tilt speed.
D Pulse to set the tilt speed to the default value of 7d.
