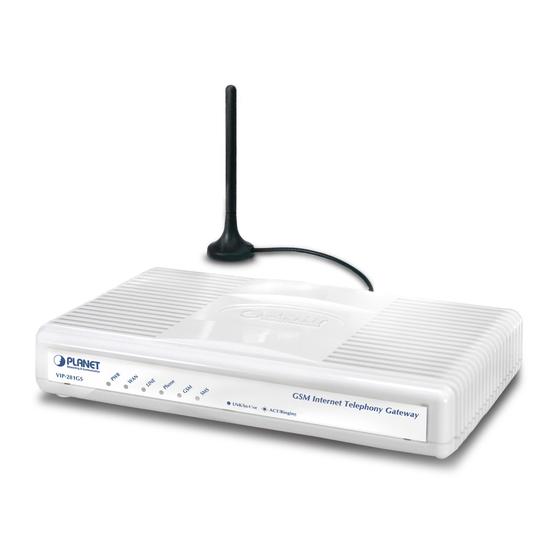

Planet VIP-281GS User Manual

H.323/sip voip gsm gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

H.323/SIP VoIP GSM Gateway
VIP-281GS
User's manual
Version 1.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIP-281GS and is the answer not in the manual?

Questions and answers

Related Manuals for Planet VIP-281GS

Summary of Contents for Planet VIP-281GS

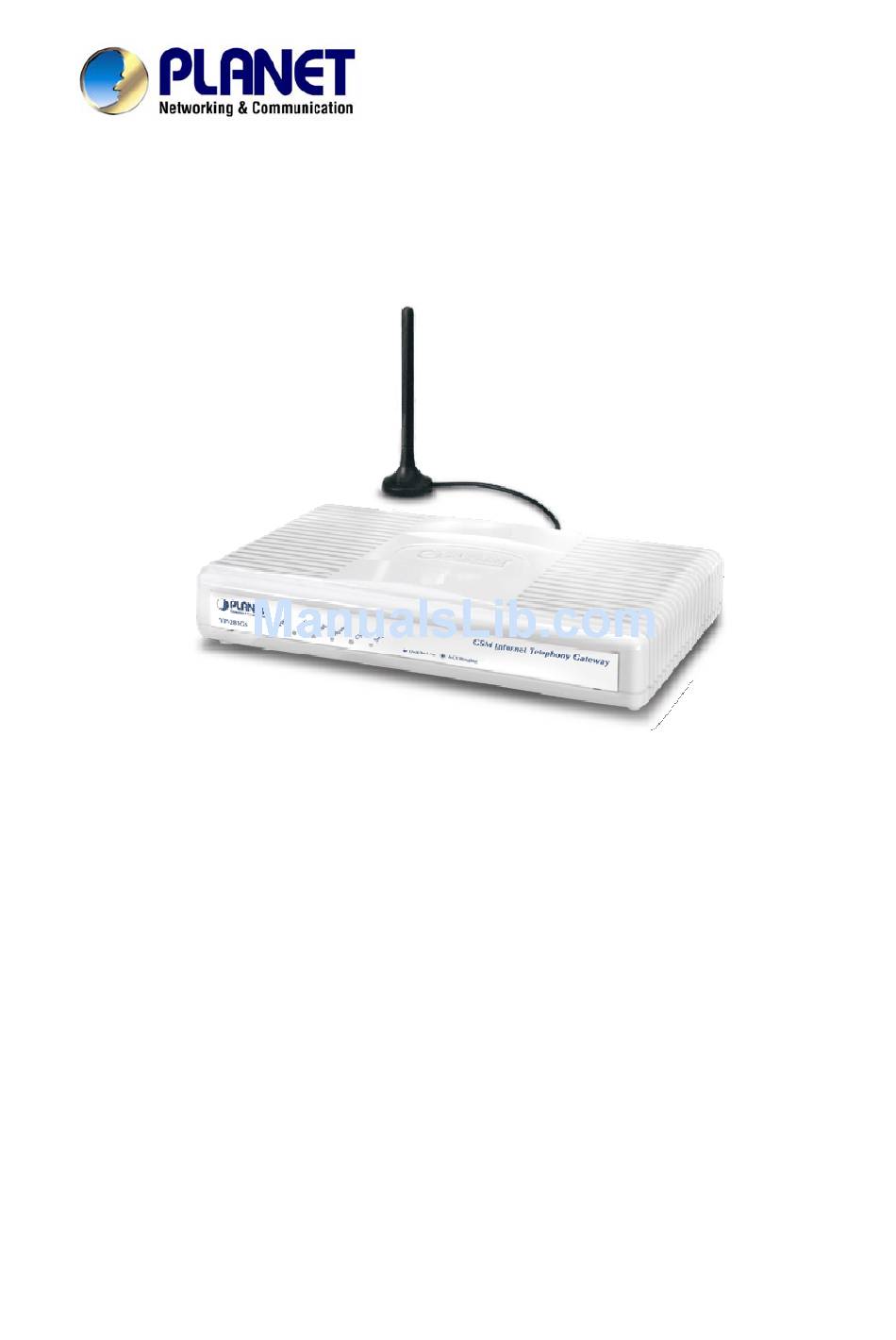

  • Page 1 H.323/SIP VoIP GSM Gateway VIP-281GS User’s manual Version 1.1.0...
  • Page 2 PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
  • Page 3 Revision User’s Manual for PLANET H.323/SIP VoIP GSM Gateway: Model: VIP-281GS Rev: 1.1 (October, 2009) Part No. EM-VIP281GSV1.1...

  • Page 4: Table Of Contents

    Configuring and monitoring your VoIP Gateway from web browser .......12 Overview on the web interface of VoIP GSM Gateway...........12 Manipulation of VoIP GSM Gateway via web browser ...........12 VIP-281GS Setup for Quick Start.................13 1. Network Setup (WAN Port Type Setup)...............13 2. VoIP Basic Setup: ....................15 Chapter 4 GSM Setup ................
  • Page 5 Voice communications ....................45 Concepts: Voice port....................45 Sample scenario_1: Peer to Peer GSM termination ..........46 Sample scenario_2: Enterprise SIP + GSM termination ..........49 Appendix B................... 52 FAQ ..........................52 Appendix C................... 54 Firmware upgrade Requirement and Process .............54 Appendix D................... 56 VIP-281GS Specifications ....................56...

  • Page 6: Chapter 1

    The VIP-281GS is equipped with both FXS and PSTN interfaces, which gives the gateway a wide range of potential applications. The VIP-281GS can be installed on a PBX trunk line to enrich its trunks-GSM and VoIP routes. The PBX is able to have voice communication to either VoIP or GSM environment by the least costs.

  • Page 7: Package Content

    Worldwide GSM network usable (850/900/1800/1900 MHz) • Supports GSM PIN code protection Package Content The contents of your product should contain the following items: Voice Gateway VIP-281GS unit Power adapter GSM Antenna Quick Installation Guide User’s Manual CD RJ-45 cable x 1...

  • Page 8: Physical Details

    Physical Details The following figure illustrates the front/rear panel of VIP-281GS series: Figure 1-1. Front panel of VIP-281GS Figure 1-2. Rear panel of VIP-281GS Front Panel LED Indicators & Rear Panels Front Panel LED State Descriptions GSM GW is powered ON...
  • Page 9 Push this button until 3 seconds, and ATA will be set to factory default Reset configuration. 12V DC (Power) The supplied power adapter connects here. Table 1-2. Rear panel description of VIP-281GS Incorrectly connecting telephony devices to the RJ11 port on the Telephony Interface can cause permanent damage to Warning the VoIP Gateway...

  • Page 10: Chapter 2 Preparations & Installation

    Microsoft Internet Explorer 6.0 or higher with Java support Default WAN interface IP address of VIP-281GS is 172.16.0.1. You may now open your web browser, and insert http://172.16.0.1 in the address bar of your web browser to logon VIP-281GS web configuration page.

  • Page 11: Wan Ip Address Configuration Via Web Configuration Interface

    Please locate your PC in the same network segment Note (172.16.0.x) of VIP-281GS. If you’re not familiar with TCP/IP, please refer to related chapter on user’s manual CD or consult your network administrator for proper network configurations. WAN IP address configuration via web configuration interface Execute your web browser, and insert the IP address (default: 172.16.0.1) of VIP in the adddress bar.

  • Page 12: Chapter 3 Network Service Configurations

    Provides user input data fields, check boxes, and for changing machine configuration settings Displays machine running configuration To start VIP-281GS web configuration, you must have one of these web browsers installed on computer for management Microsoft Internet Explorer 6.0 or higher with Java support...

  • Page 13: Vip-281Gs Setup For Quick Start

    Figure 3-2. System configuration VIP-281GS Setup for Quick Start System Configuration After finishing the authentication, the Main menu will display 3 parts of configuration, please click “Advance Setup” to enter advance configuration: 1. Network Setup (WAN Port Type Setup) For most users, Internet access is the primary application. The Gateway support the WAN interface for Internet access and remote access.
  • Page 14 Three methods are available for Internet Access If you are a leased line user with a fixed IP address, fill out the Fixed IP User following items with the information provided by your ISP. check with your ISP provider IP Address check with your ISP provider Netmask check with your ISP provider...

  • Page 15: Voip Basic Setup

    Figure 3-5. DHCP setting 2. VoIP Basic Setup: STEP1 : Configure VoIP Call Signal Protocols : User could select H.323 or SIP Protocol, and click “select” Figure 3-6. FXS/GSM number setting STEP2 : Configure the numbering with Phone(FXS)/GSM ports. The representation number is the phone number of the telephone FXS Number that is connected to Phone port The representation number is the phone number of SIM CARD...
  • Page 16 The purpose of “Outgoing Direct Call” setting is to let user create a proprietary dialing plan when this Gateway is not registered to any H.323 Gatekeeper or any SIP Proxy Server. This setting can also assign some dialing plan to local ports (including prefix strip, prefix addition). Through this setting, user can directly map a number to a specific gateway (IP address).

  • Page 17: Chapter 4 Gsm Setup

    Chapter 4 GSM Setup GSM Setup In GSM Setup, VIP-281GS provides user the major parts GSM function to configure: GSM Setup Label GSM Parameter allows you to modify the option of GSM GSM Parameter network. Users could apply any dial policy by setting Dial Plan to route the...

  • Page 18: Gsm Parameter

    GSM Parameter Figure 4-2. GSM parameter setting GSM parameter configuration Enable PIN Code protection PIN Code Protection If enable, when GSM Network is failed or GSM Gateway is out of the GSM service range. ALL the calls from FXS will route to Failsafe Mechanism PSTN port.

  • Page 19: Pstn Dialplan

    Support Battery Reverse Detection. Answer Supervision It’s able to adjust the GSM Receive Gain, range from -10db to GSM Receive Gain 6db. It’s able to adjust the GSM Transmit Gain, range from 30db to GSM Transmit Gain 42db. 1. Auto Answer Mode (Default Setting): GSM Port answers the call once it starts to ring.

  • Page 20: Gsm Dialplan

    For examples: Emergent calls, like 911 Zone Numbers, like 02x (the phone numbers start with 02) GSM Dialplan GSM Numbers: The numbers which are filled in the form will go through GSM Network unconditionally. You can use x as wild card. Figure 4-4.
  • Page 21 SMS sending configuration Sending Number The telephone number which an short message is sent to. SMS Content The SMS Content will be sent to the preset telephone number. If the SMS text is blank, an empty SMS is sent. The Maximum capacity is 40 characters. Table 4-3.

  • Page 22: Originate Black List

    Figure 4-7. Terminate Black setting Originate Phonebook Originate Phonebook: The following phonebook can set to block or allow. When set to block, phone number match phonebook can not call from GSM Network to VoIP, When set to allow, only phone number match phonebook call allow to make call.

  • Page 23: Chapter 5 Advance Setup

    Chapter 5 Advance Setup Network Setup In Network Setup, VIP-281GS provides user the major parts Network function to configure: Figure 5-1. Network setup setting Dynamic DNS DDNS is a service that maps Internet domain names to IP addresses. DDNS serves a similar purpose to DNS: DDNS allows anyone hosting a Web or FTP server to advertise a public name to prospective users.

  • Page 24: Netwrok Management

    If you don’t register GK or Proxy server, you can make Peer to Peer call by IP address or domain name (Setting Dialing plan). In VoIP Setup, VIP-281GS provides user the major parts VoIP functions to configure: VoIP Setup Label The PLANET series gateway support 2~24 phone/line for SIP and H.323 VoIP call applications.

  • Page 25: Voip Basic Configuration To H.323 Protocol

    H323 Register Type and H.323 Fast-Start/Normal-Start function. FXO AC impedance, Volume Adjustment, RRQ TTL, RFC2833 Payload, IP TOS..., etc. Let user can set up “hotline” to dial the phone number Hot Line Setting automatically. Display the telephone interface status. Port Status Table 5-2.
  • Page 26 Configure the ANI (Answer Number Indication) / Caller ID of the FXS/GSM ports ITSP needs ANI for authorization when gateway calls Off-Net call to PSTN number or mobile phone number. Figure 5-6. Caller ID setting Register to H.323 Gatekeeper Note: If user does not have Gatekeeper, please go to H.323 Dialing Plan Policy for more understandings.

  • Page 27: Dialing Plan To H.323 Protocol

    to register to primary gatekeeper, i.e. if both the primary IP Address gatekeeper and second gatekeeper Primary Gatekeeper Domain Name Let user use Domain Name of H.323 Gatekeeper. Secondary Gatekeeper Domain Name The Gatekeeper ID; usually do not need to set this field unless the H.323 Gatekeeper ID gatekeeper must need this value.
  • Page 28 In the “Outgoing Dial Plan Configurations” settings: Maximum Entries : 50 The leading digits of the call out dialing number. Outbound number It has two text fields need filled: “Min Length” and “Max Length” is Length of Number the min/max allowed length you can dial. The number of digits that will be stripped from beginning of the Delete Length dialed number.
  • Page 29 Scenario description: Speed dial If user dials “101”, the gateway automatically dials “1234567890” to destination IP address: 172.16.0.101 If user dials “202”, the gateway automatically dials “0987654321” to destination IP address: 172.16.0.202 Figure 5-10. Outgoing dial plan setting In the “Incoming Dial Plan Configurations” settings: Maximum Entries : 50 The leading digits of the dialing number.

  • Page 30: Advance Setting To H.323 Protocol

    Figure 5-12. Incoming dial plan setting Advance Setting to H.323 protocol In Advanced Setting , VIP-281GS provides user three major parts function to configure: One is “VoIP Advance”, the other are “Telephone Advance” , “Network Advance” and “Tone Table Setting”...
  • Page 31 This selection could force the Gateway to use normal start mode (default mode) or fast start mode when establishing a VoIP call. Many H.323 Mode other gateways only support normal start mode, enable this selection when it is necessary. The default is disabled (using fast start mode). This selection could force the Gateway to use H.245 Tunneling when establishing a VoIP call The default is disabled (using fast start H.323 H.245 Tunneling...
  • Page 32 Telephone Advance Figure 5-14. Telephone Advance setting H.323 Telephone Advance Configuration If this function is enabled, when silence is occurred for a period of time, no data will be sent across the network during this period in Silence Compression order to save bandwidth. (VAD) (If you use Asterisk, please disable Silence Compression, it maybe make you call disconnect.)

  • Page 33: Voip Basic Configuration To Sip Protocol

    You can configure how long the Ring Frequency do you want to Ring Frequency use. Enable battery reverse to detect polarity from PSTN line. The FXO Battery Reverse PSTN line can send H.323 case: Sending the Q.931 connect signal to caller when detecting polarity reverse from PSTN line. Table 5-9.
  • Page 34 Figure 5-16. Port number setting Port Number / Password Setting Input SIP number (Username), if your server support account and number (different), input the number, else number/account Number are the same username. Let your sip account register SIP Server, click this option. Input SIP account (Username), if your server support account and number (different), input the number, else number/account Account...
  • Page 35 Figure 5-18. SIP proxy setting SIP Proxy Server Setting Enter the SIP realm in this field Domain/Realm Enter the SIP service IP address or domain name in this field (the domain name that comes after the @ symbol i n a full SIP Proxy Server SIP URI).

  • Page 36: Dialing Plan To Sip Protocol

    NAT Pass Setting Default use Symmetric RTP pass function. NAT Pass Method Setting your STUN server information, default STUN server is STUN Client FWD STUN server. Outbound Proxy Setting your Outbound Proxy server information. Support Local SIP Port Setting local use SIP port, default is 5060. Table 5-13.

  • Page 37: Advance Setting To Sip Protocol

    Table 5-16. Incoming dial plan descriptions Advance Setting to SIP protocol In Advanced Setting, VIP-281GS provides user three major parts function to configure: One is “VoIP Advance”, the other one is “Telephone Advance” , “Network Advance” and “Tone Table Setting”...
  • Page 38 SIP VoIP Advance Configurtion After the VoIP call is connected, when you dial a digit, this digit is sent to the other side by DTMF tone. There are three methods of sending the DTMF tone. The first one is “in band”, that is, sending the DTMF tone in the voice packet.
  • Page 39 The Codec is used to compress the voice signal into data packets. Each Codec has different bandwidth requirement. There are four kinds Voice Codec option of Codec, G.723, G.729AB, G.711_u and G.711_A. The default value is G.723. When you use the VoIP call, you will heard “DuDu” voice that is dial complete tone.

  • Page 40: Hot Line Setting

    Hot Line Setting You can set hot line. When the call incoming the hot line port, it will call hot line number automatically. The hot line calls the number via VoIP, so you setting the hot line number must VoIP number. Usually, you want to incoming GSM calls transfer to FXS, you only setting the GSM hot line to FXS number.

  • Page 41: Chapter 6

    SNTP (Simple Network Time Protocol) configuration for SNTP Setting synchronizing gateway clocks in the global Internet. VIP-281GS can send log information to Syslog Server by UDP ports Syslog Setting 514. The VIP-281GS supports packets capture and save the packets to Capture Packets your PC.

  • Page 42: Access Control

    Figure 6-2. Save setting Access Control Changing the Administrator/Guest Password For security reasons, we strongly recommend that you set an administrator/password for the router. On first setup the router requires no password. If you don’t set a password the router is open and can be logged into and settings changed by any user from the local network or the Internet.

  • Page 43: System Information Display Function

    The gateway synchronizes the gateway’s time after you select the time zone. Use SNTP Setting; select the time zone which gateway was at. Syslog setting Use Syslog server to record your VIP-281GS log file. To set the Syslog server IP address for this function. Kindly please download for this FREE service at http://www.kiwisyslog.com/index.php...

  • Page 44: Capture Packets Function

    Figure 6-8. Syslog topology Capture packets Function Use “Capturer Packets” to record VIP-281GS packets. Users can start and stop the capture then save the file to PC. Use the Ethereal Tool (www.ethereal.com) to analyze the packets. Figure 6-9. Capture packets setting...

  • Page 45: Appendix A

    The chapter shows you the concept and command to help you configure your PLANET VIP-281GS through sample configuration. And provide several ways to make calls to desired destination in VIP-281GS. In this section, we’ll lead you step by step to establish your first voice communication via web browsers operations.

  • Page 46: Sample Scenario_1: Peer To Peer Gsm Termination

    In the following samples, we’ll introduce the Peer to Peer GSM termination applications. In this example, there are two VIP-281GS calling by IP address directly, both VIP-281GS have inserted the GSM SIM cards into SIM slots, the GSM number are 09127788(GSM_1) and 09583344(GSM_2).
  • Page 47 VIP-281GS: STEP 1: Pleas e log in VIP-281GS_A via web browser, browse to the Advance Setup -> VoIP Basic menu and set the VoIP number as 100 and 200, the sample configuration screen is shown below: Figure A-4.
  • Page 48 Figure A-6. PSTN Routing table STEP 4: Please browse to the GSM Dial plan menu and set the GSM outgoing number, the sample configuration screen is shown: Figure A-7. GSM Routing table STEP 5: Repeat the same configuration steps on VIP-281GS_B. Test the scenario: A.

  • Page 49: Sample Scenario_2: Enterprise Sip + Gsm Termination

    Sample scenario_2: Enterprise SIP + GSM termination In the following samples, we’ll introduce the SIP Proxy and GSM termination applications. In this example, there are two VIP-281GS; the FXS and GSM ports are register to SIP Proxy Server (IP PBX).
  • Page 50 Figure A-10. SIP proxy settings STEP 2: Because the VIP-281GS have registered to IP PBX, all the VoIP calls will send to IP PBX, so that don’t need to set the dial plan settings. Figure A-11. Outgoing dial plan settings...
  • Page 51 Figure A-12. GSM Routing settings STEP 4: Repeat the same configuration steps on VIP-281GS_B. Test the scenario: A. ext.501 call to GSM_3 1. Ext.501 picks up the telephone, and input the trunk code to connect with FXS port of VIP-281GS_A. 2.

  • Page 52: Faq

    Appendix B Q1: What is the default administrator password to login to the gateway? A: By default, your default username is “admin”; default password is “123” to login to the router. For security, you should modify the password to protect your gateway against hacker attacks.
  • Page 53 Q9: Why can I register and use after setting? A: After setting, please save configuration and reboot, after reboot you can use new configuration.

  • Page 54: Appendix C

    Appendix C Firmware upgrade Requirement and Process 1. Environment Requirement a) A PC with FTP Server (Server-U software) b) A PC or Notebook witch connected to LAN port of gateway. c) Put the image (firmware) named “FW-VIP281GS_vxxx.bin ” at the assigned folder in FTP Server. For example: “FW-VIP281GS_v305.bin”...
  • Page 55 c) Please input IP address of FTP server like as: 172.16.0.101, username: xxxx, passswd: xxxx, and image name: FW-VIP281GS_v305.bin d) Upgrade (y/n): y, then will write the firmware to flash. e) After writing flash, Please reboot the Gateway. f) If the new firmware (image) was most different with the previous version, please push the hardware reset bottom to set to default.

  • Page 56: Appendix D

    Appendix D VIP-281GS Specifications Product H.323/SIP VoIP GSM Gateway Model VIP-281GS Hardware 1 x 10/100Mbps RJ-45 port 1 x RJ-11 connection PSTN 1 x RJ-11 connection 1 x SIM connection Protocols and Standard H.323 v2/v3/v4 and SIP (RFC 3261) SDP (RFC 2327)
  • Page 57 EC Declaration of Conformity For the following equipment: *Type of Product : 2-Port H.323 / SIP VoIP GSM Gateway *Model Number : VIP-281GS * Produced by: Manufacturer‘s Name: Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road Hsin Tien, Taipei, Taiwan, R. O.C.
