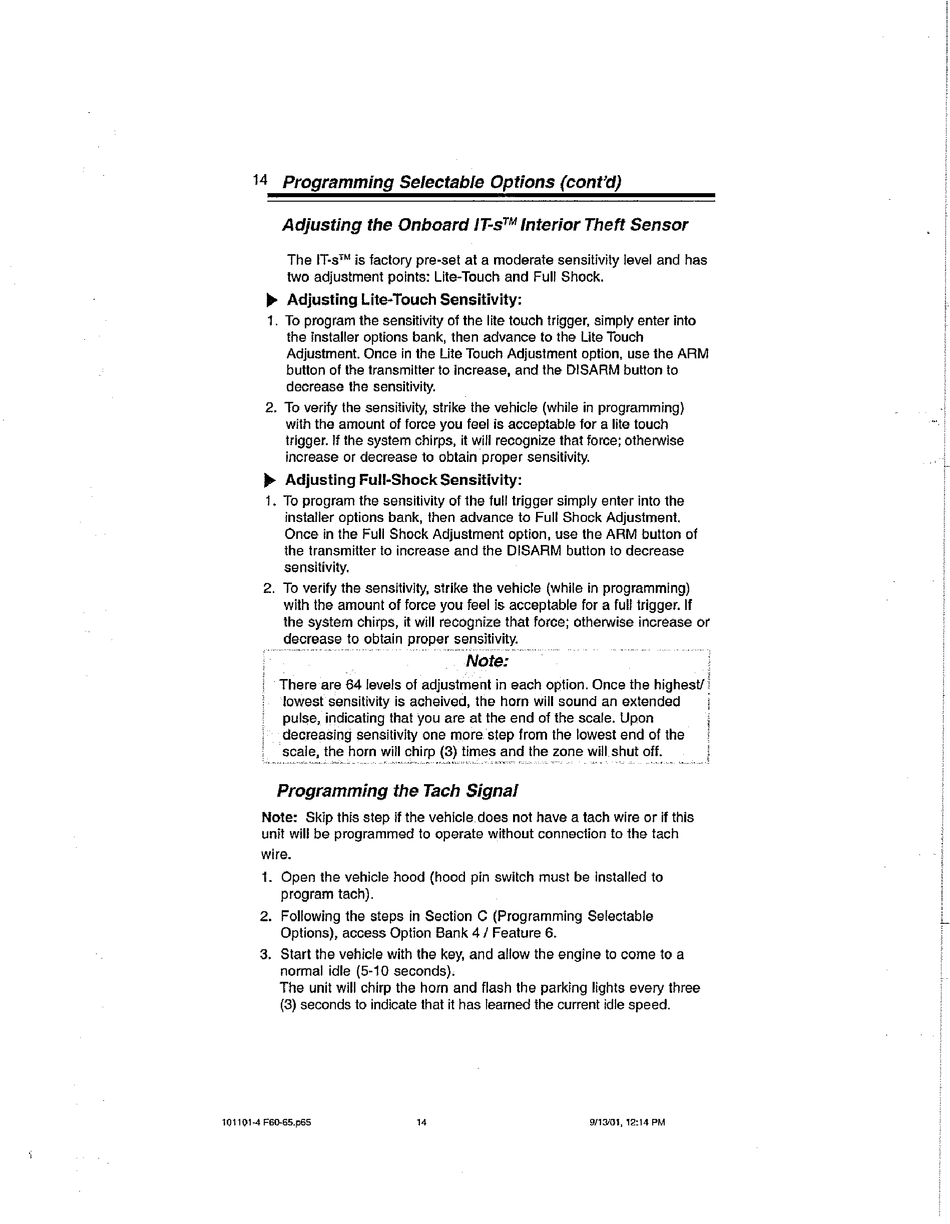

Code Alarm F60 Owner's Manual page 14

14
Programming Selectable Options (cont'd)
Adjusting the Onboard IT-sTM Interior Theft Sensor
The IT-sT" is factory pre-set at a moderate sensitivity level and has
two adjustment points: Ute-Touch and Full Shock.
~
Adjusting Lite-Touch Sensitivity:
1. To program the sensitivity of the lite touch trigger, simply enter into
the installer options bank, then advance to the Ute Touch
Adjustment. Once in the Ute Touch Adjustment option, use the ARM
button of the transmitter to increase, and the DISARM button to
decrease the sensitivity.
2. To verify the sensitivity, strike the vehicle (while in programming)
with the amount of force you feel is acceptable for a lite touch
trigger. If the system chirps, it will recognize that force; otherwise
increase or decrease to obtain proper sensitivity.
~
Adjusting Full-Shock Sensitivity:
1. To program the sensitivity of the full trigger simply enter into the
installer options bank, then advance to Full Shock Adjustment.
Once in the Full Shock Adjustment option, use the ARM button of
the transmitter to increase and the DISARM button to decrease
sensitivity.
2. To verify the sensitivity, strike the vehicle (while in programming)
with the amount of force you feel is acceptable for a full trigger. If
the system chirps, it will recognize that force; otherwise increase or
decrease to obtain proper sensitivity.
Note:
There are 64 levels of adjustment in each option. Once the highesV
lowest sensitivity is acheived, the horn will sound an extended
pulse, indicating that you are at the end of the scale. Upon
decreasing sensitivity one more step from the lowest end of the
scale, the horn will chirp (3) times and the zone will shut off.
Programming the Tach Signal
Note: Skip this step if the vehicle does not have a tach wire or if this
unit will be programmed to operate without connection to the tach
wire.
1. Open the vehicle hood (hood pin switch must be installed to
program tach).
2. Following the steps in Section C (Programming Selectable
Options), access Option Bank 41 Feature 6.
3. Start the vehicle with the key, and allow the engine to come to a
normal idle (5-10 seconds).
The unit will chirp the horn and flash the parking lights every three
(3) seconds to indicate that it has learned the current idle speed.
