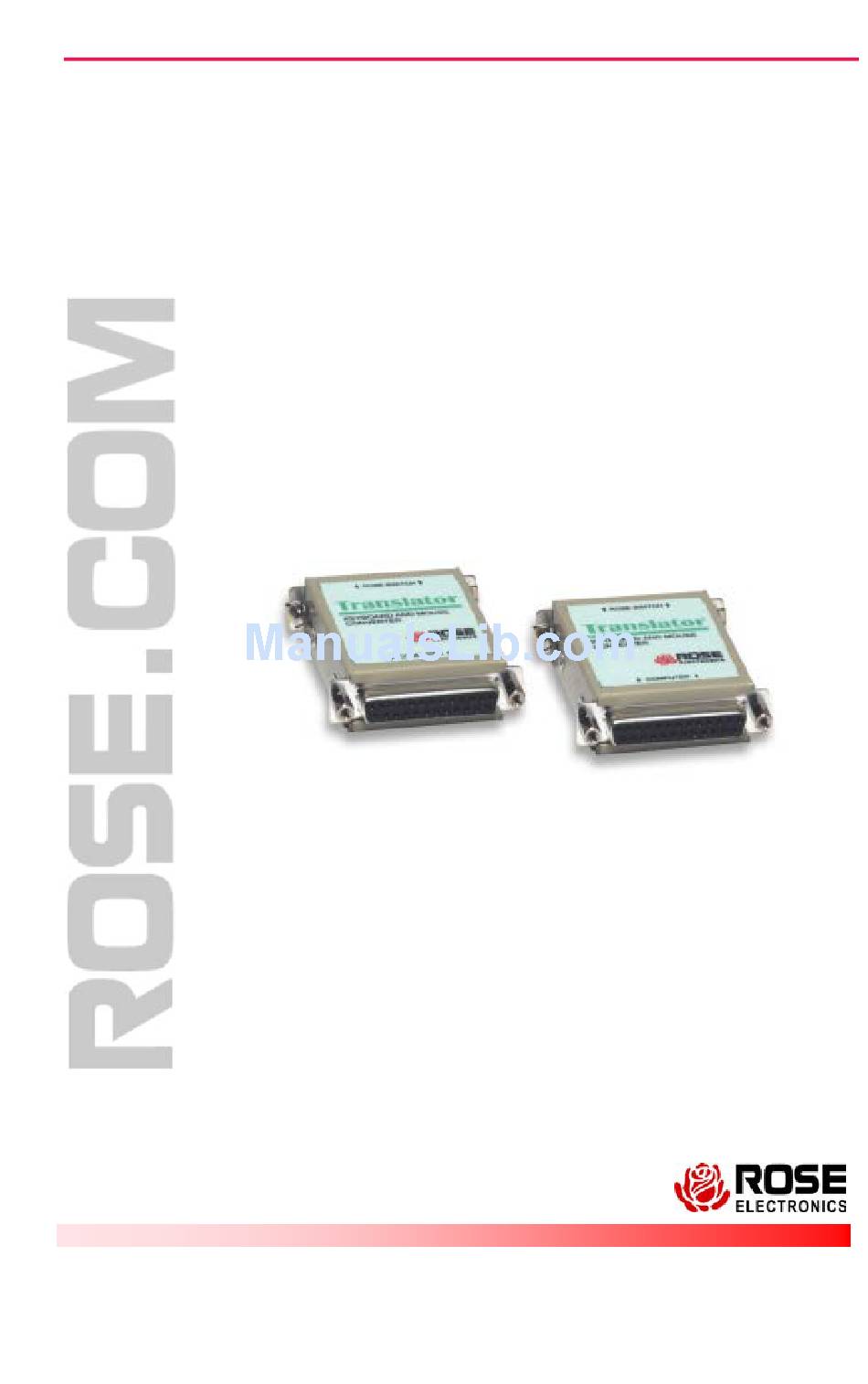

- Page 1 T R A N S L A TO R ™ KEYBOARD AND MOUSE CONVERTER INSTALLATION OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 3 Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
-
Page 4: Table Of Contents
TABLE of CONTENTS Contents Page Disclaimer ....................1 System introduction ..................1 Features ...................... 1 Installation ....................2 Cables ....................3 Service Information ..................4 Maintenance and Repair ............... 4 Technical Support ................. 4 Safety ......................5 Appendices Page Appendix A- General Specifications ............6 Appendix B- Parts and Cables .............. -
Page 5: Disclaimer
SUN, DEC Alpha, and SGI Onyx computer to Rose KVM switches and extenders that do not support these computer types. The Translator uses power from the KVM switch or computer so no external power is required. Just plug it in, and it turns any PC KVM switch into a multi-platform switch. -
Page 6: Installation
RJ4 conductor jack. The keyboard and mouse plug into these connectors. Newer DEC Alpha models use PC keyboard and PS/2 mouse and the Translator is not needed for these models. You will need a DEC 108-key keyboard with a PC keyboard interface such as the DEC LK461 keyboard to access the special DEC keys, such as F13, F14, F15, etc. -
Page 7: Cables
The following table shows the cable options for connecting to the Translator. Part number Description CAB-AV0400Cnnn Apple DB15M / MD4M CAB-C1AV0400CAnnn AppleDB15M / MD4M / (2) 3.5 mm audio CAB-SCX0800Cnnn SUN 13W3M / MD8M CAB-CXV0800Cnnn SUN HD15M / MD8M TRANSLATOR INSTALLATION AND OPERATINS MANUAL... -
Page 8: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 9: Safety
SAFETY Safety The Translator has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the Translator should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 10: Appendix A- General Specifications
Power LED Environment 0 to 55° C, 0-80% non-condensing relative humidity Appendix B- Parts and Cables CNV-MACPS Translator for Apple keyboard/mouse CNV-SUNPS Translator, Sun keyboard/mouse CNV-DECPS Translator, DEC Alpha keyboard/mouse CNV-SGIPS Translator, SGI Onyx keyboard/mouse TRANSLATOR INSTALLATION AND OPERATINS MANUAL... - Page 11 TRANSLATOR INSTALLATION AND OPERATINS MANUAL...
- Page 12 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
