Summary of Contents for Rose electronics CNV-BNCVGA

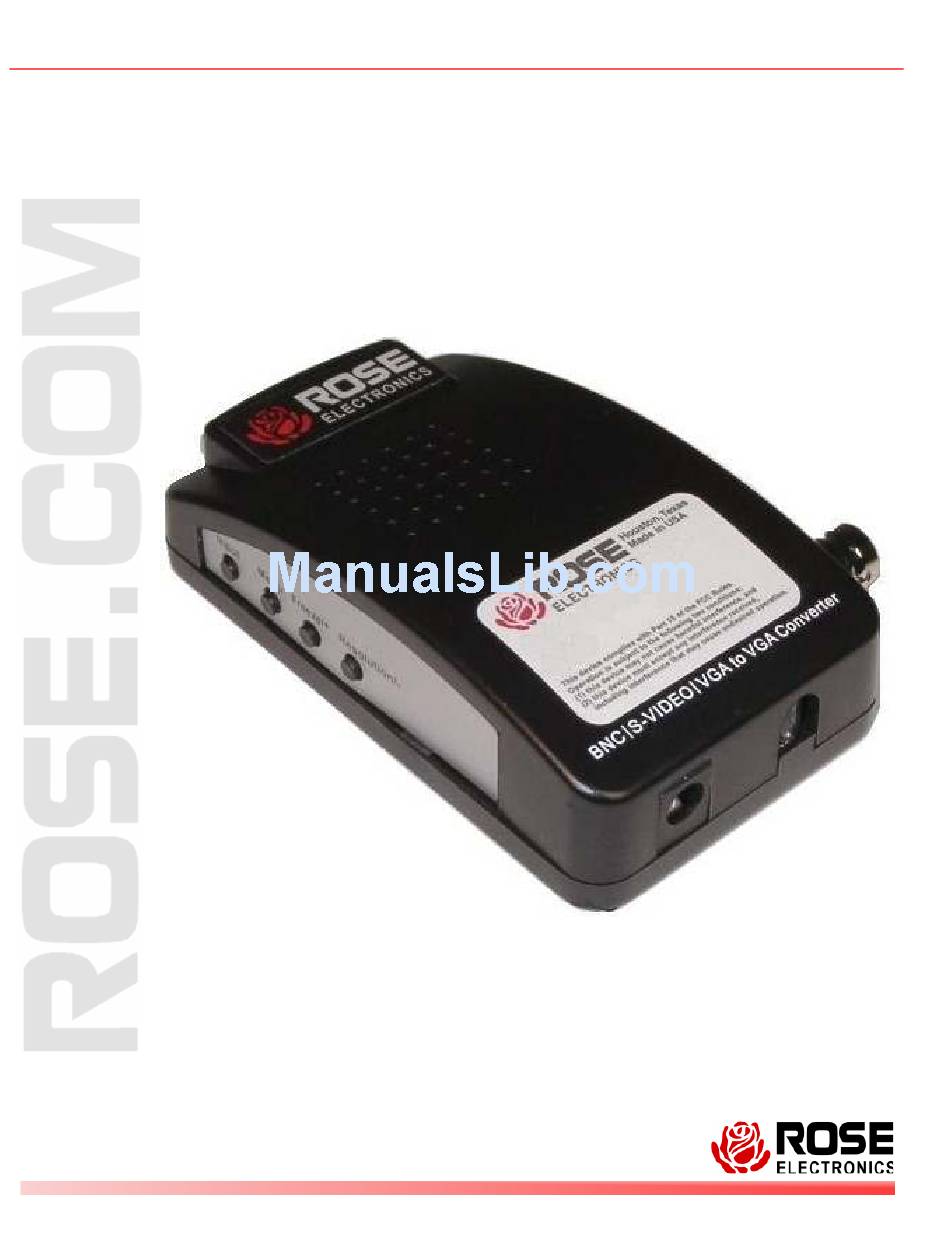

- Page 1 Video Converter BNC To VGA Converter 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 www.rose.com...
- Page 3 LIMITED WARRANTY Rose Electronics warrants the BNC to VGA Video Converter to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Page # Disclaimer................................1 Introduction................................ 1 About This Manual............................. 1 Features................................. 1 Compatibility..............................2 Package contents............................2 Product registration ............................2 Model Description.............................. 3 Installation ................................. 4 Operation ................................5 Input function key ............................5 Menu function key ............................5 Bright Menu.............................. -
Page 5: Disclaimer
(See limited warranty) Introduction Thank you for choosing Rose Electronics BNC to VGA Video Converter (Part Number CNV-BNCVGA). This Video Converter provides the means to convert Composite Video and S-Video to VGA, thereby enabling CCTV cameras, DVD, DVR and other equipment that generate these video signals to be displayed on a VGA PC monitor or LCD. -
Page 6: Compatibility
Compatibility Video Input Composite Video, S-Video, VGA Video Output VGA with resolutions of 800x600@60Hz, 800x600@75Hz, 1024x768@60Hz and 1280x1024@60Hz Package contents BNC to VGA Video Converter S-Video cable 5V 1Amp Power Supply Manual Product registration Register your product for future updates at: www.rose.com/htm/online-registrationform.htm BNC to VGA Video Converter Installation and Operations Manual... -
Page 7: Model Description
MODELS Model Description The following figure shows the buttons and connectors on the Video Converter. Figure 1. Video Converter buttons and connectors BNC to VGA Video Converter Installation and Operations Manual... -
Page 8: Installation
INSTALLATION Installation The installation section of this manual describes how to connect the Video Converter to the input devices and output monitor. Note: When installing the unit, take care that the pinholes on the top and bottom of the unit are not covered or obstructed. -
Page 9: Operation
OPERATION Operation This section describes the operation of the Function Keys. The function keys are used to adjust and freeze the incoming image for optimum display on the output monitor. These settings are saved to the video converter so that they are retained even after the power has been removed from the unit. To operate, press and hold the desired key for at least 75 milliseconds. -
Page 10: Resolution
Resolution/- In the OSD, the Resolution/- function decreases the value of the setting that is being adjusted as described above. When not in the OSD, the Resolution/- function key allows the selection of the output resolution. The following output resolutions are available: 800x600@60Hz 800x600@75Hz 1024x768@60Hz... -
Page 11: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. - Page 12 SAFETY The CNV-BNCVGA has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the Video Converter should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.
-
Page 13: Troubleshooting
TROUBLESHOOTING Troubleshooting This section deals with troubleshooting possible problems when operating the CNV-BNCVGA. No output Please ensure that the power supply is in good condition and the LEDs are lit. Output is a blue screen Press and hold the Input key to select the input mode where the video source is connected.
