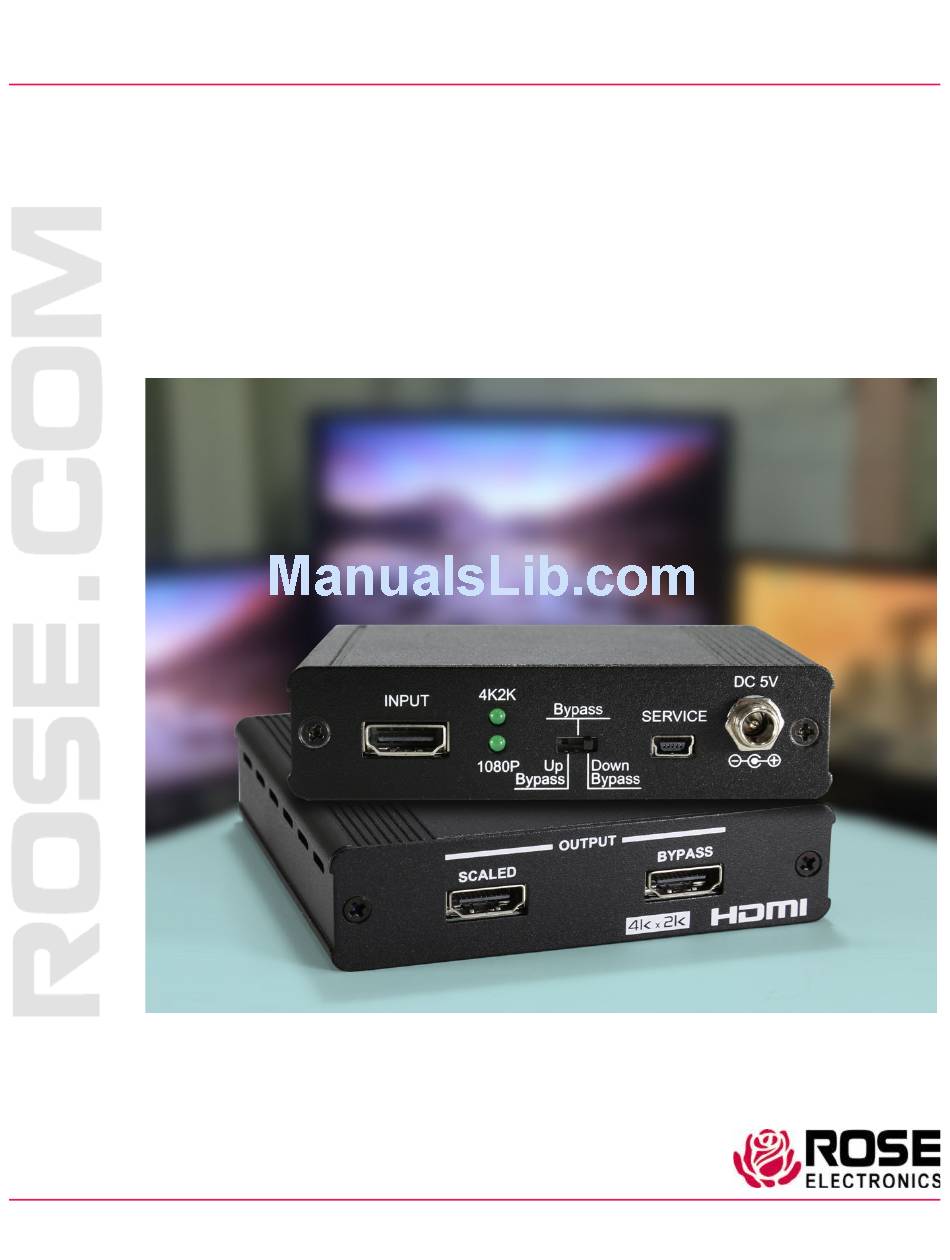

- Page 1 Transvue HDMI 4K2K Scaler UPSCALE AND DOWNSCALE HDMI Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
-
Page 2: Limited Warranty
Transvue 4K2K Scaler to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. -
Page 3: Declarations Of Conformity
DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■... -
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Installation EDID Management Troubleshooting Safety Maintenance and Repair Technical Support Appendices Appendix A — Specifications... -
Page 5: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics TransVue HDMI 4K2K Scaler. It is the perfect solution for upscaling or downscaling between the HDMI HD 2K and UltraHD 4K video formats. This compact 2-port device has one port for scaled video output and a second port for unscaled native video output. -
Page 6: Features
INTRODUCTION Features ■ Supports HDMI video upscale to 4K2K, or downscale to 1080p@24Hz ■ Supports native HDMI signal bypass to one display ■ Simultaneously displays upscaled / downscaled and native HDMI outputs through scaled and bypass ports ■ Utilizes a bypass switch to assign the video input for either video upscaling or video downscaling ■... -
Page 7: Installation
Installation Please follow these steps to set up and operate the HDMI 4K2K Scaler: 1. Power off all video sources sources (PC, STB, BLURay, video server) and monitors 2. Connect the HDMI video source cable to the input port (4K@24Hz, 3840×2160@24/25/30Hz or 1080p) 3. -
Page 8: Troubleshooting
TROUBLESHOOTING Troubleshooting No Video Image Check that all HDMI cables are firmly connected Check that the HDMI displays support either HD4K2K or 1080p Check that the front panel LED is illuminated (either 4K2K or 1080p, depending on the source video) Make sure the Bypass switch is correctly set ... -
Page 9: Safety
PRODUCT SAFETY Safety This product, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. ... -
Page 10: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 11: Appendices
APPENDICES Appendix A — Specifications Item Description Part Number CNV-UHD-HD/SC Chassis dimension (W x D x H) 4.0 in x 4.0 in x 1.0 in (101.6 mm x 101.6 mm x 25.4 mm) Weight 0.6 lbs / 225g Power 100-240VAC, 5V2.5A, external power adapter (included) - Page 12 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
