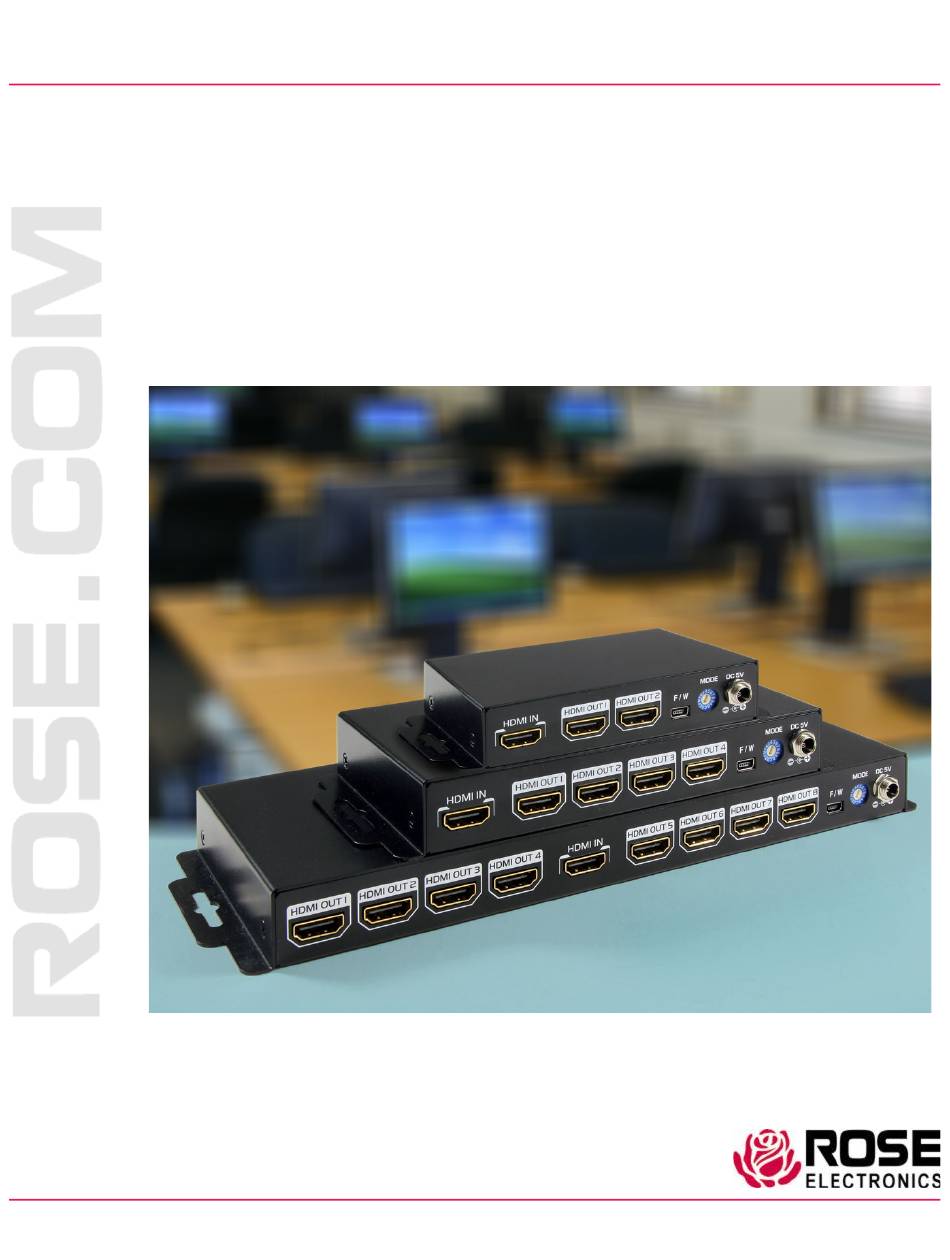

- Page 1 VideoSplitter HDMI 4K60 Ultra-High Definition Video Splitter Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 tech-support@rose.com...
- Page 2 VideoSplitter HDMI 4K60 to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU. This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents Additional Items that may be required Installing the VideoSplitter HDMI 4K60 Mode Dial Selection Installation Procedure EDID Learning Firmware Update Procedure Mode Dial Control Safety Maintenance and Repair Technical Support Figures Figure 1. -
Page 5: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics VideoSplitter HDMI 4K60. The VideoSplitter HDMI 4K60 provides an invaluable and cost-effective method for distributing an HDMI Ultra-HD video source to multiple HDMI/DVI displays. -
Page 6: Package Contents
6ft (2.0 meter) CAB-HDMIMM010 10ft (3.0 meter) These items may be ordered separately from Rose Electronics All references to HDMI cables in this document refer to the maximum recommended distances for each cable type. Maximum recommended cable distances should not be exceeded. -
Page 7: Installing The Videosplitter Hdmi 4K60
INSTALLATION and OPERATION Installing the VideoSplitter HDMI 4K60 Unpack the VideoSplitter HDMI 4K60 and check the contents of the package. Before installing the VideoSplitter in its final mounting position, it is recommended to set up the product on a desktop, connect the video source and monitor and test the product operation. Once this operation has been confirmed, the VideoSplitter can then be fully installed into the operational mounting. -
Page 8: Mode Dial Selection
VideoSplitter HDMI 4K60 - rear panel/connector layout (4 and 8-port units) Item Type Description HDMI IN Connect to an HDMI input source HDMI OUT HDMI out to HDMI displays. Port 1 = EDID learning default port Mini USB Reserved for technical support and firmware update Mode dial Rotary dial for EDID learning settings +5V DC... -
Page 9: Table 2. Mode Selection For The 4-Port Videosplitter
4-Port VideoSplitter: Adjust the mode dial rotary switch to select any of the following operational modes Dial Product Description 4-port F/W update mode 4-port EDID Ultra-HD(4K2K@60) - 24bit 2D video & 7.1ch audio 4-port EDID Ultra-HD(4K2K@60) - 24bit 2D video & 2ch audio 4-port EDID Ultra-HD(4K2K@30) - 24bit 2D video &... -
Page 10: Installation Procedure
Installation Procedure Follow the procedure below to broadcast an HDMI signal to 2, 4 or 8 displays. Switch off all devices including the video source (PC, Player, STB etc). Connect the VideoSplitter HDMI 4K60 to the displays. Connect an HDMI source (such as a Blu-ray Disc player or PC) to the HDMI In port. Make sure the rotary switch is NOT set to “MODE 0”... -
Page 11: Mode Dial Control
Mode Dial Control The “Mode” rotary control button has settings for Ultra-HD EDID (4K2K@60Hz), Full HD EDID (1080p@60Hz), HD EDID (1080p@30Hz, 1080i@60Hz and 720p@60Hz). This rotary control is also used for selecting the EDID Learning and EDID Automatic settings uploading new monitor information. The Mini USB port is used for firmware updates. -
Page 12: Safety
PRODUCT SAFETY Safety The VideoSplitter HDMI 4K60, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. Except where explained in this manual, do not attempt to service this Unit yourself. -
Page 13: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 14: Appendices
APPENDICES Appendix A — Specifications Part Numbers Description VSP-2×HDMI-4K60 2 port VideoSplitter HDMI 4K60 VSP-4×HDMI-4K60 4 port VideoSplitter HDMI 4K60 VSP-8×HDMI-4K60 8 port VideoSplitter HDMI 4K60 CAB-HDMIMM006 HDMI male to male cable, 6ft (2.0m) CAB-HDMIMM010 HDMI male to male cable, 10ft (3.0m) ACC-DVIFHDMIM HDMI(M) to DVID(F) adapter cable CAB-HDMIMM010... - Page 15 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
