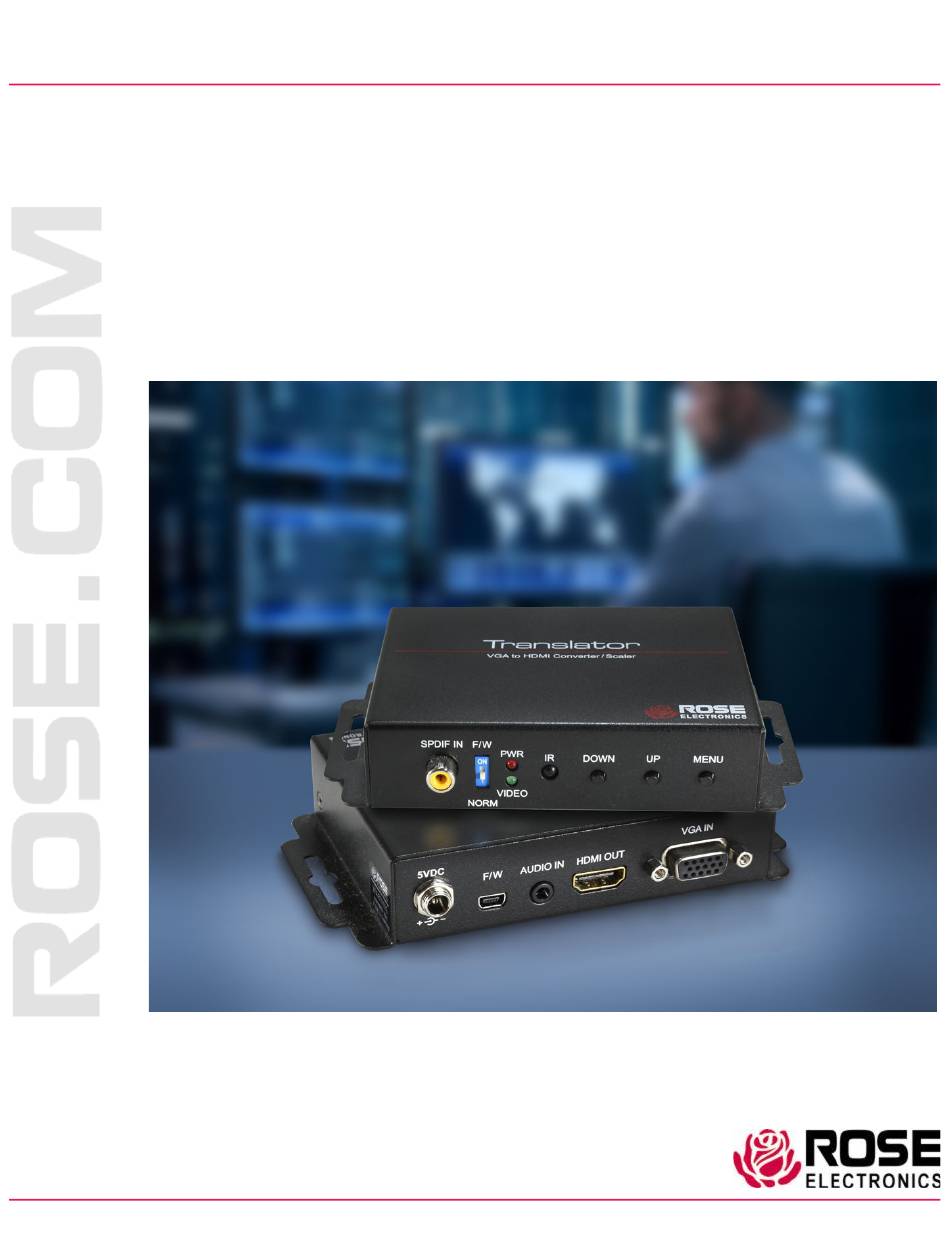

- Page 1 Translator VGA to HDMI VGA to HDMI Converter/Scaler Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 VGA to HDMI Translator to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU. This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents Additional Items that may be required Installing the VGA to HDMI Translator Connecting cables to the VGA to HDMI Translator Controlling the VGA to HDMI Translator Push-Button Control IR Remote Control Remote Control using the Mini USB Port Safety Maintenance and Repair... -
Page 5: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics VGA to HDMI Translator. This product offers an easy and instant approach for converting analog PC video (VGA) with either digital audio (S/PDIF) or analog stereo audio to digital HDMI. -
Page 6: Package Contents
CAB-SPMM010 10ft (3.0 meter) These items may be ordered separately from Rose Electronics All references to HDMI and VGA cables in this document refer to the maximum recommended distances for each cable type. Maximum recommended cable distances should not be exceeded. -
Page 7: Installing The Vga To Hdmi Translator
INSTALLATION and OPERATION Installing the VGA to HDMI Translator Unpack the VGA to HDMI Translator and check the contents of the package. Before installing the Translator in its final mounting position, it is recommended to set up the product on a desktop, connect the PC and monitor and any audio peripherals required, and test the product operation. -
Page 8: Connecting Cables To The Vga To Hdmi Translator
VGA to HDMI Translator – rear panel/connector layout Item Type Description +5V DC Interlocking power jack for 5V DC power supply unit Mini USB Firmware update and control port Stereo audio in Connect to analog stereo audio source HDMI out Connect to an HDMI display with an HDMI male-male cable VGA in Connect to a VGA video source... -
Page 9: Push-Button Control
Push-Button Control Select the OSD menu to display on the HDMI monitor by pushing the menu button on the front panel. Use the up/down buttons to scroll through the menus. Use the menu button to select “enter” OSD Menu and Settings Output resolution Output mode RGB, YCbCr444, YCbCr422... -
Page 10: Ir Remote Control
IR Remote Control The VGA to HDMI Translator operation can be controlled using the included IR controller keypad Figure 4. Infrared remote control Button Function Freeze Freeze video Aspect Ratio Aspect ratio change Blank Blank video Exit Exit OSD Enter Enter key Up key Left... -
Page 11: Remote Control Using The Mini Usb Port
Remote Control using the Mini USB Port To use the remote control via the mini USB port function, first install the included software on a Windows PC using a mini USB connection cable (not included). Once installed, follow the screens below to set-up and control the Translator. Figure 5. - Page 12 Com Port Selection Select the available Comm Port 2. Comm Port Detection Button Click this button to detect the Comm Port 3. Output Setup Button 4. Image Button Translator VGA to HDMI Manual...
- Page 13 5. Adjustment Button 6. System Button In-Sync Info: To view the current input resolution Factory Reset Button Firmware Update Button: Follow the steps outlined in the display below Translator VGA to HDMI Manual...
- Page 14 Follow these steps for the firmware update process: 1. Unplug Mini-USB connector from device 2. Set the Dip Switch to ON [] 3. Connect the device to PC via USB to mini-USB cable 4. Click the FW Update button on software 5.
-
Page 15: Safety
Safety The VGA to HDMI Translator, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. ... -
Page 16: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 17: Appendices
APPENDICES Appendix A — Specifications Part Numbers Description CNV-VGAHDMISC Translator, VGA to HDMI Converter/Scaler CAB-HDMIMM006 HDMI M/M 6ft (2.0m) cable CAB-HDMIMM010 HDMI M/M 10ft (3.0m) cable CAB-CXVMF006 USB-AB 6ft (2.0m) cable CAB-CXVMF010 USB-AB 10ft (3.0m) cable CAB-SPMM006 Audio 3.5mm 6ft (2.0m) cable CAB-SPMM010 Audio 3.5mm 10ft (3.0m) cable... - Page 18 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
