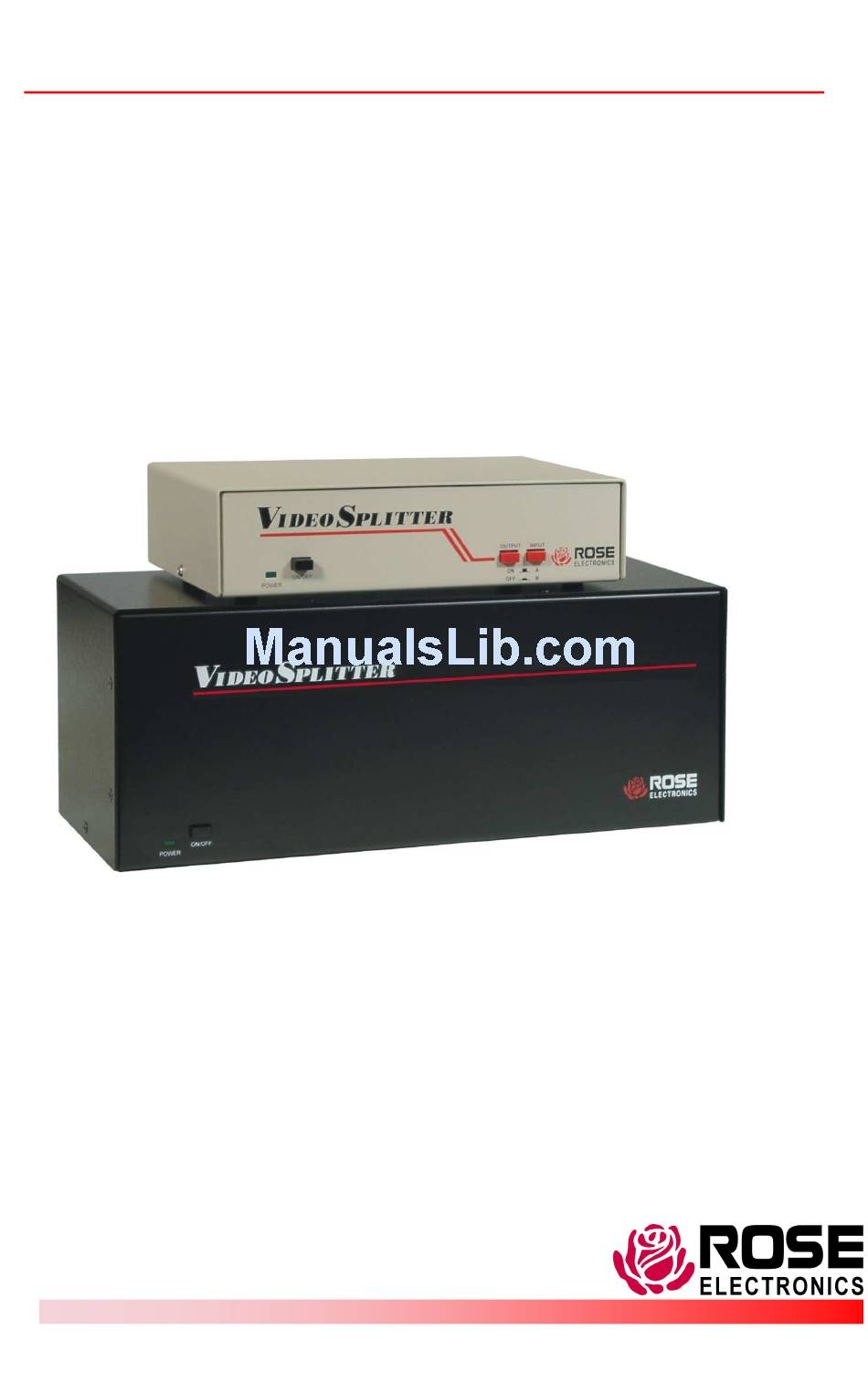

V V V V S S S S IDEO IDEO IDEO IDEO ™ PLITTER PLITTER PLITTER PLITTER INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
Page 2
LIMITED WARRANTY Rose Electronics warrants the Video Splitter™ to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
TABLE OF CONTENTS Contents Disclaimer....................1 About this manual ..................1 Introduction....................1 Features....................2 Installation – Single Unit................5 User operating instructions................. 6 Service Information ..................8 Maintenance and Repair................. 8 Technical Support................... 8 Safety ......................9 Safety and EMC Regulatory Statements..........10 Figures Figure 1.
Thank you for choosing the Rose Electronics Video Splitter™. The Video Splitter is the result of Rose Electronics commitment to providing continued state-of-the-art switching solutions for today’s demanding workplace. The Video Splitter provides a means of splitting the video received from one or two computers and displaying the video on 2, 4, 8, or 16 video monitors.
Electronics or your reseller, so the discrepancy can be quickly resolved. Rose Electronics web site Visit our web site at www.rose.com for additional information on the Video Splitter and other products offered by Rose Electronics that are designed for data center applications, classroom environments, and many other applications.
INSTALLATION Installation – Single Unit The basic installation of a single Video Splitter is an easy and straightforward procedure. Perform the below steps for all computers that will be connected. It is recommended that all computers be powered off. Figure 3. Single Unit configuration The Unit in Figure 3 can be any Video Splitter model.
User operating instructions The following instructions apply to all Video Splitter models Power INPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT Power switch OUTPUT SIGNAL I NPUT SELECT ON/OFF A / B Figure 4. Video gain switches SWITCHES: INPUT SELECT A / B This switch is used to select between the “A”...
Page 11
Removing the switch cover you can see the 3 banks of DIP switches. The default setting is off (all switches down). The settings are adjusted per port sequentially 1 - 4. Each bank adjusts a different color. SW4 = Red; SW5 = Green;...
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container.
SAFETY Safety This Video Splitter been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the Video Splitter should be used with care. To protect yourself from possible injury and to minimize the risk of damage to this Unit, read and follow these safety instructions.
Safety and EMC Regulatory Statements Safety Information Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death.
Page 15
Safety and EMC Regulatory Statements Informations concernant la sécurité Symbole de référence à la documentation. Si le produit est marqué de ce symbole, reportez-vous à la documentation du produit afin d’obtenir des informations plus détaillées. WARNING Dans la documentation, un WARNING indique un danger susceptible d’entraîner des dommages corporels ou la mort.
APPENDICES Appendix A. General Specifications Specification Dimensions 8.85”W x 4.90”D x 2.1”H 22.5 x 12.5 x 5.3 cm. Weight 3lb. / 1.4 kg. Power 117 VAC to 17 VAC 700ma power adapter Connectors Power: DIN5 Video IN: HD15M Video OUT: HD15F Video bandwidth 250 KHz.
Appendix B. Rack mount The optional rack mount kit includes the following items: Two black anodized mounting brackets. Four 6 - 32 x 3/8” flat head mounting screws. To rack mount your Video splitter, attach the two rack mounting brackets to your Unit with the short flange against the Unit using the four screws provided.
