Rose electronics RD160 Manual

Absolute true fidelity dac
Hide thumbs

Advertisement

Quick Links

Download this manual

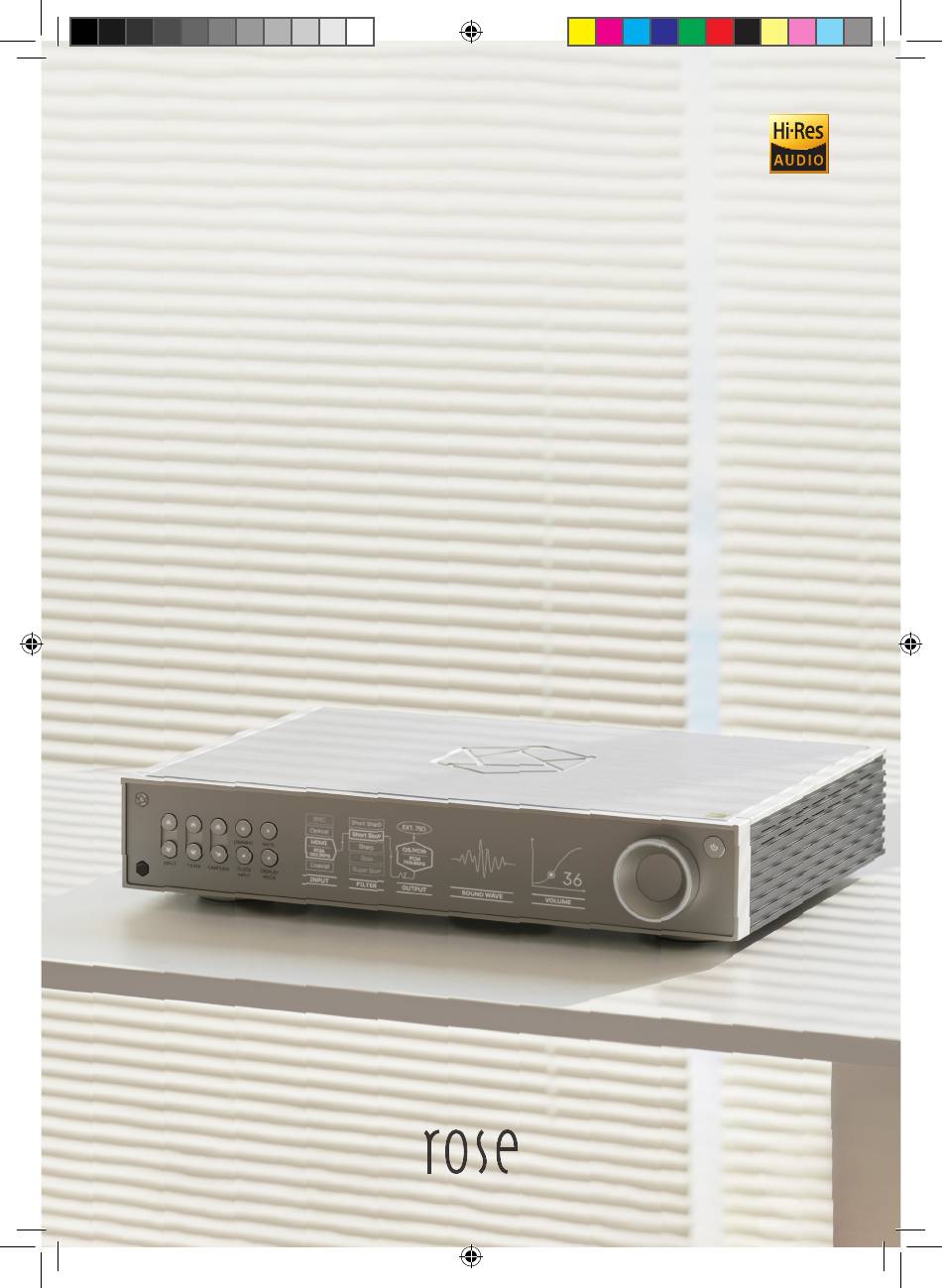

Beyond Audio, HiFi ROSE
RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 1
RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 1
Absolute True Fidelity DAC RD160
- 1 -
2024-08-30 오전 10:37:45
2024-08-30 오전 10:37:45

Advertisement

loading
Need help?

Need help?

Do you have a question about the RD160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rose electronics RD160

Summary of Contents for Rose electronics RD160

  • Page 1 Beyond Audio, HiFi ROSE Absolute True Fidelity DAC RD160 - 1 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 1 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 1 2024-08-30 오전 10:37:45 2024-08-30 오전 10:37:45...
  • Page 2 - 2 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 2 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 2 2024-08-30 오전 10:37:50 2024-08-30 오전 10:37:50...
  • Page 3 - 3 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 3 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 3 2024-08-30 오전 10:37:53 2024-08-30 오전 10:37:53...
  • Page 4 HiFi ROSE Products Absolute True Fidelity DAC RD160 ▪ROSE DPC™ (Digital Processing Core) Module ▪ROSE CIM™ (Completely Isolated & Moduled) Architecture ▪Three Independently Customized Reference Linear Power Supply Units ▪ROSE NRA™ (Noise Reduction Analog) Filter for Flat and Wide Frequency Response ▪High-Precision OCXO Clock for Long-Term Jitter Reduction...
  • Page 5 HiFi ROSE Products Ultimate Network Transport RS130 ▪Linear Power Supply Utilizing Supercapacitor for Battery-Level Noise Reduction ▪High-Precision OCXO Clock for Long-Term Jitter Reduction ▪External Master Clock Input ▪Network Streaming with SSD Caching Playback ▪Fiber Optic Ethernet & USB Connectivity Native DSD 512 10/100/1000 BASE-T Hi-Res Ethernet...
  • Page 6 HiFi ROSE Products Absolute Pure Sound Integrated Amplifier RA180 ▪Class AD Amplifier with Next-Generation GaN FET ▪Multi-Output Component ▪Designed to Play Up to the Super Tweeter Realm ▪Balanced Power Supply ▪Phono Amplifier with Variable EQ Analog In LINE1, LINE2, LINE3(Bypass), BALANCED, PHONO(MM/MC) In/Out Port Analog Out...
  • Page 7 HiFi ROSE Products Complete HiFi Network Streamer RS250A ▪Reference Grade Network Streamer ▪Network Transport + DAC ▪High-Resolution Music Playback (DSD512, PCM 32bit/768kHz) ▪Highly Precise Femto Clock ▪Linear Power Supply for Significant Noise Reduction Native DSD 512 HDMI Out In/Out Hi-Res 32bit/768kHz Port Headphone Out...
  • Page 8 HiFi ROSE Products HiFi ROSE CD Drive RSA780 Series ▪USB Isolator Adopted to Block Motion Noise ▪USB B-Type Port for HiFi Audio ▪900g Weight for Stable CD Playback ▪Minimized Motion Noise with Insulators ▪CD Ripping Features Included Rear USB B-Type Design 152*152*25 mm / 0.9 kg / Color: Silver - 8 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 8...
  • Page 9 HiFi ROSE OS System Innovative ROSE OS System TIDAL Qobuz Enjoy music streaming and videos Enjoy music streaming with with TIDAL’s unique features. Qobuz’s various functions. Support for Supports MQA Full Decoder, so you Hi-Res Audio(24bit/192kHz) means can enjoy high-resolution music. you can enjoy high-resolution music.
  • Page 10 HiFi ROSE Remote App ROSE Connect Remote Application A dedicated Remote App is provided that allows users to conveniently control and smartly manage their ROSE device. The Remote App is supported on various platforms, including the iPhone, iPad, Android phone, and PCs. Control You can freely and conveniently control various HiFi ROSE functions wirelessly.
  • Page 11 OWNER’S MANUAL RD160 Product User Manual - 11 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 11 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 11 2024-08-30 오전 10:38:04 2024-08-30 오전 10:38:04...
  • Page 12 Table of Contents 목 차 Safety Precautions 1. Warnings 2. Precautions Components List Location / Function of Buttons and Ports 1. Front Side of the Product 1-1. Volume Control Function 1-1-1. VOLUME 1-1-2. MUTE 1-1-3. Pre-Out Level Settings 1-2. Input Source Switching 1-3.
  • Page 13 Product Specifications Quality Guaranteed - 13 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 13 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 13 2024-08-30 오전 10:38:04 2024-08-30 오전 10:38:04...
  • Page 14 Safety Precautions 1. Warnings 1. Do not apply excessive force on the product, throw it, or strike it with sharp objects. 2. Children should only use the product under adult supervision to ensure proper usage. 3. Use within a temperature range of 0°C to 40°C and do not use in hot or humid conditions. Install the product in a well-ventilated area, not an enclosed space.
  • Page 15 2. Precautions 1. The contents of the owner’s manual are described based on the default settings of the product. 2. Some contents of this manual may be changed without prior notice to the user in order to improve product performance. 3.
  • Page 16 Components List Main Device Remote Control Power Cable, 1.8m MANUAL User Manual AAA Batteries for Remote Control USB Cable Type-B, 1m - 16 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 16 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 16 2024-08-30 오전 10:38:05 2024-08-30 오전 10:38:05...
  • Page 17 Location / Function of Buttons and Ports 1. Front Side of the Product FILTER Selector LED Dimming Power Switch Button Mute Input DISPLAY MODE Source Selector CLOCK INPUT Remote Main Volume Control Receiver Sampling Selector FILTER Selector You can change the filter settings. LED Dimming You can adjust the brightness of the LED to 6 different levels (including turning the Switch...
  • Page 18 1-1. Volume Control Function • You can connect this product directly to a power amplifier without a preamplifier. • You can adjust the volume by turning the knob on the right, or mute the sound by pressing the MUTE button. 1-1-1.
  • Page 19 1-2. Input Source Switching • You can change the input source of this product using the functions below. • Input source settings include AES/EBU, Coaxial, BNC, Optical, I2S, USB, and SFP. AES/EBU Inputs a digital signal output from an external device via the XLR terminal. Coaxial Inputs a digital signal output from an external device via the Coaxial terminal.
  • Page 20 1-3. D/A Converter Settings • You can change or adjust the settings of the product using the functions below. 1-3-1. FILTER • You can change the filter settings by pressing up or down. • You can set the filter to one of six options: Sharp, Slow, Short sharp, Short slow, Super slow, or Low short.
  • Page 21 1-3-3. CLOCK INPUT • You can change the clock input mode by pressing the button. • If you select Internal, which is the default setting mode, the product will be set to internal clock mode. When receiving the master clock input from an external clock generator, you can select EXT. 50Ω or EXT.
  • Page 22 2. Rear Side of the Product CIRCUIT UNBALANCED BREAKER AES/EBU EXT. CLOCK Input Input TRIGGER COAX. In OPTICAL AUDIO In POWER (AC Input~) SVC PORT Input AUDIO In BALANCED This protection terminal prevents damage to the set due to overvoltage or CIRCUIT BREAKER overcurrent.
  • Page 23 3. Remote Control Power On/Off Used to power the set on or off. Mute Used to mute music. Play / Pause Current Song Switch to Next Filter Switch to Previous Filter Go Back Menu Move Focus Up Move Focus Left 10 Move Focus Right Move Focus Down...
  • Page 24 Product Installation 1. Product Design Method and Recommended Installation Location • This product is designed to be used on a table or shelf. • This product can malfunction during cold weather or hot weather. (Operating temperature: 0 to 40℃, Storage temperature: -10 to 50℃) •...
  • Page 25 • This product includes a removable power cord. Please connect the power cord after connecting all audio cables. Concentric Plug RD160 Caution : When disconnecting the power cord, always disconnect the power outlet first with the power switch off. - 25 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 25...
  • Page 26 3-1. Connection Between Analog Output Port and Power Amplifier or AV Receiver • You can connect the analog (BALANCED/UNBALANCED) audio output of this product to the analog input port of the power amplifier or AV receiver as shown in the figure below. RD160 Power Amplifier, AV Receiver UNBALANCED...
  • Page 27 CD Player CD Player COAXIAL OUT COAXIAL OUT RD160 OPTICAL OUT Caution: Do not input signals other than linear PCM signals such as Dolby Digital, DTS, and AAC to this device. It may cause noise and damage to the speakers.
  • Page 28 3-2-2. AES/EBU • You can connect the digital output port of an external device to the AES/EBU input port of this product as shown in the figure below. RD160 CD Player AES/EBU OUT - 28 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 28 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 28 2024-08-30 오전...
  • Page 29 3-2-3. I2S IN • You can connect the digital output port of an external device to the I2S input port of this product as shown in the figure below. RD160 Player I2S OUT - 29 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 29 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 29 2024-08-30 오전...
  • Page 30 3-3. PC AUDIO Connection • Connect the device as shown in the figure below. RD160 • 3-3-1. After accessing the ROSE website, download the Rose_UsbAudio_[VERSION].zip file in “Downloads” under “Support”. You can access this category by entering the URL in the browser (https://hifirose.com/download) or by scanning the QR code on the right.
  • Page 31 RD160-DAC on your PC as shown below. • 3-3-5. When you set the sound device to RD160-DAC in the system tray area of your PC, you are ready to use the device connected to the USB IN port.
  • Page 32 3-4. SFP AUDIO Connection • You can connect an external digital output device to the SFP AUDIO IN port of this product using an SFP module and optical cable as shown in the figure below. RD160 External Device Module USB 3.0 SFP...
  • Page 33 Trigger Input Voltage : DC 3.3V ~ DC 12V HOT(+Input) Shield / Ground Trigger Output Voltage : DC 12V PIN 3 COLD( Input) RD160 Amplifier CD Player TRIGGER IN TRIGGER OUT - 33 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 33 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 33 2024-08-30 오전...
  • Page 34 • To use the master clock using an external device, you can select “External 50Ω” or “External 75Ω”. ※ Please make sure that the external device has an output impedance value of 50Ω or 75Ω and connect it to the appropriate port. RD160 Master Clock Master Clock EXT.
  • Page 35 ※ If the protruding motion is repeated even after you press the switch, there may be a problem with the internal circuit. Please remove the power cord and request product repair. RD160 - 35 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 35 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 35...
  • Page 36 GND of an external device. ※ Reversing the signal GND connection may increase noise and cause unintended errors. In this case, please remove the signal GND connection line between the devices. RD160 External Device - 36 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 36 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 36...
  • Page 37 - 37 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 37 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 37 2024-08-30 오전 10:38:18 2024-08-30 오전 10:38:18...
  • Page 38 Product Specifications Benchmark Input Sensitivity 0dBF 1kHz Output Impedance 300Ω Output Level 4.5Vrms(RCA), 9Vrms(XLR) THD + N 0.005%(RCA), 0.005%(XLR) (1kHz 0dBF) Signal to Noise Ratio 124dB(RCA), 124dB(XLR) Residual Noise 0.3mV(RCA), 0.4mV(XLR) Stereo Crosstalk -124dB(RCA), -124dB(XLR) (1kHz 0dBF) Frequency 10Hz ~ 20kHz (-0.3dB) Response 10Hz ~ 50kHz (-1.5dB) 10Hz ~ 73kHz (-3.0dB)
  • Page 39 Feature PCM Filter Sharp SharpSlow Short Sharp (default) Short Slow Super Slow Low Short Pre-Out Level 1V~9V Power Input Voltage AC110V-120V~, 220V-240V~, 50/60Hz Standby 0.3W Playback Environmental Operating ˚C 0~40˚C Storage ˚C -10~50˚C Physical Display AMOLED hidden screen Dimension 430(W) × 330(D) × 88(H) mm Weight 10kg Material...
  • Page 40 • Manufacturer/Country of Manufacture: CITECH Co., Ltd. / Republic of Korea • Identification Code of the Certified Company: SYH • Certification No.: R-R-SYH-RD160 Product Website: www.hifirose.com • Get news about the latest events and new product information from ROSE through the newsletter.
  • Page 41 Things to Check Before Contacting the Service Center • Please restart the product if the screen freezes. Press the power button to turn the power off, then turn it back on. • If the switch does not work while the product is in use, it may be because it was exposed to severe static electricity.
  • Page 42 UK PSTI Statement of Conformity We, Citech, Co., Ltd. hereby declares that this product complies with the applicable security requirements set out in Schedule 1 of The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 at the time of this Statement, required by the UK government in the Product Security &...
  • Page 43 Memo - 43 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 43 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 43 2024-08-30 오전 10:38:19 2024-08-30 오전 10:38:19...
  • Page 44 Memo - 44 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 44 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 44 2024-08-30 오전 10:38:19 2024-08-30 오전 10:38:19...
  • Page 45 Memo - 45 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 45 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 45 2024-08-30 오전 10:38:19 2024-08-30 오전 10:38:19...
  • Page 46 Memo - 46 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 46 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 46 2024-08-30 오전 10:38:19 2024-08-30 오전 10:38:19...
  • Page 47 Memo - 47 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 47 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 47 2024-08-30 오전 10:38:19 2024-08-30 오전 10:38:19...
  • Page 48 Memo - 48 - RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 48 RD160_MANUAL OWNERS_(60201P-0012BA)_En_내지_240830.indd 48 2024-08-30 오전 10:38:19 2024-08-30 오전 10:38:19...
