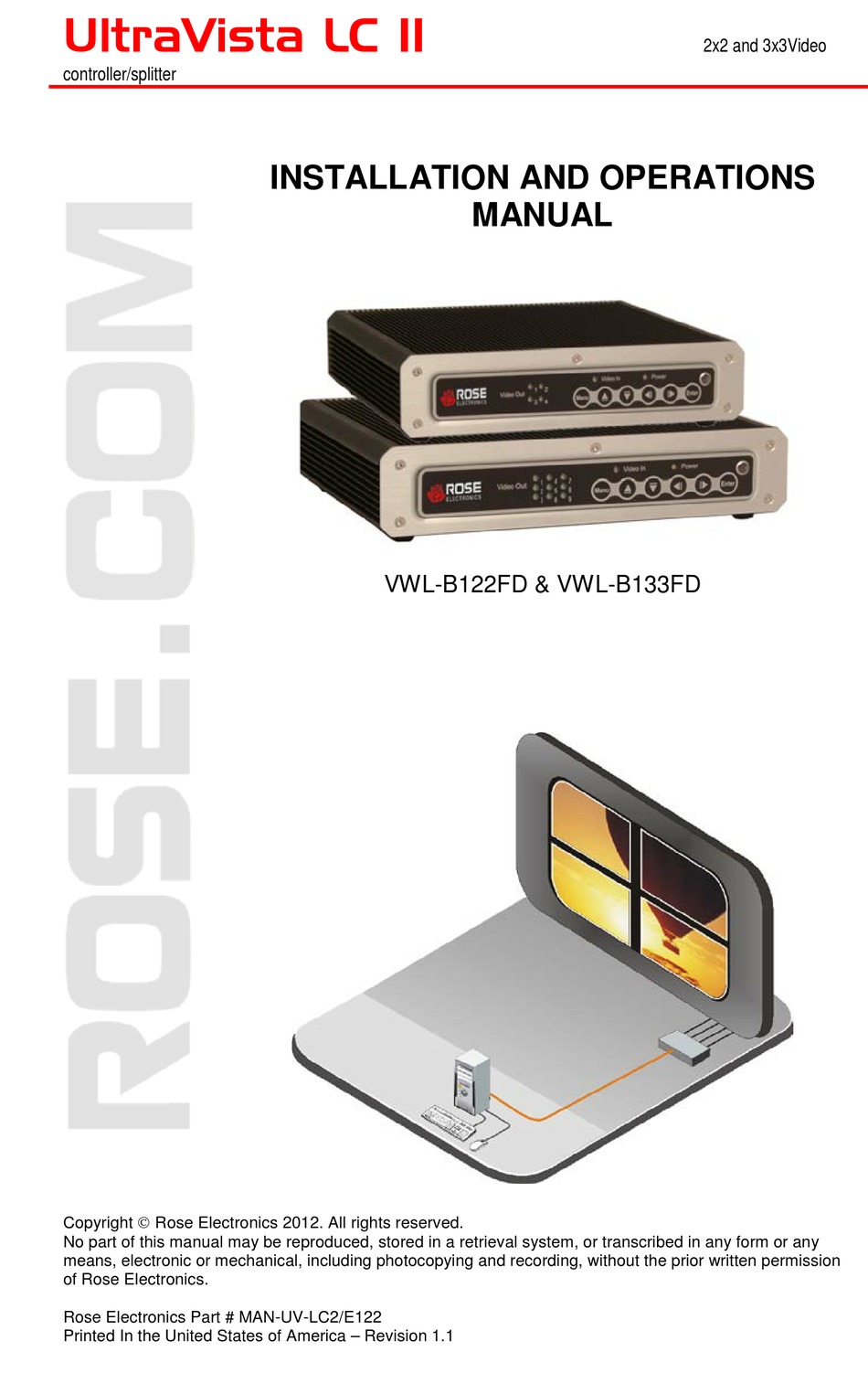

UltraVista LC II
2x2 and 3x3Video
controller/splitter
INSTALLATION AND OPERATIONS
MANUAL
VWL-B122FD & VWL-B133FD
Copyright Rose Electronics 2012. All rights reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any
means, electronic or mechanical, including photocopying and recording, without the prior written permission
of Rose Electronics.
Rose Electronics Part # MAN-UV-LC2/E122
Printed In the United States of America – Revision 1.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rose electronics UltraVista LC II VWL-B133FD
Summary of Contents for Rose electronics UltraVista LC II VWL-B133FD
- Page 1 MANUAL VWL-B122FD & VWL-B133FD Copyright Rose Electronics 2012. All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and recording, without the prior written permission of Rose Electronics.
- Page 3 LIMITED WARRANTY Rose Electronics warrants the UltraVista LC II to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 4 HAZARDOUS MATERIAL DISCLOSURE The details provided below are to ensure that the product is compliant with the Peoples Republic of China RoHS standards. The table below acknowledges the presence of small quantities of certain materials in the product, and is applicable to China RoHS only. Part Name Toxic or Hazardous Substances and Elements Lead...
-
Page 5: Table Of Contents
Page # Disclaimer ...................... 1 System Introduction ..................1 Features ..................... 2 Package Contents ..................2 Rose Electronics web site ................3 Product Registration ................... 3 System Overview ................... 4 Front Panel Indicators / Controls ..............5 Rear Panel Connectors.................. 6 UltraVista LC II Installation ................ - Page 6 Figures Page # Figure 1. UltraVista LC II VWL-B122FD ............4 Figure 2. UltraVista LC II VWL-B133FD ............4 Figure 3. Front Panel Controls ..............5 Figure 4. Rear Panel Controls ............... 6 Figure 5. 2 x 2 Installation................8 Figure 6.
-
Page 7: Disclaimer
INTRODUCTION Disclaimer While every precaution has been taken in the preparation of this manual, the manufacturer assumes no responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting from the use of the information contained herein. The manufacturer reserves the right to change the specifications, functions, or circuitry of the product without notice. -
Page 8: Features
Features Supports single-link DVI video input Single-link DVI video outputs Models: 2x2 – 1 single-link DVI input / 4 single-link DVI outputs 3x3 – 1 single-link DVI-input / 9 single-link DVI outputs Supports video input resolutions up to 1920 x 1200 ... -
Page 9: Rose Electronics Web Site
Rose Electronics web site Visit our web site at www.rose.com for additional information on UltraVista LC II and other products offered by Rose Electronics that are designed for data center applications, classroom environments, and many other access and switching applications. -
Page 10: System Overview
Figures 3 and 4. Figure 1. UltraVista LC II VWL-B122FD Figure 2. UltraVista LC II VWL-B133FD UltraVista LC II Installation and Operations Manual... -
Page 11: Front Panel Indicators / Controls
Front Panel Indicators / Controls Video Out Indicators LEDs indicate which DVI output port has a video signal. OSD menu controls (See OSD section for Menu and menu selections) Video In Indicator LED indicates a valid input video signal is present Power Indicator LED indicates that power is applied to the unit Menu select button... -
Page 12: Rear Panel Connectors
Rear Panel Connectors Power On / Off switch DC IN – 12V DC Sync In / Sync Out – Connects from and to additional units Serial DB9F connector – Connects to an external computer’s serial port for external configuration and control. -
Page 13: Ultravista Lc Ii Installation
INSTALLATION UltraVista LC II Installation Installation of the UltraVista LC II is an easy process, and consists of the following: Install the display panels Mount, if necessary, the video wall controller Connect DVI cables, video input cable and power adapter to the ... -
Page 14: Installing The Lcd Displays
Installing the LCD Displays Mount the monitors as shown in figures 5 and 6. All displays should be identical in size and resolution capabilities. When mounting the displays, keep the horizontal and vertical gaps between displays consistent. Figure 5. 2 x 2 Installation Figure 6. -
Page 15: Bezel Compensation Value Calculation
Bezel compensation value calculation When all the displays have been mounted, measure the bezel width and height, and the viewable width and height as shown in figures 7 and 8. These values will be entered into the OSD to set the gap compensation which will produce a smooth transition from one display to the next. -
Page 16: Figure 8. Bezel Calculation For Vwl-B122Fd
Figure 8. Bezel Calculation for VWL-B122FD UltraVista LC II Installation and Operations Manual... -
Page 17: Mounting The Ultravista Lc Ii Unit
If longer distances are needed from the UltraVista LC II to the video source or to the display monitors, Rose Electronics’ video extender line can support distances up to 400 feet using CATx cabling or 6 miles over fiber cabling. -
Page 18: Using The Built-In Osd Features
OPERATION Using the built-in OSD features To invoke the built-in OSD, press the MENU button on the front panel. The OSD will display on the monitor connected to the DVI output port #1. (Note: All cable connections and power must be applied.) OSD Buttons There are several On Screen Display (OSD) control buttons located on the right side of the front panel. -
Page 19: Osd Menu Structure
OSD Menu Structure Menu Options / Submenu Options Display Output Display Mode Mask -> Horizontal Mask Vertical Mask Mask On / Off System Factory Information Input-> Component Miscellaneous-> OSD-> OSD Timer OSD Rotation Identify Table 2. OSD Menu Structure UltraVista LC II Installation and Operations Manual... -
Page 20: Display Menu
Display Menu Figure 10 shows the Display menu options, which are described below. Figure 10. Display Menu Output Resolution The Output Resolution setting shows the resolution of the video image output. The display output resolution setting options are shown below. Display Mode The display mode configures how the image is displayed on the screen. -
Page 21: Table 3. Display Modes
1 x 1 This is the default mode. The video input is cloned on all the monitors. 2 x 1 The video input is shown on the top two panels and repeated on the bottom two. * 2 x 2 The video input is tiled over all the panels. -
Page 22: Mask Control
Mask Control The mask control compensates for the spaces between monitors and bezel width in the video wall array. The mask control menu (Figure 11) shows for adjustment of the mask. The mask control options are shown and described below. Figure 11. -
Page 23: System Menu
System Menu The System Menu options are shown in Figure 12 and described in subsections below. Figure 12. System Menu Factory Reset Factory Reset returns all the setting to the factory default settings. Information Shows video wall controller version information. Misc. -
Page 24: Information
Information The information screen, shown in Figure 13, displays some basic information about the video wall controller and monitors. Figure 13. Information Menu Model name, firmware version and date Input type Video box ID (defines the current video wall controller in a larger array ... -
Page 25: Miscellaneous
Miscellaneous The Miscellaneous menu, shown in Figure 14, provides the option to go to the OSD setup menu. Figure 14. Miscellaneous menu UltraVista LC II Installation and Operations Manual... -
Page 26: Osd Configuration
OSD Configuration OSD Configuration adjusts the display settings for the OSD Display. The OSD Configuration menu adjusts the rotation of the OSD, and the length and time the OSD remains on the screen. See Figure 15. Figure 15. OSD Configuration menu OSD Timer The OSD Timer sets how long the OSD screen stays on after the last button press. -
Page 27: Remote Controller
Remote controller All UltraVista LC II models are supplied with a remote control. The remote control provides the same functions as the front panel push-buttons. Power: Turns the UltraVista LC II unit On or Off. Menu: Displays the OSD menu on monitor #1, ... -
Page 28: Troubleshooting On The Ultravista Lc Ii
TROUBLESHOOTING Troubleshooting on the UltraVista LC II No image on one monitor If there is no image on one monitor, follow these steps to fix the problem. Check monitor power Step 1: Check that the monitor is turned on. Step 2: Check that the power source for the monitor is turned on. Step 3: Check that the power source has the correct power rating (check panel specifications for details). -
Page 29: Safety
SAFETY Safety The UltraVista LC II has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the UltraVista LC II should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 30: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 31: Table 4. Specifications For Vwl-B122Fd
APPENDICES Appendix A- General Specifications Specification Detail Model Name VWL-B122FD 1. Multiple Viewing Modes 2. Software OSD Main Features 3. Remote Control 4. Auto-scaling of the image to match output resolution Inputs DVI-D Outputs 4 x DVI-D 9 in x 7 in x 1.9 in / Dimensions (W x D x H) 229.5 mm x 178.2 mm x 47 mm 720x350, 640x400, 720x400, 640x480,... -
Page 32: Table 5. Specifications For Vwl-B133Fd
Specification Detail Model Name VWL-B133FD 1. Multiple Viewing Modes 2. Software OSD Main Features 3. Remote Control 4. Bezel masking Inputs One DVI-D single-link Outputs Nine DVI-D single-link 11.6 in x 7.5 in x 2.6 in (2.8 in with rubber feet) / Dimensions (W x D x H) 295 mm x 190 mm x 65 mm (71.4 mm with rubber feet... -
Page 33: Appendix B - Part Numbers
Appendix B – Part Numbers Part Number Description VWL-B122D 2 x 2 Video wall display VWL-B133D 3 x 3 Video wall display UltraVista LC II Installation and Operations Manual... -
Page 34: Figure 16. 2 X 2 Array For Vwl-B-122Fd
Appendix C – Video wall configurations The UltraVista LC II can be set up to support various display arrays; figures 16 through 21 illustrate the more common array setups. Figure 16. 2 x 2 array for VWL-B-122FD UltraVista LC II Installation and Operations Manual... -
Page 35: Figure 17. 4 X 4 Array For Vwl-B122Fd
Figure 17. 4 x 4 array for VWL-B122FD UltraVista LC II Installation and Operations Manual... -
Page 36: Figure 18. 2X 2 Array For Vwl-B133Fd
Figure 18. 2x 2 array for VWL-B133FD UltraVista LC II Installation and Operations Manual... -
Page 37: Figure 19. 2 X 3 Array For Vwl-B133Fd
Figure 19. 2 x 3 array for VWL-B133FD UltraVista LC II Installation and Operations Manual... -
Page 38: Figure 20. 3 X 2 Array For Vwl-B133Fd
Figure 20. 3 x 2 array for VWL-B133FD UltraVista LC II Installation and Operations Manual... -
Page 39: Figure 21. 3 X 3 Array For Vwl-B133Fd
Figure 21. 3 x 3 array for VWL-B133FD UltraVista LC II Installation and Operations Manual... - Page 40 10707 Stancliff Road Phone (281) 933-7673 Houston, Texas 77099 www.rose.com...
