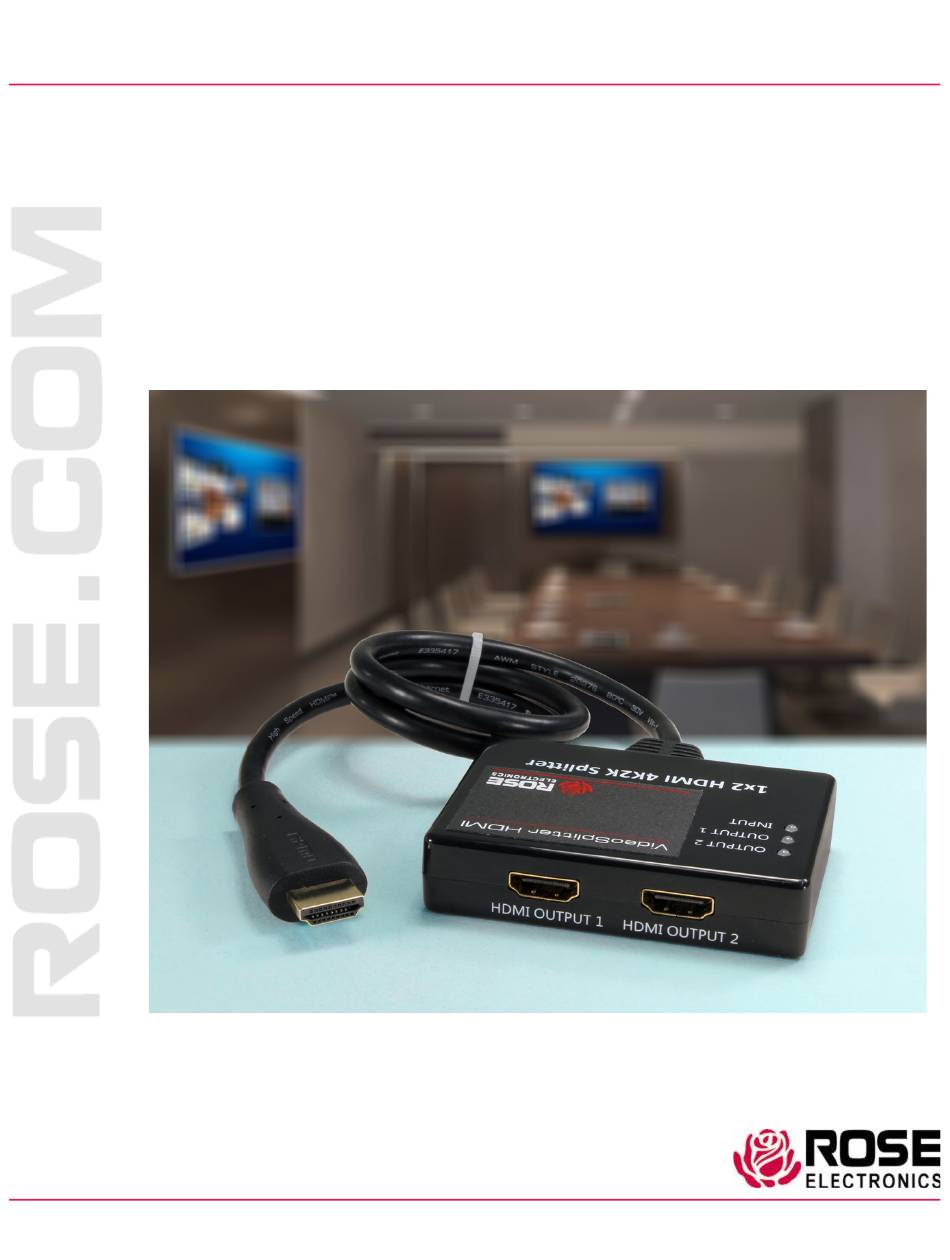

- Page 1 VideoSplitter HDMI 4K PT 4K HDMI Splitter – Pigtail Type Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 tech-support@rose.com...
-
Page 2: Limited Warranty
VideoSplitter HDMI 4K PT to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the unit as set forth below. -
Page 3: Declarations Of Conformity
DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU. This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Table Of Contents
Installing the VideoSplitter HDMI 4K PT Installation Procedure Troubleshooting Safety Maintenance and Repair Technical Support Figures Figure 1. Typical application Figure 1. VideoSplitter HDMI 4K PT cabling layout diagram Figure 2. Description of LED’s and Connectors Appendices Appendix A — Specifications... -
Page 5: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics VideoSplitter HDMI 4K PT, a versatile device that can be used in a variety of applications. It enables simultaneous viewing of a single HDMI high definition video source on two HDMI displays. -
Page 6: Package Contents
■ Optional +5V/500mA external power adapter These items may be ordered separately from Rose Electronics All references to HDMI cables in this document refer to the maximum recommended distances for each cable type. Maximum recommended cable distances should not be exceeded. -
Page 7: Installing The Videosplitter Hdmi 4K Pt
INSTALLATION and OPERATION Installing the VideoSplitter HDMI 4K PT The VideoSplitter HDMI 4K PT is easy to install. Please ensure you are using high-speed HDMI cables for connection of the output displays and do not exceed the recommended HDMI cable distance length. -
Page 8: Installation Procedure
Verify that the 4K video source is 30Hz and not 60Hz. The VideoSplitter does not support 4K60/ Hz video input Try swapping out the HDMI cable with a cable that is known to pass 4K30/Hz video VideoSplitter HDMI 4K PT Manual... -
Page 9: Safety
PRODUCT SAFETY Safety The VideoSplitter HDMI 4K PT like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. -
Page 10: Service And Maintenance
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 11: Appendices
Output Signal 2 × LEDs Environmental Operating Temp 32°F to 104°F (0°C to 40°C) Storage Temp -4°F to 140°F (-20°C to 60°C) Operating Humidity 20-90% relative, non-condensing FCC Part 15, Class B and ICES-003 Approvals VideoSplitter HDMI 4K PT Manual... - Page 12 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
