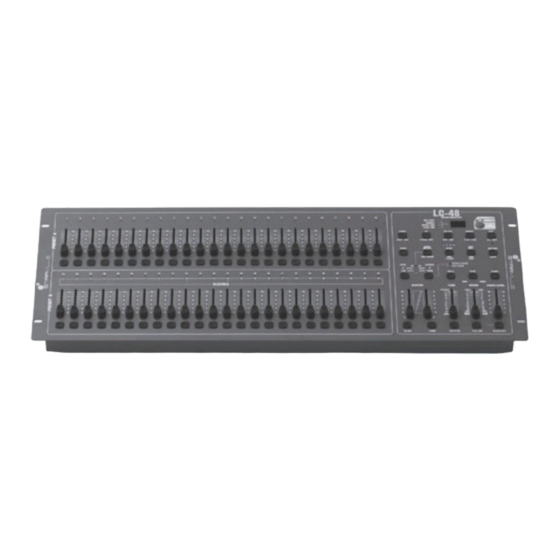

Stairville LC-48 Owner's Manual
  1. Manuals
  2. Brands
  3. Stairville Manuals
  4. Lighting Equipment
  5. LC-48
  6. Owner's manual

Stairville LC-48 Owner's Manual

Light operator
Hide thumbs
Table of Contents

Advertisement

Quick Links

LC-48
Owner's Manual
LIGHT OPERATOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-48 and is the answer not in the manual?

Questions and answers

Related Manuals for Stairville LC-48

Summary of Contents for Stairville LC-48

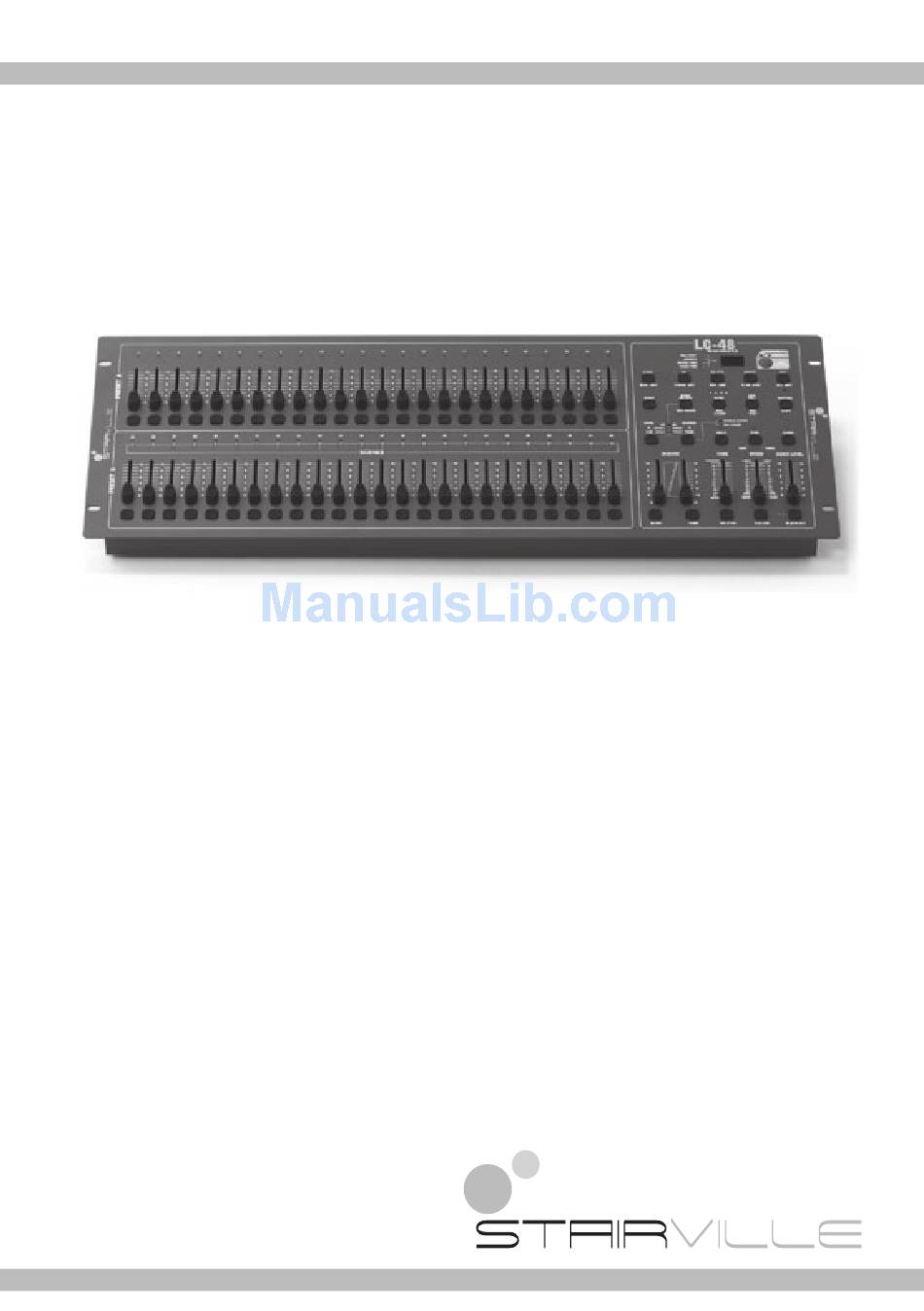

  • Page 1 LC-48 Owner‘s Manual LIGHT OPERATOR...

  • Page 2: Table Of Contents

    Mix Mode .................. 26 Dimmer Display ................. 26 Blind and Home ................. 26 Park .................... 27 Add and Kill ................27 Double Preset ................27 Example ..................27 Technical Specifications ..............28 Disposal ..................28 STAIRVILLE • LIGHT OPERATOR • LC-48...

  • Page 3: Safety Instruction

    Safety instruction You have to carefully read the instruction, which includes important information about the installation, usage and maintenance. Unpack and check carefully there is no transportation damage before using the unit. Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit as stated in this manual.

  • Page 4: Features

    4600 steps utmost and 96 programs could be stored. Various Running Type. You can run the SCENE with Audio, Speed Slider, Standard beat etc. More programs can run synchronously. You can run more programs in Single Mode or Mix Mode simultaneously. STAIRVILLE • LIGHT OPERATOR • LC-48...

  • Page 5: Overview

    Overview Front view www.thomann.de...
  • Page 6 Shows the current activity or programming state. 15. Insert / % or 0-255 Insert is to add one or more steps into a scene. % or 0-255 is used to change display value cycle between % and 0-255. STAIRVILLE • LIGHT OPERATOR • LC-48...
  • Page 7 16. Edit / All Rev Edit is used to activate Edit mode. All Rev is to reverse the chasing direction of all programs. 17. Add or Kill/ Rec Exit In Add mode, multiple scenes or Flash buttons will be on at a time. In Kill mode, pressing any Flash button will kill any other scenes or programs.

  • Page 8: Rear View

    100mV to 1Vpp. 41. Remote Input Black Out and Full On may be controlled by a remote control using a standard 1/4”stereo jack. 42. Fog Machine Connector Connect a fog machine here. STAIRVILLE • LIGHT OPERATOR • LC-48...

  • Page 9: Operation Guide

    Operation Guide Begin Programming Record Enable 1. Press and hold down the Record button. 2. While holding down the Record button, tap the Flash buttons 1, 6, 6 and 8 in sequence. 3. Release the Record button, the Record LED lights up, now you can begin programming your chase patterns.
  • Page 10 3. Create a desired scene using Channel Sliders 1-24. At 0% or DMX 0, these sliders should be at position 0, and at 100% or DMX 255, these sliders should be at position 10. STAIRVILLE • LIGHT OPERATOR • LC-48...
  • Page 11 4. Once the scene is satisfactory, tap the Record button to program the scene as a step into the memory. 5. Repeat steps 3 to 4 until all desired steps have been programmed into memory. You may program up to 1000 steps into memory.

  • Page 12: Editing

    Editing Edit Enable 1. Record enable. 2. Use the Page button to select the page the program you wish to edit is on. 3. Tap the Mode Select button to select CHNS X SCENES. STAIRVILLE • LIGHT OPERATOR • LC-48...
  • Page 13 4. Press and hold down the Edit button. Edit Programs 5. While holding down the Edit button, tap the Flash button that corresponds to the program you wish to edit. 6. Release the Edit button, the relevant scene LED should light, indicating you are in the Edit mode.
  • Page 14 3. Tap the Delete button when you reach to the step you wish to delete, all LEDs will flash briefly indicating the deletion of the step. 4. Continue steps 2 and 3 until all the unwanted steps have been deleted. STAIRVILLE • LIGHT OPERATOR • LC-48...
  • Page 15 5. Tap the Rec Exit button while pressing and holding down the Record button, the Scene LED goes out, indicating the exit of Edit mode. EXAMPLE: Delete the third step of the program on Flash button 25 on Page 2. 1.
  • Page 16 Segment Display. Then you may tap the Flash buttons until you are satisfied with the new scene. 5. Repeat steps 2, 3 and 4 until all the steps have been modified. 6. Exit Edit mode. STAIRVILLE • LIGHT OPERATOR • LC-48...

  • Page 17: Running

    Running Running Chase Programs 1. Tap the Mode Select button to select CHNS X SCENE mode indicated by the red LED. 2. Tap the Page button to select the correct page the program you wish to run is located. 3. Push Master Slider B to its maximum position (fully down).
  • Page 18 RCA Audio jack. 2. Select your program as described above. 3. Tap the Audio button until its LED lights, indicating Audio mode is active. 4. Use the Audio Level slider to adjust the music sensitivity. STAIRVILLE • LIGHT OPERATOR • LC-48...
  • Page 19 5. To return to normal mode, tap the Audio button a second time causing its LED to go out, the Audio mode is disengaged. Running a Program With the Speed Slider 1. Be sure the Audio mode is disengaged, that is, the Audio LED goes out. 2.
  • Page 20 Rec Speed button, tap the Flash button (25-48) that stores the program. 6. The program will then run with the set time or beat when engaged. 7. Repeat steps 4 and 5 to set a new beat time. STAIRVILLE • LIGHT OPERATOR • LC-48...

  • Page 21: Change The Speed Mode Between 5 Minutes And 10 Minutes

    Change the Speed Mode between 5 Minutes and 10 Minutes 1. Press and hold the Record button. 2. Tap the Flash button 5 or 10 three times while holding down the Record button. Tap this button three times 3. The 5MIN or 10MIN should light up indicating the Speed slider is set to run in the 5 or 10 minute mode.

  • Page 22: Setting Midi Out

    1-16, the relevant channel LED lights indicating MIDI OUT channel is set. Exit MIDI Setting Press and hold down the Record button. While holding down the Record button tap the Rec Exit button to exit MIDI setting. STAIRVILLE • LIGHT OPERATOR • LC-48...

  • Page 23: Receiving Midi File Dump

    Receiving MIDI File Dump Tap the Flash button 3 three times while holding down the Record button, the LCD Display reads “IN” indicating the controller is ready to receive MIDI file dump. Tap this button three times Sending MIDI File Dump Tap the Flash button 4 three times while holding down the Record button, the LCD Display reads “OUT”...
  • Page 24 Program master Turn on or off program 1-48 70-117 Channel intensity Activate Channel 1-48 FULL -ON DARK HOLD Turn on or off AUDIO CHNS X SCENES DOUBLE PRESET Mode SINGLE PRESET Mode Step BLACK OUT STAIRVILLE • LIGHT OPERATOR • LC-48...

  • Page 25: Brief Of Main Functions

    Brief of Main Functions Reverse the direction of the scene 1. Reverse the direction of all the scenes: Press the All Rev Button, all the scenes should change their directions. 2. Reverse the chasing direction of all the programs with speed control. Press the Chase Rev Button.

  • Page 26: Single Mode

    2. Press and hold the Blind Button and tap the relative Flash Button you want to temporarily take out of the chase. 3. To return to normal chase again press and hold the Home Button and push the Flash Button you want to return to normal chase. STAIRVILLE • LIGHT OPERATOR • LC-48...

  • Page 27: Park

    Park 1. In CHNS X SCENES Mode, press down the button you can change the chasing mode of programs between Single Mode and Mix Mode. 2. In Double Preset Mode, pressing down this button is equal to pushing Master Slider B to the top. 3.

  • Page 28: Technical Specifications

    Technical Specifications Power Input DC 12 ~ 20 V, 500 mA min. DMX Output 3 pin female XLR MIDI Signal 5 pin standard interface Audio Input 100 mV ~ 1 Vpp Fuse (internal) F0.5A 250 V 5 x 20 mm Dimensions 711 x 264 x 85 mm Weight (appro.)
