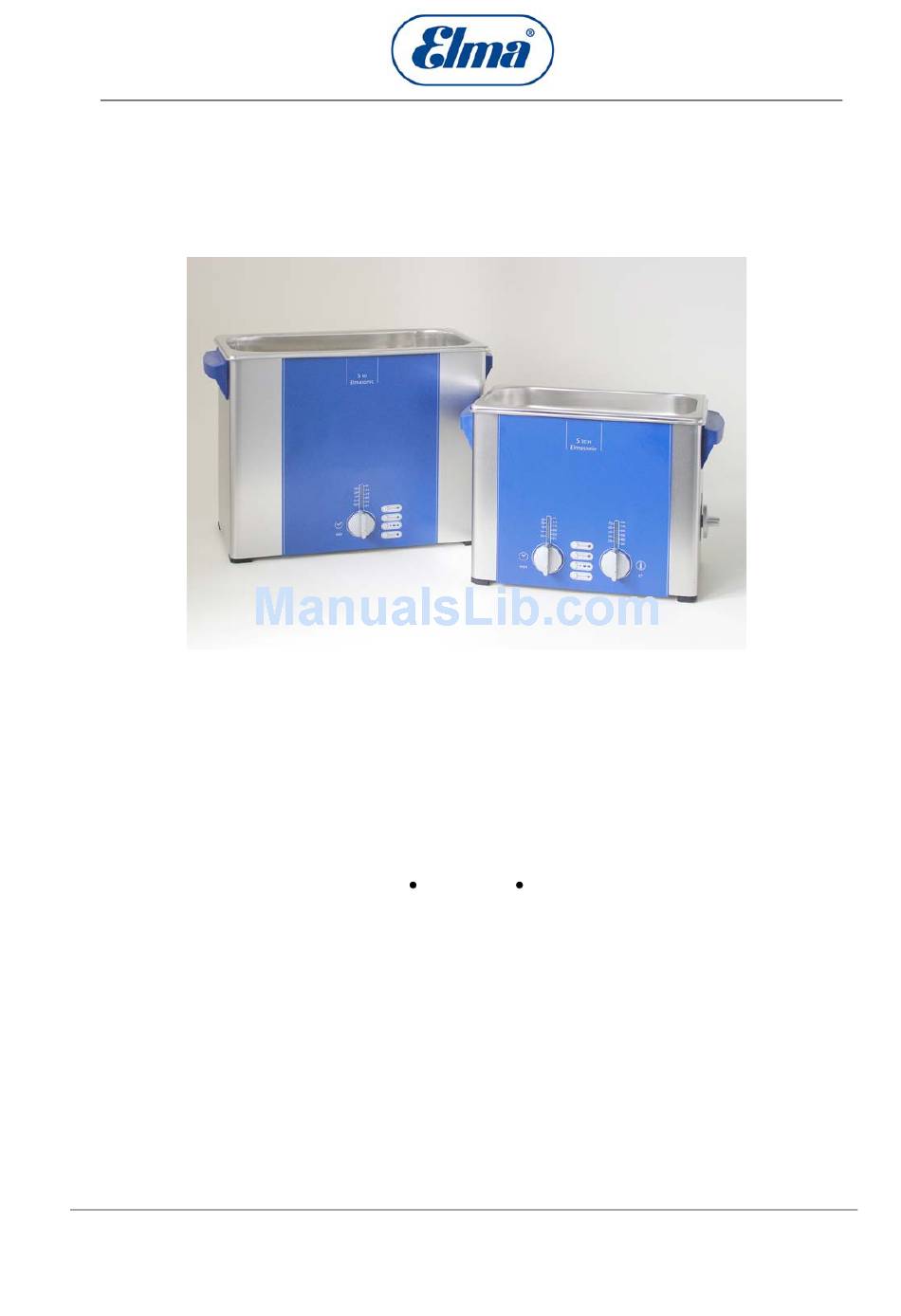

Page 1: Operating Instructions
Operating Instructions Elmasonic S Ultrasonic Cleaning Units english Elma GmbH & Co KG Kolpingstr. 1-7 D-78224 Singen Tel. +49 (0) 7731 / 882-0 Fax +49 (0) 7731 / 882-266 info@elma-germany.com www.elma-germany.com... -
Page 2: Table Of Contents
General............... 4 Important safety warnings .......... 4 Functioning..............5 Ultrasonic cleaning factors..........5 Product description............. 6 Elmasonic S product features ........6 CE conformity ...............6 Delivered equipment .............6 Unit front view / side view ..........7 Unit back view...............8 Turning knob for draining the tank (from S 30) .....8 Description of operating elements S 15 –... - Page 3 Maintenance............. 26 Maintenance / Care.............26 Service life of the transducer tank.......26 Repair .................27 Technical details............ 28 Trouble shooting............ 30 Putting out of action and waste disposal ....32 Manufacturer's contact address......32 © Elma GmbH & Co KG BA/Elmasonic S/GB/0207...
-
Page 4: General
The copy right remains with the editor. Important safety warnings Read before initial operation! The present Elma ultrasonic cleaning unit has been designed Intended use for the treatment of items and liquids only. No cleaning of living beings or plants! The unit must be operated by instructed staff. -
Page 5: Functioning
For saponification and removal of the dirt particles a suitable Cleaning media cleaning agent is required. Elma has a large range of cleaning media on offer. Cleaning chemicals are also necessary to reduce the surface tension. This increases considerably the efficiency of the ultrasonic activity. -
Page 6: Product Description
• automatic mixing during heating-up period*. • plug-in mains supply (Elmasonic S 10 – S 300 H). • electronical turning knobs. • display of both set values and actual values via LED settings (from Elmasonic S 15). -
Page 7: Unit Front View / Side View
Unit front view / side view Illustration 4.4 Front view / side view Elmasonic S 30 H Filling line (not available on Elmasonic S 10 / S 10 H) indicates the recommended maximum filling level. This level should not be exceeded even with cleaning items inside. -
Page 8: Unit Back View
Mains supply socket for quick and easy removal of the mains cable e.g. for transportation purposes Turning knob for draining the tank (from S 30) Illustration 4.6 View turning knob for draining the tank Vertical position: drain open Horizontal position: drain shut BA/Elmasonic S/GB/020706 © Elma GmbH & Co KG... -
Page 9: Description Of Operating Elements S 15 - S 900 H
12h permanent operation. LED display cleaning period indication of set period and remaining period. Not available on Elmasonic S 10 / S 10 H. Turning knob temperature * (applies only for units with heating) temperature range variable in 5°C steps from 30° up to 80°C. -
Page 10: Description Of Operating Elements S 10/ S 10 H
Product description Description of operating elements S 10/ S 10 H Illustration 4.8 View operating elements S 10 H Functions as on Elmasonic S 30 – S 900 H (see section 4.7) with the following exceptions: Ultrasound LED indicates ultrasonic operation... - Page 11 LED blinks and goes towards set temp. as soon as actual temp. = set temp., only the set temp. LED is on if actual temperature > set temperature, the temperature LED starts blinking again © Elma GmbH & Co KG BA/Elmasonic S/GB/0207...
- Page 12 LED blinks keep degas key for 10 minutes and * sweep and degas pressed > 2 sec then switches off cannot be operated at the same time BA/Elmasonic S/GB/020706 © Elma GmbH & Co KG...
-
Page 13: Initial Operation
You can also return the packing to the manufacturer free destination (to your account). Check the Elmasonic S for possible transport damages before Check for transport initial operation. In case of visible damage do not connect the damages unit to the mains. -
Page 14: Connecting The Unit To The Mains
1 phase (220-240 V); 1 N; 1 PE protective earth. conditions Elmasonic S 450 H / S 900 H in countries with 120 V mains: 2 phases (120 V); 1 N; 1 PE protective earth. Diagram: required mains conditions for S 450 H / S 900 H in 120 V mains. -
Page 15: Putting Unit Into Operation
(fluorides, chlorides or bromides). The same applies to NaCl solutions. Use the cleaning chemicals listed in section 8.3. © Elma GmbH & Co KG BA/Elmasonic S/GB/0207... -
Page 16: Placement Of Cleaning Items
Degas the fesh cleaning liquid for approx. 5 - 10 minutes. For Degas key switch-on and switch-off press the degas key. The Elmasonic S units are equipped with an auto degas option. Auto degas When the programmed period has finished, the degas function is automatically switched off (10 min). -
Page 17: Ultrasonic Cleaning Process
For the cleaning of temperature-sensitive items please take into consideration the heating-up of the cleaning liquid. Please observe that the temperature of the cleaning media remains below 42°C when cleaning parts contaminated with fresh protein or blood. © Elma GmbH & Co KG BA/Elmasonic S/GB/0207... -
Page 18: Heating Up Of The Cleaning Liquid (Units With Heating).18
80°C inside the tank. For the recommended cleaning temperature please observe the product information of the used elma clean cleaner. High temperatures! Risk of burning and scalding! Cleaning liquid, cleaning tank, casing, lid, basket and cleaning items can heat up considerably. -
Page 19: Temperature-Controlled Cleaning (Units With Heating)
Ultrasonic cleaning process Temperature-controlled cleaning (units with heating) Elmasonic S units are equipped with an additional temperature- Functioning controlled cleaning function. The cleaning process is automatically started as soon as the required bath temperature is reached. 1. press the on/off key to start the unit. -
Page 20: Starting The Cleaning Process Manually
Caution: Turn the turning knob only anti-clockwise into “0” position! In order to avoid unintended permanent operation, the Elmasonic S units are equipped with a safety switch-off automatically. The unit switches off completely after 12 h permanent operation. In case you wish to continue operation start the unit again. -
Page 21: After The Cleaning
R 1 to R 9 • or E, F+, F, O or R 10, R 11 or R 12 for flammable substances into the stainless steel tank for ultrasonic treatment. © Elma GmbH & Co KG BA/Elmasonic S/GB/0207... -
Page 22: Limitations On Aqueous Cleaners
Observe the safety warnings indicated by the manufacturer of Safety regulations the chemicals (e.g. goggles, gloves, R and S phrases). For queries please contact the manufacturer or your supplier. BA/Elmasonic S/GB/020706 © Elma GmbH & Co KG... -
Page 23: List Of Recommended Cleaning Media
Cleaning media List of recommended cleaning media Elma has a large range of suitable cleaning products on offer developed by chemical engineers in the Elma laboratory. Please contact your supplier to find the most suitable cleaning chemical for your application. -
Page 24: Optics
Neutral concentrate for the aqueous cleaning of disassembled elma chrono clean watches / clocks; removes resin residues and rust. 1:20 Ammoniacal aqueous cleaning concentrate for disassembled elma cleaning- watches / clocks with brightening effect onnon-ferrous parts. concentrate 1:9 BA/Elmasonic S/GB/020706 © Elma GmbH & Co KG... -
Page 25: Industry And Workshop
S1 (e.g. verdigirs), grease, oil, etc. Strong acid cleaning concentrate: removes mineral elma tec clean S2 contaminations such as lime, rust and other oxides, films that can be removed with corrosives, etc. © Elma GmbH & Co KG BA/Elmasonic S/GB/0207... -
Page 26: Maintenance
Lime deposits on the stainless-steel tank can be cleaned gently Care of transducer e.g. with elma clean 40 or elma clean 115C (operate the unit tank with concentrate + water). Check regularly the grid of the air fan at the bottom of the unit Grid of air fan (not existent in all units). -
Page 27: Repair
The manufacturer cannot be held responsible for any damage caused by unauthorised maintenance or repair works on the unit. In case of a break-down of the unit please contact the manufacturer or your supplier. © Elma GmbH & Co KG BA/Elmasonic S/GB/0207... -
Page 28: Technical Details
S 180 H S 300 28,0 20,60 505x300x200 568x340x321 455x250x115 11,0 S 300 H 45,0 35,00 500x300x300 615x370x467 455x270x194 25,0 S 450 H 90,0 75,00 600x500x300 715x570x467 545x450x250 42,0 S 900 H BA/Elmasonic S/GB/020706 © Elma GmbH & Co KG... - Page 29 The choice of the waveform has been matched to the relevant tank size. The signal form of the wave results in a factor 4 or 8 for the ultrasonic peak max., depending on the modulation of the wave. © Elma GmbH & Co KG BA/Elmasonic S/GB/0207...
-
Page 30: Trouble Shooting
Unsatisfactory cleaning no or unsuitable cleaning use suitable cleaning results medium used medium • • cleaning temperature not heat up cleaning liquid sufficient • • cleaning period too short repeat cleaning interval BA/Elmasonic S/GB/020706 © Elma GmbH & Co KG... - Page 31 LEDs of LED ultrasound if fault is again indicated: and LED temperature blink return unit to supplier or alternately ("running light") manufacturer = fault indication programme control © Elma GmbH & Co KG BA/Elmasonic S/GB/0207...
-
Page 32: Putting Out Of Action And Waste Disposal
The unit can be taken to metal and electronics recycling stations or returned to the manufacturer. Manufacturer's contact address Elma Hans Schmidbauer GmbH & Co. KG Kolpingstr. 1-7, D-78224 Singen Phone +49 (0) 7731 / 882-0 +49 (0) 7731 / 882-266 e-mail: info@elma-germany.com...
