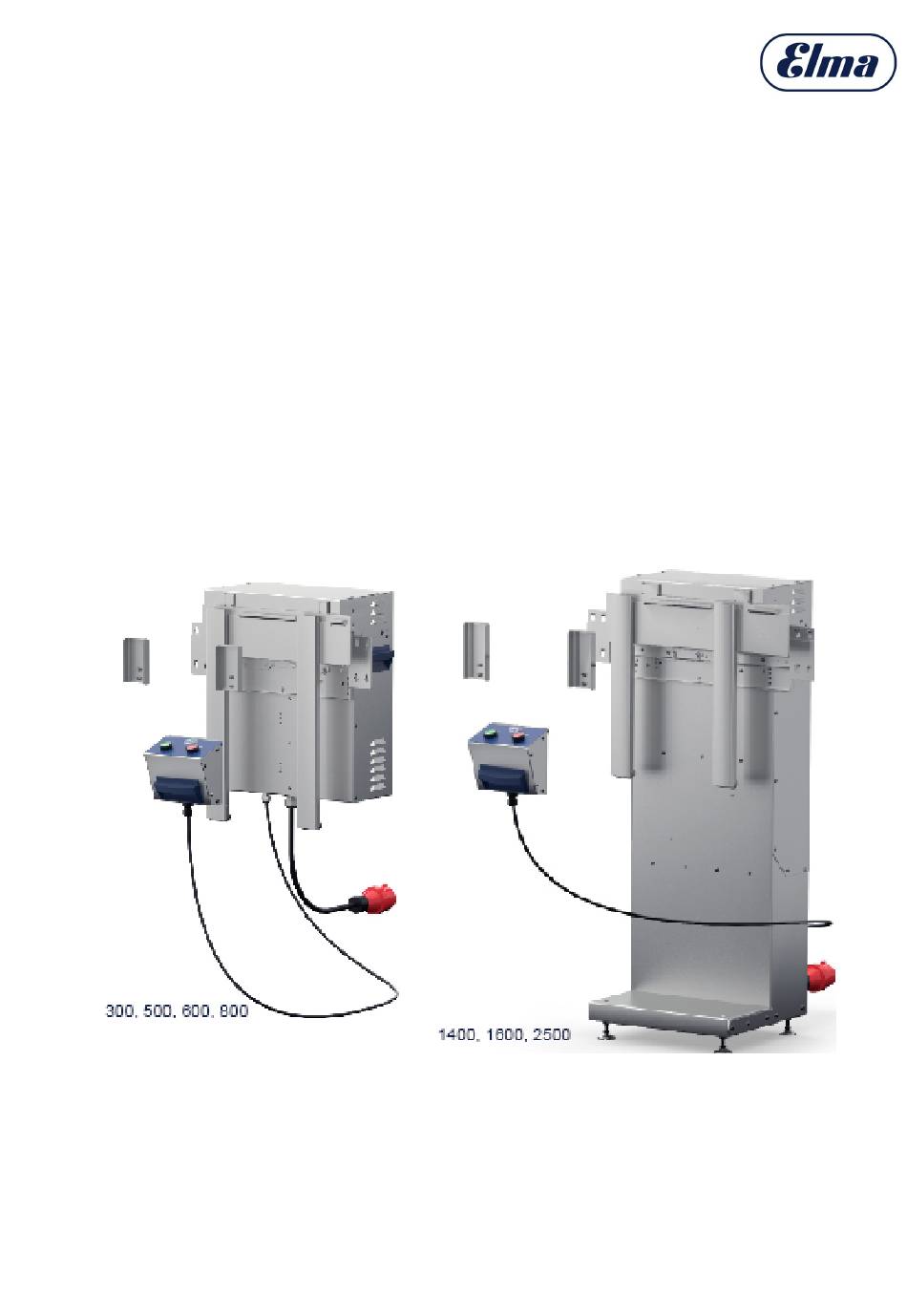

- Page 1 Operating and installation instructions english Elmasonic xtra ST accesories Elma Move Version 1 Item No. 1122282 05/2023...
- Page 2 Copyright © 2023 Elma Schmidbauer GmbH. All rights reserved. Elma Schmidbauer GmbH Technical support: Gottlieb-Daimler-Strasse 17 Tel: + 49 (0)77 31 882 280 78224 Singen (Germany) Email: support@elma-ultrasonic.com www.elma-ultrasonic.com Subject to technical and visual modifications.
-
Page 3: Table Of Contents
Meaning of symbols on the nameplate 11.1 Control unit ........ 19 ............ 6 11.2 Insert a basket ........ 20 Safety information on specific types of 11.3 Starting/stopping Elma Move .... 21 hazard.......... 6 12 Servicing............ 21 4 Technical data 300–800 ...... 7 12.1 Replace the network cable .... 21 5 Technical data 1400–2500 ...... -
Page 4: About This Manual
1 About this manual Elma Schmidbauer GmbH About this manual Please read the manual before using the product. This manual forms part of the IMPORTANT contents supplied with the unit. Keep the manual in an accessible place close to the product, and keep it with the product if it is sold on. -
Page 5: Proper Use
The Elma Move is an electromechanical oscillation device with basket holder and control unit. The oscillation allows for automatic movement of the basket up and down in the cleaning bath of the Elma xtra ST ultrasonic unit for a more even clean. -
Page 6: Meaning Of Symbols On The Nameplate
• Only operate the unit in power circuits that are protected by a fault-current circuit breaker. Mechanical motion The Elma Move moves mechanically and can cause slight to serious crushing injuries. • Do not reach into the unit when mechanical oscillation is active. -
Page 7: Technical Data 300-800
Elma Schmidbauer GmbH 4 Technical data 300–800 Technical data 300–800 Elma Move Unit Mechanical data Max. external dimensions W/D/H 325 / 220 / 695 485 / 220 / 495 Oscillation Max. external 255 / 45 / 255 / 45 /... -
Page 8: Technical Data 300-2500
6 Technical data 300–2500 Elma Schmidbauer GmbH Technical data 300–2500 Elma Move Unit 300–2500 Ambient conditions Temperature °C +5 to +40 (operation, storage) Temperature °C –5 to +60 (transport) Permissible relative % r. h. 80; non-condensing under fluctuating temperatures humidity (operation) Permissible relative % r. -
Page 9: Product Contents
Ø Never put a damaged unit into operation. Ø Dispose of packaging materials that are no longer required in an environmentally friendly manner. Illustration 1: Elma Move product contents Oscillation with control unit sizes 1400–2500 (control unit with magnets on the back to fasten to the unit) Oscillation with control unit sizes 300–800 (control unit with magnets on the... -
Page 10: Description
8 Description Elma Schmidbauer GmbH Description Illustration 2: Description of Elma Move front side 1 Handle, for placing/removing control unit 6 Warning of crushing on/from a metallic surface 2 Start button, green, switches on 7 Carriage roller (basket holder, transparent oscillation... - Page 11 Elma Schmidbauer GmbH 8 Description Illustration 3: Description of Elma Move rear side 11 Oscillation handle (for transport and 13 Oscillation maintenance door installation) CAUTION! Risk of electric shock, must only be opened by service professionals 12 Ventilation slot 14 Nameplate Elmasonic xtra ST accesories...
-
Page 12: Transport And Mount
9 Transport and mount Elma Schmidbauer GmbH Transport and mount CAUTION Heavy loads. Serious injuries to the spine or back muscles. Ø Comply with the health and safety requirements on lifting heavy loads. NOTICE We recommend documenting transport damage with photos. -
Page 13: Install And Connect
Elma Schmidbauer GmbH 10 Install and connect Install and connect CAUTION Heavy loads. Serious injuries to the spine or back muscles. Ø Comply with the health and safety requirements on lifting heavy loads. WARNING Injuries and damage to property in operation Crushing, damage to components Ø... - Page 14 10 Install and connect Elma Schmidbauer GmbH 3. Screw the 8 screws (3) into the ultrasonic unit (2) halfway. 4. Lift the oscillation (5) using the handles (6) and position on the tank edge (4) of the ultrasonic unit, ensuring that the screws (3) go into the holes on the oscillation.
-
Page 15: Installing Oscillation Sizes 1400-2500
Elma Schmidbauer GmbH 10 Install and connect 10.2 Installing oscillation sizes 1400–2500 Tools required: Hex key, pipe wrench or open-end spanner Two persons are recommended for installing the unit. Wear cut-resistant protective gloves. ü The ultrasonic unit (2) is to hand. -
Page 16: Mounting Basket Holder
10 Install and connect Elma Schmidbauer GmbH 5. Attach the control unit (10) on the handle (9) to the front or side (11) on the ultrasonic unit. The magnets on the control unit work on all magnetic surfaces. ðA magnetic stainless-steel adhesive sticker is included for non-magnetic surfaces. -
Page 17: Mounting The Frame
ü The sound-protection cover has been dismounted (see service information, changing the sound- protection cover). ü Installation of the Elma Move (3) is complete. 1. Clean the tank edge of the ultrasonic unit (1). 2. Place the frame (2) on the tank edge. -
Page 18: Adjusting Feet
10 Install and connect Elma Schmidbauer GmbH 3. Screw the frame (2) onto the oscillation (3) on both sides with the screws (4). è Installation of the frame is complete. 10.5 Adjusting feet ü Tools required: Open-end spanner; spirit level 1. -
Page 19: Operate
Elma Schmidbauer GmbH 11 Operate Operate WARNING Risk of injury due to mechanical movements Crushing Ø Switch off oscillation mode before loading or unloading. Ø Only switch on the oscillation in cleaning mode. Ø DO NOT reach into the tank. -
Page 20: Insert A Basket
ü The protector set (4) is installed. CAUTION! Risk of crushing, do not use the basket without the protector set. ü The Elma Move oscillation is switched off. ü The basket (3) is loaded with the parts to be cleaned. CAUTION! Do not exceed maximum total weight for basket! 1. -
Page 21: Starting/Stopping Elma Move
WARNING! Check to ensure that the basket is correctly inserted into the basket holder. 1. Press the Start button to start the Elma Move. ðThe Start button will light up green and the basket will move up and down (oscillate) in the cleaning bath. -
Page 22: Cleaning Ventilation Slots
4. If needed, unscrew and remove the optional frame. 5. Remove the control unit. 6. Unscrew and remove the drive unit. è The Elma Move is disassembled. Disposal CAUTION Once the unit has reached the end of its service life, ensure that the unit and accessories are disposed of safely and correctly: Ø...
